EC Axial Fans for Fresh Air Ventilation and Heat Recovery in Green Buildings

Sustainable building design places increasing emphasis on indoor air quality (IAQ) and energy conservation. Modern green buildings – whether offices, schools, or residential complexes – incorporate mechanical ventilation with heat recovery (MVHR) systems that supply filtered fresh air while recovering up to 90% of the heat from exhaust air. At the heart of these systems are axial fans that move large volumes of air at low pressure with minimal noise and energy use. Yutecfan’s EC axial fans, with their exceptional efficiency and variable speed capability, are the natural choice for architects, HVAC engineers, and building owners striving for LEED, BREEAM, or Passive House certification.

The Role of Axial Fans in MVHR

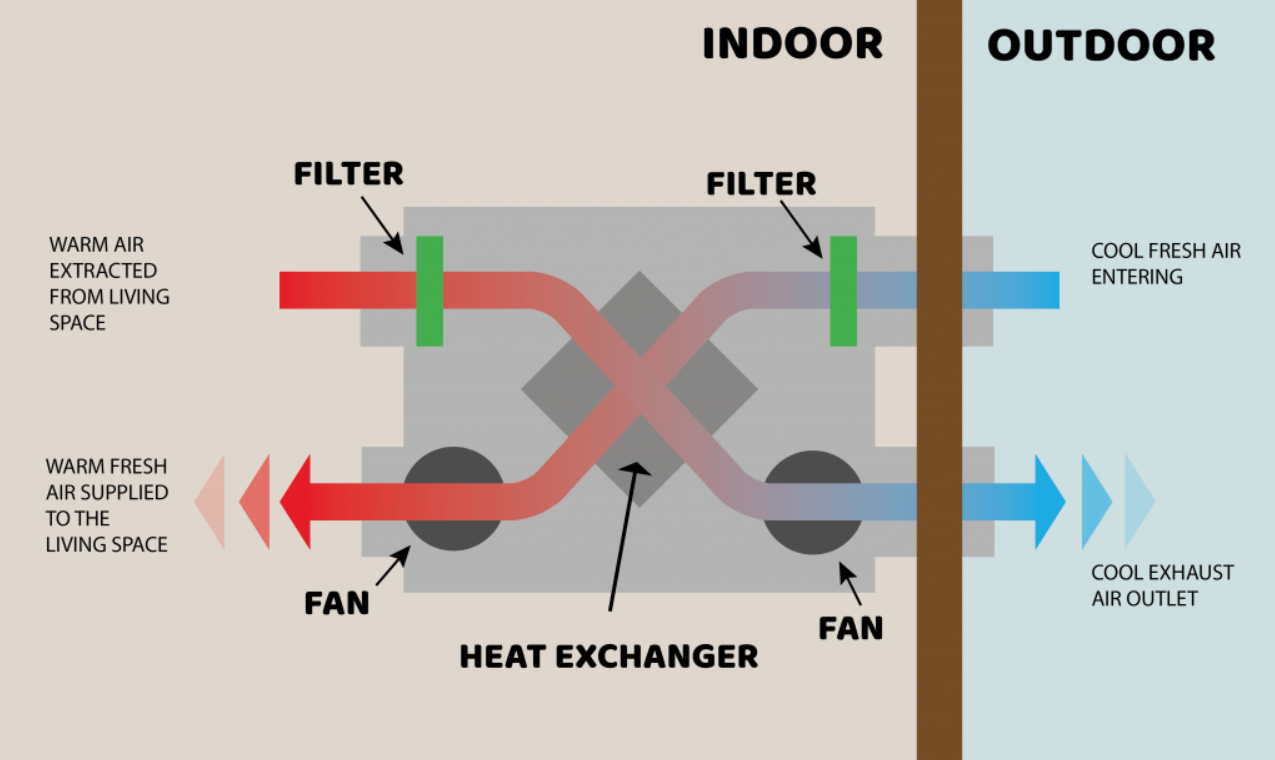

A typical MVHR unit contains two axial fans – one for supply air and one for exhaust air. They must work against the resistance of heat exchangers, filters (F7 or higher), and ductwork, while maintaining precise airflow balance to avoid pressurisation issues. The fans often run continuously, so their energy consumption significantly impacts the building’s overall energy performance. Furthermore, they are often located near occupied spaces, so low noise is paramount.

EC Axial Fans – The Green Building Standard

Yutecfan's EC axial fans offer:

· Exceptional efficiency : With motor efficiencies above 85% across a wide operating range, these fans consume far less power than AC equivalents – often saving 40‑60% in annual fan energy.

· Built‑in intelligence : The integrated controller can accept a 0‑10 V or PWM signal from the building management system (BMS), allowing dynamic speed adjustment based on CO₂ levels, occupancy schedules, or outdoor temperature. This demand‑controlled ventilation (DCV) strategy can cut total ventilation energy by up to 70% during unoccupied periods.

· Quiet operation : Our larger‑diameter fans (300‑400 mm) can be run at low speeds to deliver the required airflow, reducing blade‑pass frequency noise. The EC motor itself produces virtually no electromagnetic or mechanical noise, making it ideal for bedrooms and offices.

Size Diversity for Any Airflow Requirement

· 12038‑17251 mm : Suitable for small apartments, hotel rooms, or single‑room heat recovery units, where airflow needs are modest (50‑200 m³/h) and space is constrained.

· 200‑250 mm : The workhorse for most residential and small commercial MVHR systems, handling 200‑600 m³/h with ease.

· 300‑400 mm : Designed for large office floors, schools, and retail spaces, where airflow rates exceed 1,000 m³/h. Their large swept area allows low‑RPM operation for silent, efficient air movement.

Filter Monitoring and Maintenance

Our EC fans can be configured with a pressure‑sensor input to detect filter clogging. When the pressure differential increases, the fan speeds up to maintain airflow – and simultaneously sends an alarm to the BMS, prompting a filter replacement. This feature ensures consistent IAQ and prevents unnecessary strain on the motor, extending fan life.

Case Study – Passive House Office Building

A 5,000 m² office building in Germany installed Yutecfan 250 mm EC axial fans in its MVHR system. The fans are controlled by a CO₂‑based DCV strategy, running at an average speed of 55%. Compared to a conventional AC system, the annual fan energy consumption was reduced from 18,000 kWh to 8,500 kWh – a saving of over 50%. The noise level in the open‑plan office dropped from 47 dBA to 39 dBA, greatly improving occupant satisfaction.

Additional Features for Green Buildings

· Compliance with ErP Directive : Our fans meet the highest EU energy efficiency standards (IE5).

· Modbus RTU communication : For full integration with smart building platforms, enabling remote monitoring, scheduling, and data logging.

· Customisable speed profiles : We can pre‑program fans with specific curves to match the unique heat exchanger characteristics of your system.

Conclusion

Fresh air ventilation is essential for health and productivity, but it should not come at the cost of excessive energy use. Yutecfan’s EC axial fans provide the ideal balance – high efficiency, intelligent control, and whisper‑quiet operation. With our comprehensive size range, we can supply the right fan for every project, from compact residential units to large commercial air handlers. Explore our green‑building solutions at www.yutecfan.com and let us help you design a ventilation system that is both sustainable and comfortable.
