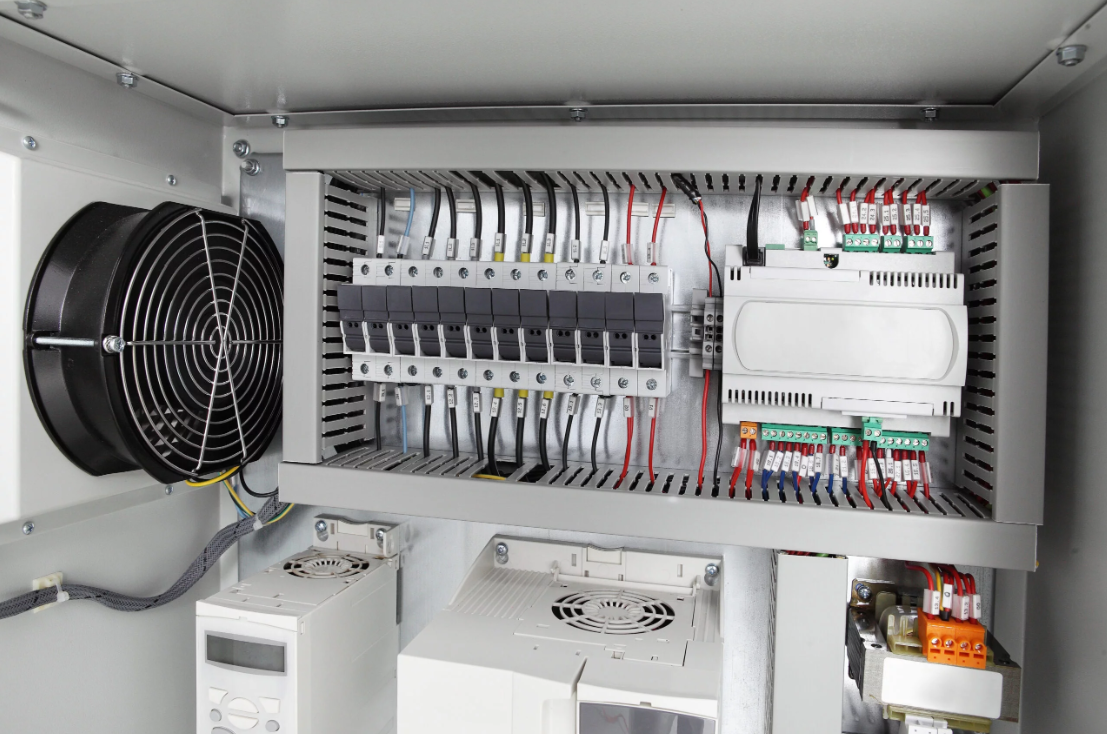

EC Axial Fans for Industrial Control Panels and Power Electronics – Keeping Infrastructure Cool

Industrial automation, motor drives, programmable logic controllers (PLCs), and power supplies form the nervous system of factories, refineries, and utilities. These components are typically housed in sealed control panels or cabinets that accumulate heat from internal losses – and without proper ventilation, temperatures can quickly exceed component ratings, leading to nuisance trips, reduced lifespan, and unplanned downtime. Yutecfan’s EC axial fans are the preferred choice for panel builders and system integrators, offering reliable, energy‑saving, and intelligent airflow in a variety of compact and mid‑size formats.

The Panel Cooling Imperative

Control panels are often located in harsh factory floors – hot, dusty, and subject to vibration. They must be protected from ingress (typically IP54 or higher), yet heat must be expelled. The solution: forced ventilation through filtered grilles or heat exchangers. Axial fans are ideal because they provide high airflow at low to moderate pressure, efficiently exchanging air between the panel interior and ambient.

However, AC axial fans have drawbacks: fixed speed leads to unnecessary noise and energy waste, especially during off‑shift hours; and they lack diagnostic capabilities, so a failed fan may go unnoticed until a critical component overheats and shuts down production.

EC Advantages for Panel Cooling

Yutecfan's EC axial fans – from the tiny 12038 mm to the robust 400 mm – bring:

· Speed control : Panel temperature can be monitored and the fan speed automatically adjusted, reducing average power draw by up to 60% compared to an always‑on AC fan. This also lowers acoustic noise – a significant benefit in open‑plan workshops.

· Soft‑start : Prevents current inrush that can overload shared power supplies, especially in panels with multiple fans.

· Alarm outputs : A tachometer signal or locked‑rotor alarm can be wired to a PLC or remote I/O, alerting maintenance staff to fan failure before any damage occurs.

· Long service life : With high‑quality ball bearings and thermal protection, our fans are rated for >70,000 hours at 40°C, matching the lifetime of most industrial electronics.

Size Selection for Every Panel

· 12038 mm and 17251 mm : Perfect for small junction boxes, compact drive enclosures, and distributed I/O cabinets. Despite their small footprint, they generate impressive static pressure to overcome filter resistance.

· 200‑250 mm : The most common sizes for standard 800‑mm‑wide control panels. They provide ample airflow (up to 2,000 CFM) and can be mounted in push‑or‑pull configurations to create cross‑flow ventilation.

· 300‑400 mm : Used in large MCC (motor control centre) rooms or outdoor kiosks, where high volumes of air must be moved quietly and efficiently.

Environmental Adaptations

We offer:

· IP54 fans with washable filters for dusty environments.

· IP68 sealed fans for wash‑down areas or outdoor panels exposed to rain.

· EMC‑shielded versions to prevent interference with sensitive measurement equipment.

· Various input voltages – 12V, 24V, 48V DC, or integrated AC‑DC models for 110/230 V AC supplies.

Case Example – Automotive Assembly Line

A major car manufacturer upgraded 200 control panels on their assembly line, each fitted with a 17251 mm AC axial fan. They replaced them with Yutecfan EC fans and added a simple thermostat. The fans now run at 40‑70% speed most of the time, cutting total panel cooling energy by 52% and reducing noise from 58 dBA to 49 dBA – significantly improving the working environment. The alarm outputs have also helped the maintenance team identify three fan failures in advance, preventing potential production stops.

Conclusion

For industrial control panels, reliability and efficiency are non‑negotiable. Yutecfan’s EC axial fans deliver both, with the added benefits of smart control and long‑term durability. Our comprehensive size range ensures a drop‑in replacement for almost any existing AC fan. Visit www.yutecfan.com to browse our panel‑cooling catalogue and request a free energy‑saving calculation for your facility.
