EC Axial Fans in EV Charging Stations – Keeping High‑Power Chargers Cool

Electric vehicle (EV) charging stations – especially fast‑chargers delivering 150‑350 kW – generate substantial heat within their power modules, rectifiers, and cables. Without effective cooling, components can overheat, reducing charging efficiency and risking premature failure. EC axial fans from Yutecfan provide the reliable, energy‑saving, and intelligent airflow needed to keep these critical infrastructures operating safely.

The Heat Challenge in Fast Charging

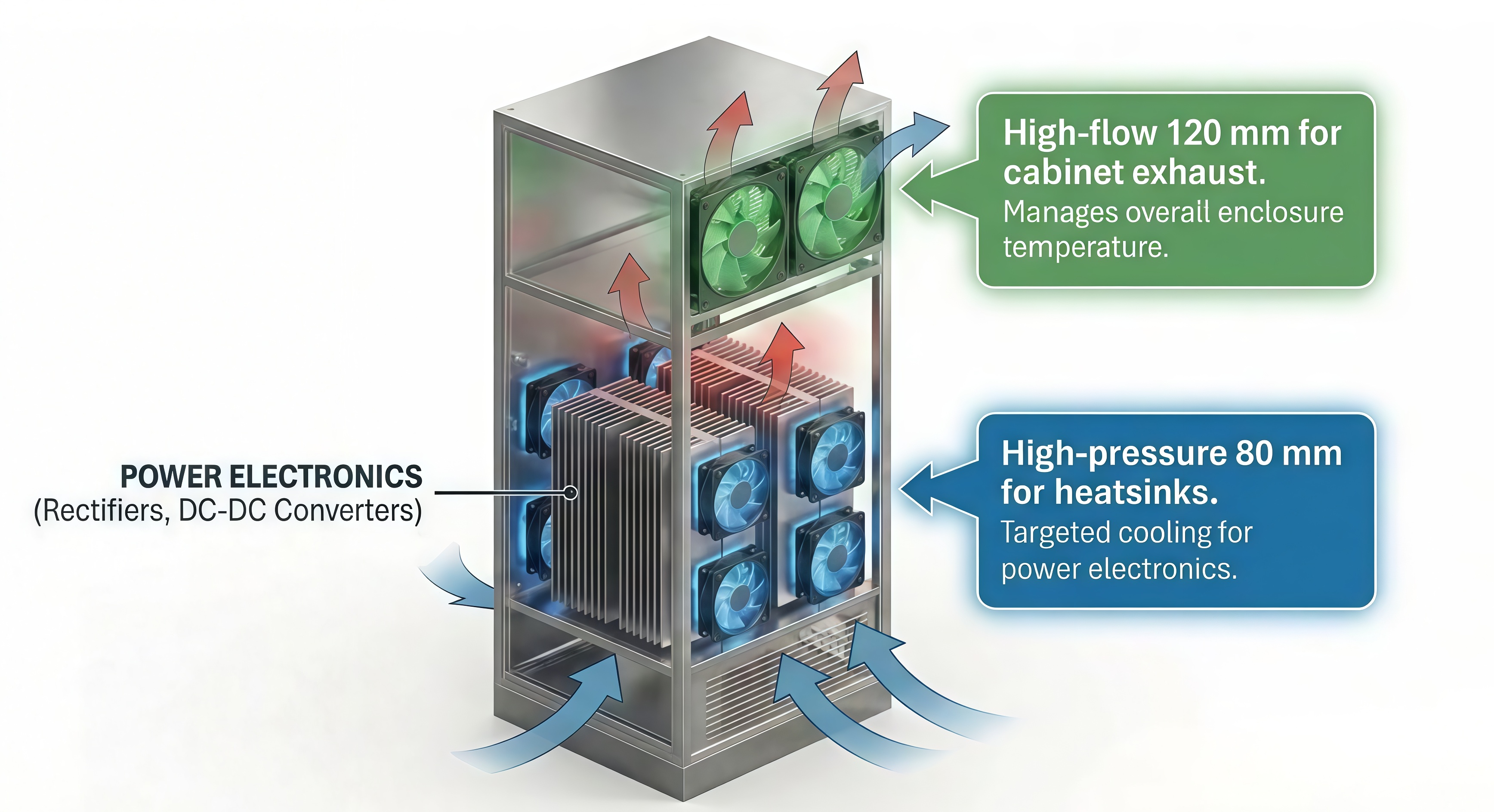

DC fast chargers convert AC grid power to high‑voltage DC, a process that produces significant heat in IGBTs, transformers, and capacitors. These components are housed in weatherproof cabinets that must reject heat to the outside while protecting against rain, dust, and extreme temperatures. The cooling system must overcome the resistance of intake filters, heat sinks, and internal baffles – often requiring fans with high static pressure and long service life.

Traditional AC axial fans run at constant speed, wasting energy during low‑demand periods (e.g., overnight) and creating unnecessary noise in residential or retail locations. They also lack diagnostic feedback, making it difficult to detect fan degradation before it causes a thermal shutdown.

EC Axial Fans – The Intelligent Solution

Yutecfan's EC axial fans (200‑400 mm sizes are commonly used in charging stations) incorporate brushless DC motors with integrated drivers, offering:

· Variable speed control : The fan speed can be modulated based on internal temperature – running slowly during cool nights and ramping up during peak charging sessions. This reduces average energy consumption by up to 50%.

· Soft‑start and overload protection : Prevents inrush current spikes that can trip upstream breakers, and protects the motor from locked‑rotor conditions caused by debris or bearing wear.

· Alarm outputs : Tachometer and fault signals can be fed back to the station’s controller, enabling remote monitoring and predictive maintenance – essential for unattended sites.

Durability for Outdoor Installations

Charging stations are often exposed to harsh weather. Yutecfan offers:

· IP54/IP68 protection against rain, snow, and dust ingress.

· Wide temperature range (-25°C to +70°C) with high‑grade grease and insulation.

· Corrosion‑resistant coatings (epoxy or anodized finishes) for coastal environments.

· Vibration‑resistant mounting with rubber grommets to extend bearing life.

Size Selection for Charger Cabinets

· 200‑250 mm : Ideal for compact wall‑mounted chargers (up to 50 kW), providing balanced airflow with moderate noise.

· 300‑350 mm : Commonly used in 150‑kW stand‑alone chargers, offering high airflow (up to 3,000 CFM) to cool multiple power modules.

· 400 mm : Designed for ultra‑fast chargers (350 kW+) and multi‑unit installations, delivering massive airflow at low rotational speeds for quiet, efficient cooling.

Conclusion

As EV adoption accelerates, reliable charging infrastructure is paramount. Yutecfan's EC axial fans ensure your charging stations stay cool, efficient, and always ready to serve. Visit www.yutecfan.com to explore our EV‑charging‑ready models.
