EC Centrifugal Fans for Cleanrooms – Maintaining Critical Air Quality and Pressure Cascades

Cleanrooms – used in pharmaceutical production, semiconductor fabrication, biotechnology, and hospitals – require meticulously controlled environments with defined particle counts, temperature, humidity, and air pressure. Centrifugal fans are the heart of these HVAC systems, supplying filtered air through HEPA/ULPA filters and maintaining positive or negative pressure cascades between rooms. Any fluctuation in airflow can compromise sterility or product quality. Yutecfan’s EC centrifugal fans provide the precision, reliability, and energy efficiency that cleanroom operators demand.

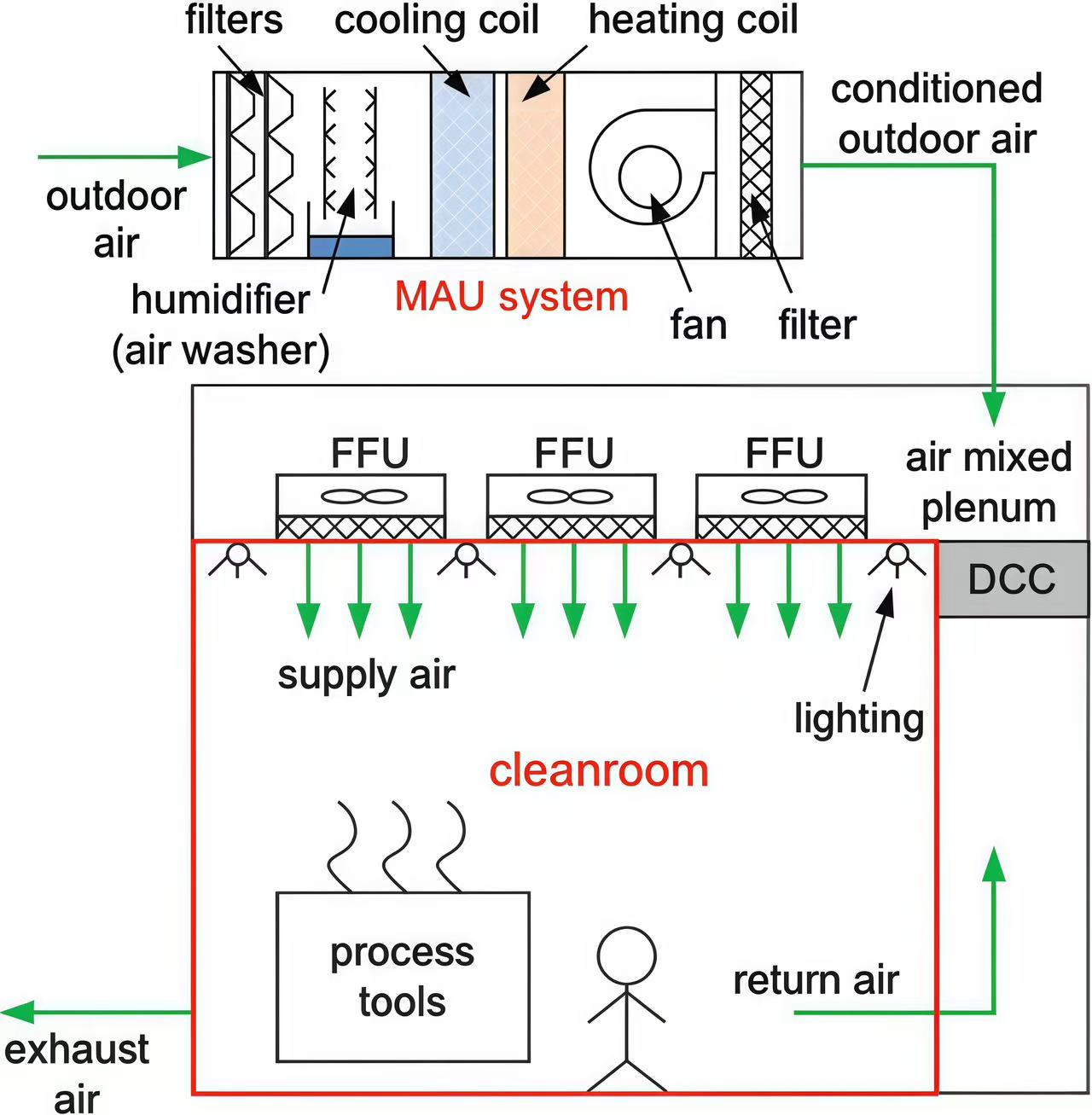

The Critical Role of Fans in Cleanroom HVAC

· Filtered air supply : Air must be drawn through pre‑filters, then HEPA filters (≥99.97% efficiency at 0.3 µm) using high‑pressure centrifugal fans that overcome the significant resistance of these filters (typically 250‑500 Pa).

· Pressure cascades : To prevent cross‑contamination, cleanrooms maintain higher pressure than adjacent corridors. Fans must deliver consistent airflow regardless of filter loading or changes in damper positions.

· Temperature and humidity control : Precise thermal comfort and process stability rely on constant air circulation through cooling and heating coils.

· Air change rates : Pharmaceutical cleanrooms often require 20‑60 air changes per hour, meaning fans must operate continuously and reliably.

Why EC Centrifugal Fans Are Essential for Cleanrooms

Traditional AC fans with variable frequency drives (VFDs) are common, but they have limitations: lower efficiency at partial speed, higher harmonics, and limited communication capabilities. Yutecfan’s EC centrifugal fans offer a superior alternative:

· Outstanding energy efficiency : Cleanroom fans run 24/7, making energy costs a major operational expense. EC motors maintain >85% efficiency across a wide speed range, while AC motors with VFDs lose efficiency at reduced speeds. Our fans typically save 25‑40% energy compared to VFD‑driven AC units.

· Precise speed control : With closed‑loop feedback (0‑10 V or Modbus), the fan can maintain a set airflow or pressure with ±1% accuracy, compensating for filter loading without manual adjustments.

· Built‑in diagnostics : Tachometer and current monitoring allow the BMS to detect filter saturation (increased current) or belt wear (if applicable), enabling timely maintenance and avoiding sudden breakdowns.

· Low vibration and noise : Dynamic balancing and smooth EC operation minimise vibration, which is critical for sensitive manufacturing processes (e.g., electron microscopy, wafer lithography).

Hygienic and Clean‑Compatible Design

Cleanrooms demand fans that do not shed particles and can withstand frequent cleaning. Yutecfan offers:

· Epoxy‑coated or stainless‑steel impellers to resist corrosion and prevent particle generation.

· Sealed motors (IP54/IP68) to prevent dust ingress and allow wipe‑down with disinfectants.

· Low‑outgassing materials to meet ISO Class 5‑8 standards.

· Optional HEPA‑filter‑mounted designs with integrated flanges for direct installation in ceiling plenums.

Size Options for Cleanroom Systems

· Forward‑curved 108‑180 mm : Used in small laminar flow cabinets, biosafety hoods, and mini‑environments.

· Backward‑curved 133‑400 mm : The primary choice for central AHUs serving cleanrooms. The 190‑310 mm sizes are most common for ISO 7‑8 areas, while 355‑400 mm fans handle large‑scale pharmaceutical production halls.

· Double‑inlet 133‑150 mm : Ideal for modular cleanroom fan‑filter units (FFUs), where a compact, high‑pressure blower is mounted directly above the filter grid.

Case Study – Pharmaceutical Fill‑Finish Facility

A sterile injectable facility replaced 18 AC centrifugal fans (280 mm) in their AHUs with Yutecfan EC fans. They implemented a pressure‑based control strategy that maintained cleanroom differential pressure within ±2 Pa. The EC fans reduced total HVAC fan energy by 36% – saving over 90,000 kWh annually. The built‑in alarm also notified maintenance when two fans showed increased current draw, indicating filter clogging, which allowed replacement during scheduled downtime rather than causing an unplanned production halt.

Conclusion

Cleanroom and pharmaceutical applications leave no room for error. Yutecfan’s EC centrifugal fans deliver the precision, efficiency, and clean‑compatible design that ensures regulatory compliance and product integrity. With our extensive size range and customisation options, we can provide the perfect solution for any cleanroom grade. Visit www.yutecfan.com to request a cleanroom fan selection guide and performance validation data.
