EC Centrifugal Fans in Railway and Mass Transit Systems – Reliable Climate Control&Equipment Cooling

Railway vehicles – high‑speed trains, metro cars, light rail, and locomotives – require sophisticated climate control systems to ensure passenger comfort and protect onboard electronics. Centrifugal fans are integral to HVAC units, traction motor cooling, battery thermal management, and brake resistor ventilation. These fans must operate in a demanding environment: high vibration, wide temperature swings, dust, and occasional moisture. Yutecfan’s EC centrifugal fans offer the durability, efficiency, and precise control needed for modern rail transit.

Key Applications Across Rolling Stock

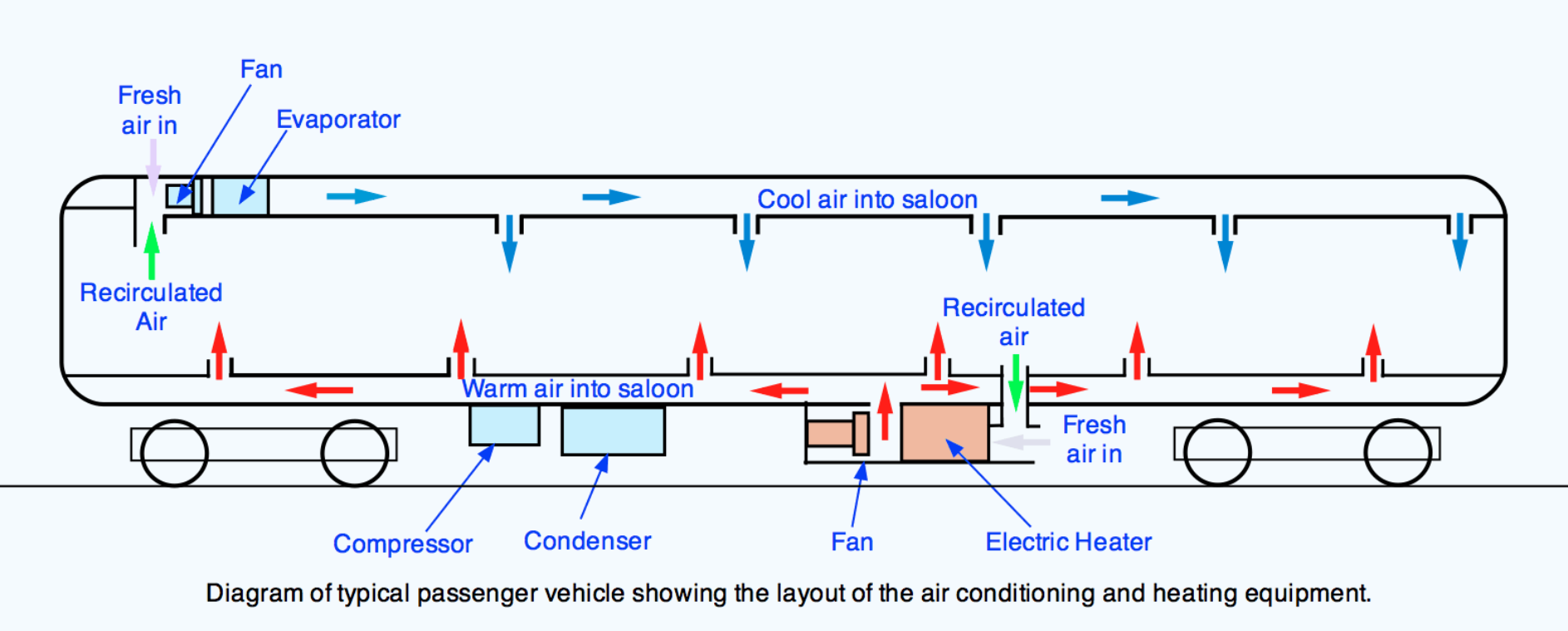

· Passenger HVAC : Trains need to maintain comfortable temperatures regardless of outside conditions. Centrifugal fans in roof‑mounted or under‑floor HVAC units circulate air through evaporator and condenser coils. The fans must be compact, quiet, and capable of varying speed to match cooling/heating demand.

· Traction motor cooling : Electric traction motors generate significant heat during acceleration and regenerative braking. Forced air cooling using centrifugal blowers is essential to prevent motor overheating and ensure reliable operation.

· Battery and energy storage cooling : Many trains have onboard batteries for emergency power or hybrid systems. These require constant airflow to maintain optimal temperatures and prolong battery life.

· Brake resistor ventilation : Dynamic braking resistors dissipate energy as heat; centrifugal fans extract this hot air to prevent thermal damage to nearby components.

· Equipment cabinet cooling : Onboard control units, inverters, and converters generate heat that must be removed by compact, high‑pressure fans.

EC Advantages for Railway Systems

Railway operators face strict energy efficiency targets and must minimise noise in urban areas. Yutecfan’s EC centrifugal fans are perfectly aligned with these goals:

· Energy savings : HVAC loads vary with passenger numbers and external temperatures. EC fans can modulate speed dynamically, cutting energy consumption by up to 50% compared to fixed‑speed AC fans – a significant reduction in the overall power demand of the train.

· Low noise : Our aerodynamically optimised impellers and smooth EC motor operation reduce tonal noise, critical for passenger comfort in quiet carriages.

· Wide operating range : Our fans are designed for -40°C to +85°C ambient, with special greases and insulation to handle extreme cold and heat.

· Vibration and shock resistance : We use reinforced housings, high‑strength impellers, and double‑shielded bearings to withstand the mechanical stress of rail travel.

Durability and Maintenance

Railway fans are often inaccessible during service, so reliability is paramount. Yutecfan offers:

· Long‑life bearings rated for >80,000 hours.

· Sealed motors (IP54/IP68) to prevent dust and moisture ingress.

· Integrated speed feedback for condition monitoring, allowing maintenance crews to detect anomalies early.

· Customised mounting flanges to fit existing train designs.

Size Selection for Rail Applications

· Forward‑curved 108‑140 mm : Ideal for small cabinet cooling and local spot ventilation.

· Backward‑curved 155‑220 mm : Used in auxiliary converters and battery cooling units.

· Backward‑curved 250‑400 mm : The primary choice for main HVAC blowers and traction motor cooling fans, delivering high airflow (up to 8,000 CFM) at moderate pressures.

· Double‑inlet 133‑150 mm : Perfect for compact under‑seat or ceiling‑mounted air conditioning units.

Case Study – Metro Car HVAC Upgrade

A city metro operator replaced the AC centrifugal fans in 50 train cars (each car had two 355 mm fans for the HVAC system) with Yutecfan EC versions. By linking fan speed to a CO₂ sensor and cabin temperature, the average fan speed dropped from 2,800 to 2,000 RPM. This reduced total energy consumption per car by 44%, translating to annual savings of over 120,000 kWh across the fleet. The noise level inside the cabins decreased by 5 dB(A), significantly improving passenger satisfaction.

Conclusion

Rail transit demands fans that combine efficiency, quietness, and ruggedness. Yutecfan’s EC centrifugal fans meet these requirements with a comprehensive size range and customisation options for every rolling stock application. Visit www.yutecfan.com to see our railway‑approved products and request an engineering consultation.
