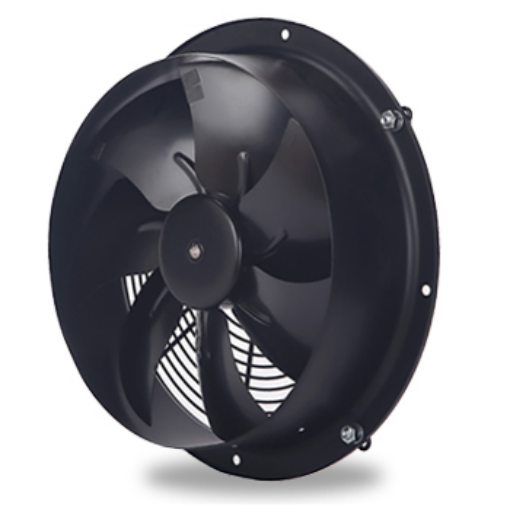

YUTEC 024VAC 048VAC 215mm 92motor axial fan with metal bracket for EC charger
- Fan model: YUTEC-A215DC92-024U-VR-G02;YUTEC-A215DC92-048U-VR-G02
- Rated Voltage: 024VDC;048VDC
- Rated Current: 3.6A; 1.8A
- Rated Power: 86W
- Rated Speed: 3100RPM
- Air Flow: 1520M3/H
- Air Pressure: 300Pa
- Noise Level:69dBA
- Frequency: 50/60 Hz
- Weight:2.3KG
- Brand: YUTEC
Description

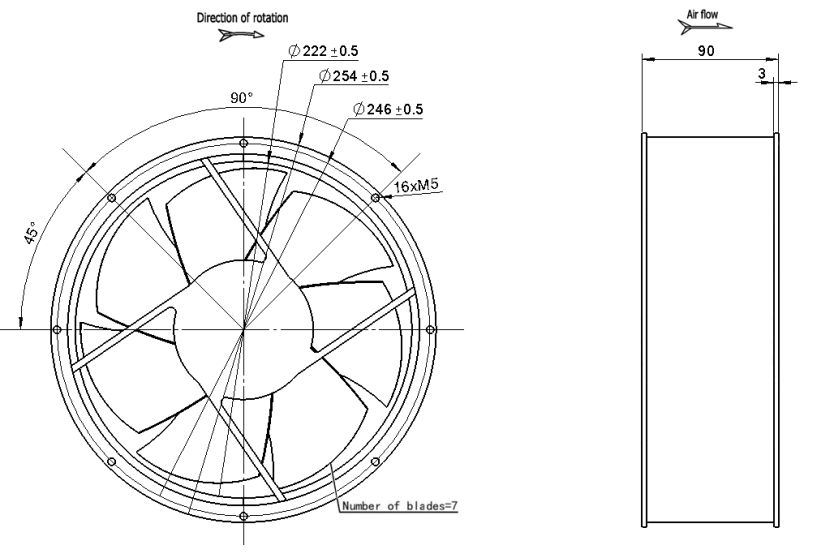

Dimensional drawing:

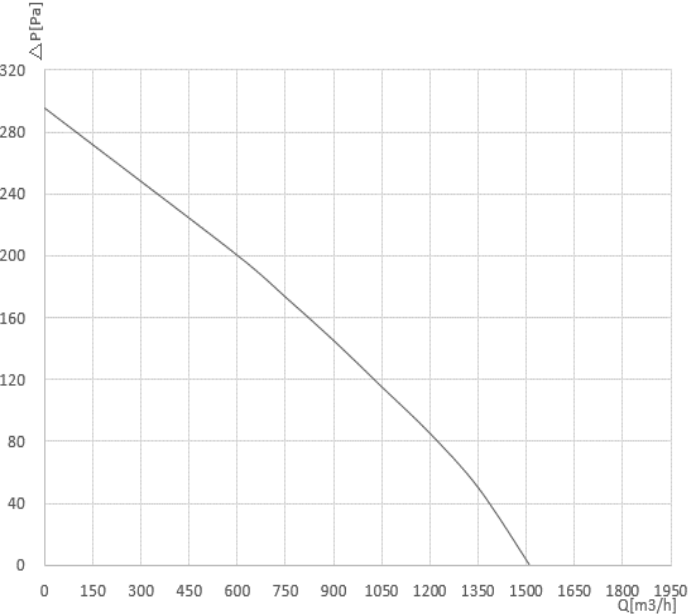

Performance Curve:
Connection Diagram:
Description：
This 215mm DC axial fan is a high-performance cooling and ventilation solution, available in 24V DC and 48V DC versions to match various industrial and electrical applications. With a standard diameter of 215mm, it delivers stable and strong airflow, efficiently dissipating heat for electrical cabinets, power supplies, inverters, automation equipment, and mechanical systems.
Designed for reliable long-term operation, it features low power consumption, low noise, and minimal vibration. The robust structure ensures durability and stable performance even under continuous working conditions. Its standard size and flexible voltage options make installation easy and widely compatible.
Combining high cooling efficiency, energy savings, and stable operation, this 215mm 24V/48V DC axial fan is an ideal choice for equipment cooling, ventilation, and thermal management in various industrial fields.
Specifications：
Brand Name | YUTEC |
Impeller Material | Steel and coated in black |
Motor Type | BLDC External Rotor Motor |
Type of Protection | IP44 |
Insulation Class | Class B |
Speed Control | 0-10VDC/PWM |
Bearing | Ball Bearing |
Signal Output | FG |
Life Expectance | 50,000 Hours |
Electrical Protection | Locked Rotor Protection |
Reverse Polarity Protection | |
Over Voltage Protection | |
Soft Start |
Competitive Advantage:
1. Long Service Life
Designed for durability, these DC axial fans offer a long service life with stable performance. High-quality components and robust construction resist wear, fatigue, and overheating. The 24V and 48V DC designs lower internal stress and heat generation, further extending product lifetime. Users benefit from reduced replacement frequency, lower maintenance costs, and improved reliability for 24-hour industrial equipment cooling and ventilation.
2. Stable & Reliable Performance
The DC axial fan delivers extremely stable airflow and speed under 24V and 48V power supplies. It maintains consistent performance even under long hours of operation, avoiding fluctuations common in inferior fans. With anti-jamming and stable starting capabilities, it ensures reliable cooling for power supplies, inverters, electrical enclosures, and mechanical equipment. This stability protects devices from overheating and improves system safety.
