YUTEC 115VAC 230VAC 200mm 92motor axial fan with high speed without metal bracket for EC charger

Description

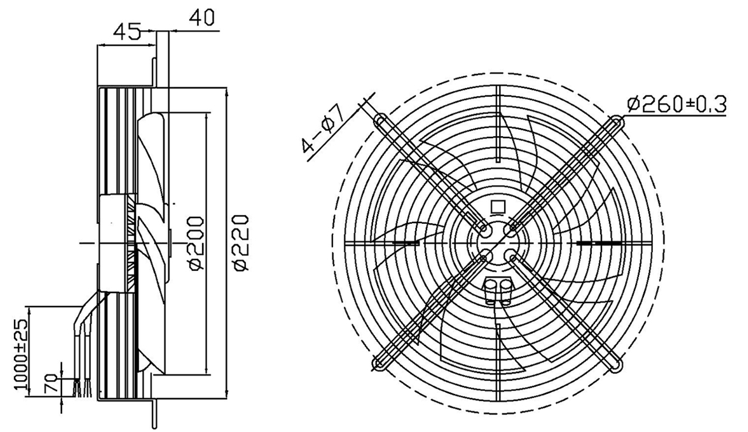

Dimensional drawing:

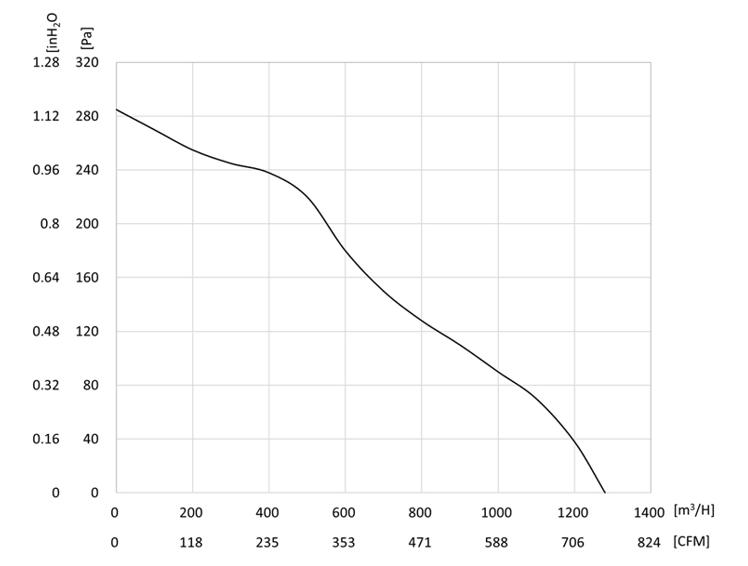

Performance Curve:

Connection Diagram:

Description:

An EC (Electronically Commutated) axial fan is a ventilation device driven by an electronically commutated motor, integrating advanced electronic control technology with a permanent magnet synchronous motor. The motor operates on a DC power supply but converts it into three-phase AC power through an internal electronic controller to drive the rotor. This design eliminates the need for mechanical brushes and commutators, reducing maintenance requirements and enhancing the fan's lifespan. The fan's blades are arranged parallel to the axis of rotation, enabling it to move air in a straight line along the axial direction. The electronic controller allows for precise speed regulation, ensuring the fan can adapt to varying airflow demands while maintaining high efficiency.

Specifications：

Competitive Advantage:

1. High Energy Efficiency

EC axial fans are renowned for their exceptional energy efficiency. By employing a permanent magnet synchronous motor and electronic commutation, these fans achieve a higher level of energy conversion compared to traditional AC fans. The electronic controller optimizes the motor's operation, ensuring that it only consumes the power necessary to meet the current airflow demand. This results in significant energy savings, especially in applications where the fan operates continuously or at varying loads. Over time, the reduced energy consumption translates into lower operating costs and a smaller carbon footprint, making EC axial fans an environmentally friendly choice.

2. Precise Speed Control

One of the standout features of EC axial fans is their precise speed control capability. The electronic controller allows for fine-tuning of the fan's speed, enabling it to adapt to changing airflow requirements in real-time. This feature is particularly useful in HVAC systems, where maintaining optimal indoor air quality and temperature requires precise regulation of airflow. By adjusting the fan speed, users can achieve the desired airflow rate without over- or under-ventilating the space, leading to improved comfort and energy efficiency.
