YUTEC 115VAC 230VAC 250mm 92 motor axial fan with medium speed for EC charger
- Fan model: YUTEC-A250EC92-115M-VG-G02; YUTEC-A250EC92-230M-VG-G02
- Rated Voltage: 115VAC;230VAC
- Rated Current: 2.7A; 1.35A
- Rated Power: 175W
- Rated Speed: 3100RPM
- Air Flow: 2180M3/H
- Air Pressure: 350Pa
- Noise Level:75dBA
- Frequency: 50/60 Hz
- Weight:2.3KG
- Brand: YUTEC
Description

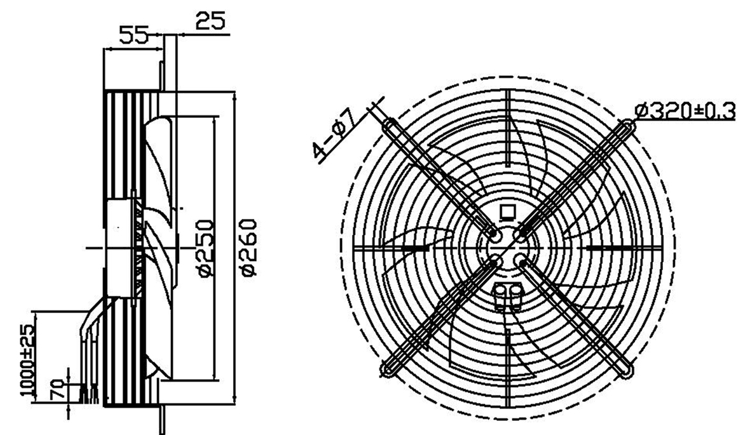

Dimensional drawing:

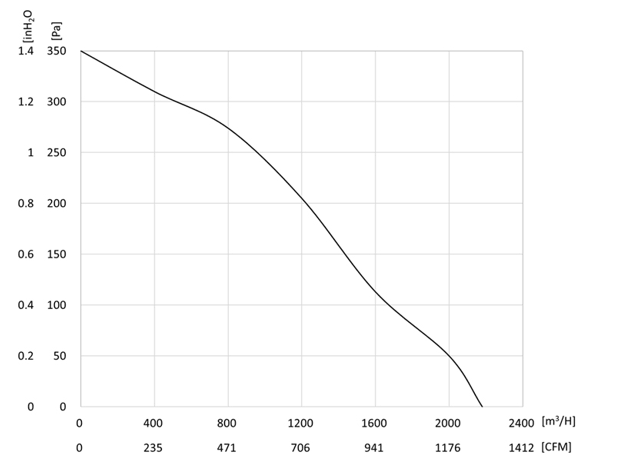

Performance Curve:
Connection Diagram:
Description:
In HVAC (Heating, Ventilation, and Air Conditioning) systems, EC axial fans play a crucial role in maintaining indoor air quality and thermal comfort. Their ability to provide high airflow rates at low static pressures makes them ideal for applications requiring efficient ventilation, such as in commercial buildings, residential complexes, and industrial facilities. The intelligent control capabilities of EC axial fans allow them to integrate seamlessly with building management systems, enabling precise regulation of airflow, temperature, and humidity. This contributes to energy savings and improved occupant comfort.
Specifications：
Brand Name | YUTEC |
Impeller Material | Galvanized Metal Sheet |
Motor Type | BLDC External Rotor Motor |
Type of Protection | IP44 |
Insulation Class | Class B |
Speed Control | 0-10VDC/PWM |
Bearing | Ball Bearing |
Signal Output | FG |
Life Expectance | 50,000 Hours |
Electrical Protection | Locked Rotor Protection |
Reverse Polarity Protection | |
Over Voltage Protection | |
Soft Start |
Competitive Advantage:
1. Intelligent Control Capabilities
EC axial fans support various intelligent control methods, such as remote control, automatic regulation, and integration with building management systems. This allows for centralized monitoring and control of multiple fans, enhancing system efficiency and flexibility. Users can adjust fan settings, monitor performance, and receive alerts for maintenance or troubleshooting, improving overall system management.
2. Wide Range of Applications
EC axial fans are versatile and can be used in a wide range of applications, including HVAC systems, industrial ventilation, equipment cooling, and transportation. Their ability to provide high airflow rates at low static pressures makes them suitable for various environments and requirements. Whether it's for maintaining indoor air quality in a commercial building or cooling electronic components in a data center, EC axial fans offer a reliable and efficient solution.
