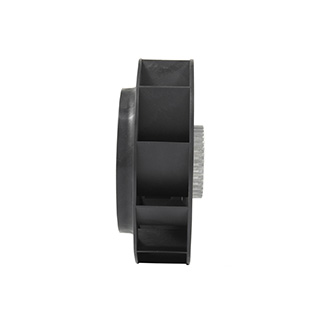

YUTEC 24VDC 48VDC 190mm 92motor high speed EC centrifugal fan

Description

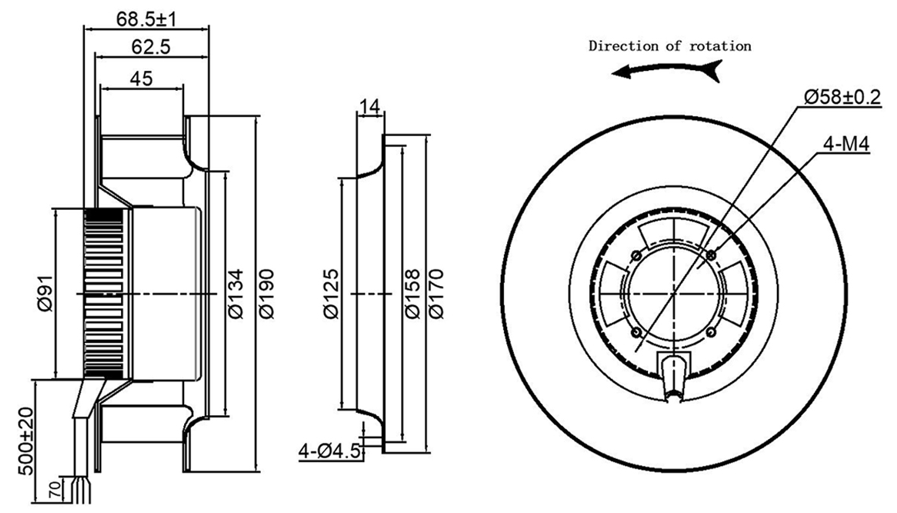

Dimensional drawing:

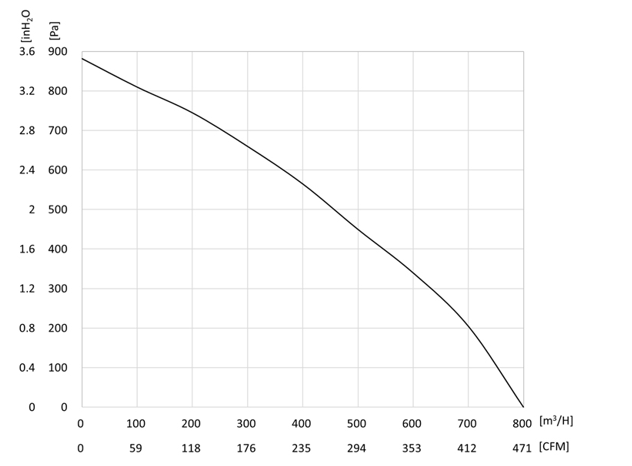

Performance Curve:

Connection Diagram:

Description：

Backward-curved centrifugal fans are renowned for their high efficiency, typically exceeding 80% in well-designed systems. This efficiency arises from their ability to maintain optimal performance across varying loads. Unlike forward-curved fans, which lose efficiency rapidly at higher pressures, backward-curved designs sustain efficiency by reducing the likelihood of stall and recirculation. The gradual blade curvature ensures that air is accelerated efficiently without excessive turbulence, translating to lower energy consumption. In industrial settings, this efficiency translates to substantial cost savings over the fan’s lifecycle, as reduced power consumption directly lowers operational expenses. Additionally, their compatibility with variable-speed drives (VSDs) allows for further energy optimization by matching airflow to demand.

Specifications：

Competitive Advantage:

The lower operating speeds and reduced turbulence in backward-curved fans decrease mechanical stress on components. This extends the lifespan of bearings, motors, and impellers, lowering replacement costs and downtime. In harsh environments with dust, moisture, or corrosive agents, their robust design ensures reliability, making them preferred for mining, wastewater treatment, and chemical processing.
