YUTEC 355mm high speed backward curved centrifugal fan with 102motor
- Fan model: YUTEC-B355DC102-024H-A02; YUTEC-B355DC102-048H-A02
- Rated Voltage: 024VDC;048VDC
- Rated Current: 7A;3.5A
- Rated Power: 168W
- Rated Speed: 1580RPM
- Air Flow: 2600M3/H
- Air Pressure: 487Pa
- Noise Level:68dBA
- Frequency: 50/60 Hz
- Weight:4.6KG
- Brand: YUTEC
Description
Description:

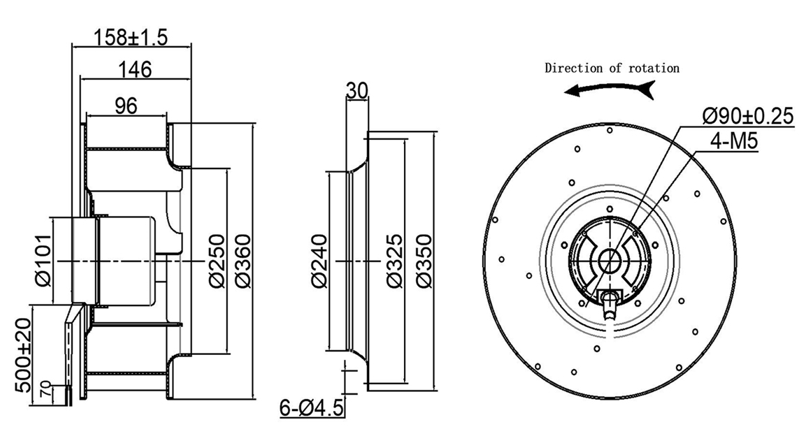

Dimensional drawing:

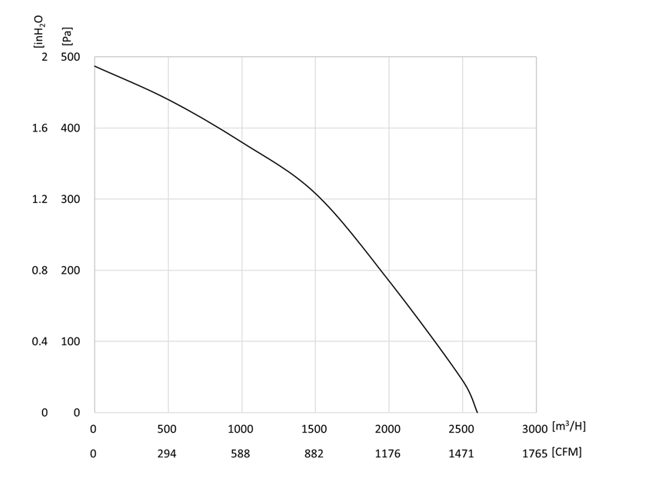

Performance Curve:
Connection Diagram:
Description：
Modern EC backward-curved fans support IoT connectivity, enabling remote monitoring, predictive maintenance, and performance optimization through cloud-based platforms. This connectivity allows for real-time data analysis, improving system efficiency and reducing operational costs.
Specifications：
Brand Name | YUTEC |
Impeller Material | Aluminum Alloy Sheet |
Motor Type | BLDC External Rotor Motor |
Type of Protection | IP44 |
Insulation Class | Class B |
Speed Control | 0-10VDC/PWM |
Bearing | Ball Bearing |
Signal Output | FG |
Life Expectance | 50,000 Hours |
Electrical Protection | Locked Rotor Protection |
Reverse Polarity Protection | |
Over Voltage Protection | |
Soft Start |
Competitive Advantage:
Backward-curved centrifugal fans exhibit stable pressure-volume (P-Q) curves, ensuring consistent performance across a wide range of operating conditions. Unlike forward-curved fans, which may experience pressure drops at higher volumes, backward-curved designs maintain stable static pressure, even under varying loads. This stability is crucial for applications requiring precise airflow control, such as HVAC systems, industrial processes, and cleanrooms. Reliable pressure characteristics simplify system design and reduce the need for complex control mechanisms.
