YUTEC 400mm backward curved centrifugal fans with 102motor for kitchen
- Fan model: YUTEC-B400DC102-048L-A02
- Rated Voltage: 048VDC
- Rated Current: 4.3A
- Rated Power: 208W
- Rated Speed: 1320RPM
- Air Flow: 3400M3/H
- Air Pressure: 400Pa
- Noise Level:63dBA
- Frequency: 50/60 Hz
- Brand: YUTEC
Description

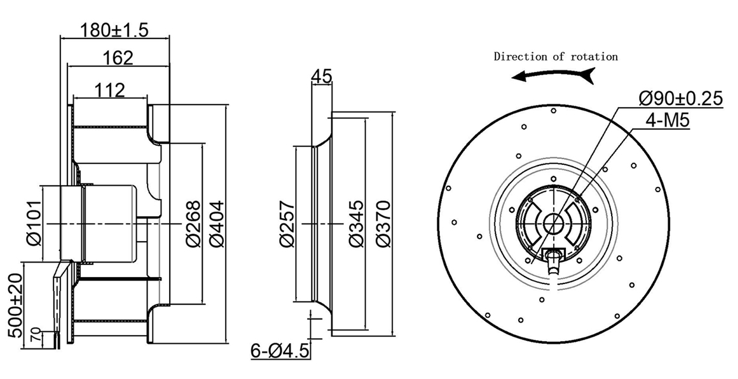

Dimensional drawing:

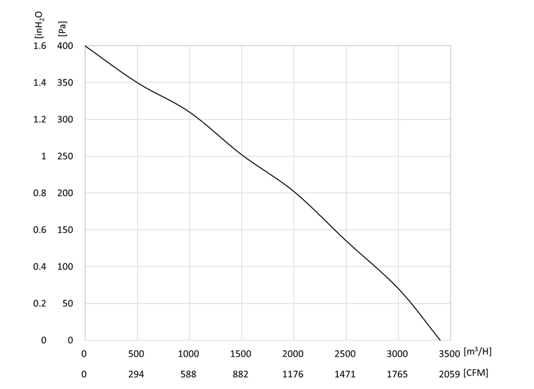

Performance Curve:
Connection Diagram:
Description：
The fan consists of a backward-curved impeller, an EC motor with integrated electronics, and a durable housing. The impeller, typically made of lightweight materials like aluminum or reinforced plastics, ensures efficient air movement. The motor's electronics enable real-time speed adjustments, enhancing system responsiveness.
Specifications：
Brand Name | YUTEC |
Impeller Material | Aluminum Alloy Sheet |
Motor Type | BLDC External Rotor Motor |
Type of Protection | IP44 |
Insulation Class | Class B |
Speed Control | 0-10VDC/PWM |
Bearing | Ball Bearing |
Signal Output | FG |
Life Expectance | 50,000 Hours |
Electrical Protection | Locked Rotor Protection |
Reverse Polarity Protection | |
Over Voltage Protection | |
Soft Start |
Competitive Advantage:
Backward-curved centrifugal fans are designed for compactness, offering high performance in a small footprint. Their space-saving design is ideal for installations with limited clearance, such as retrofits or tight mechanical rooms. The efficient blade geometry allows for a smaller housing while maintaining airflow capacity, reducing installation costs and simplifying system integration. This advantage is particularly valuable in urban environments or retrofit projects where space is at a premium.
