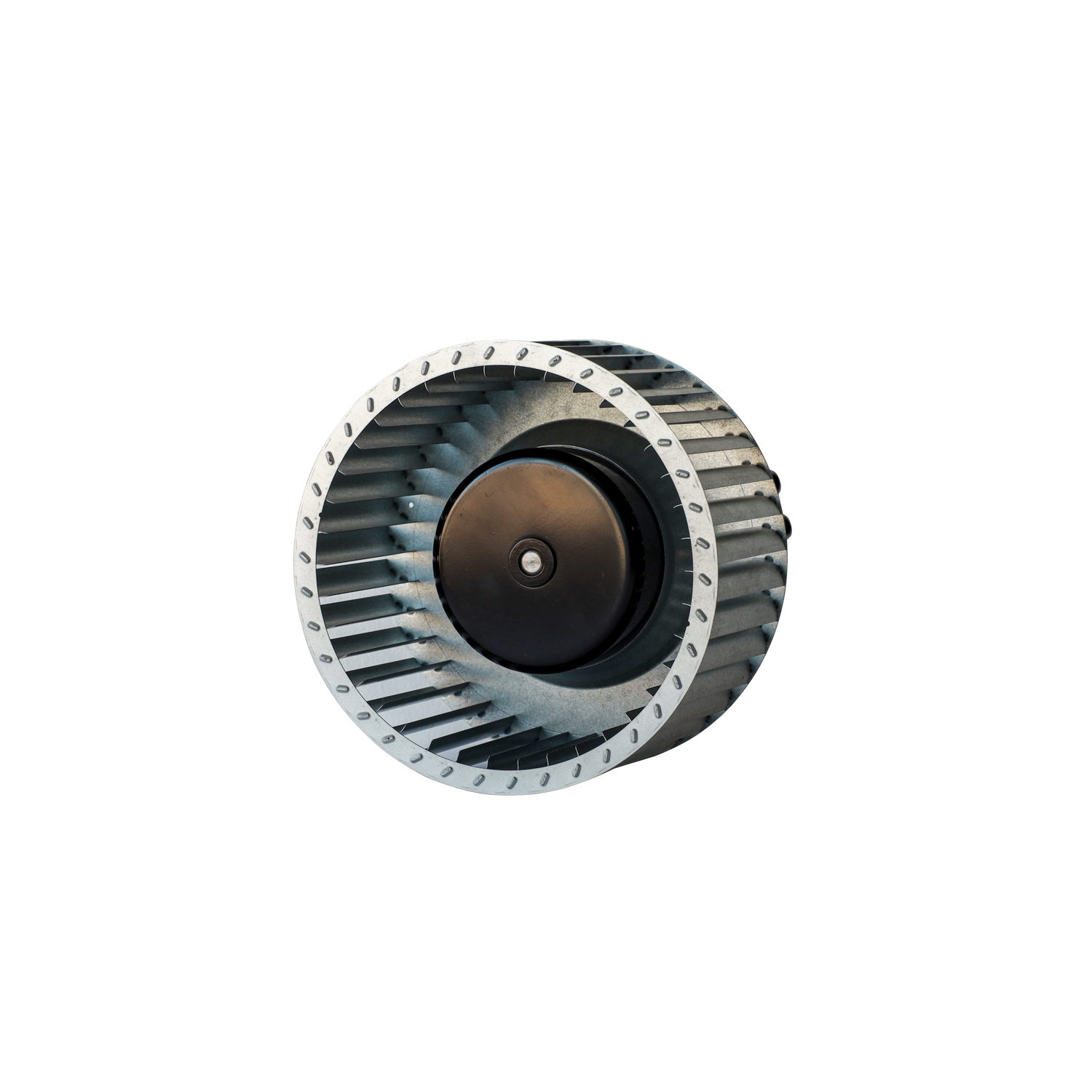

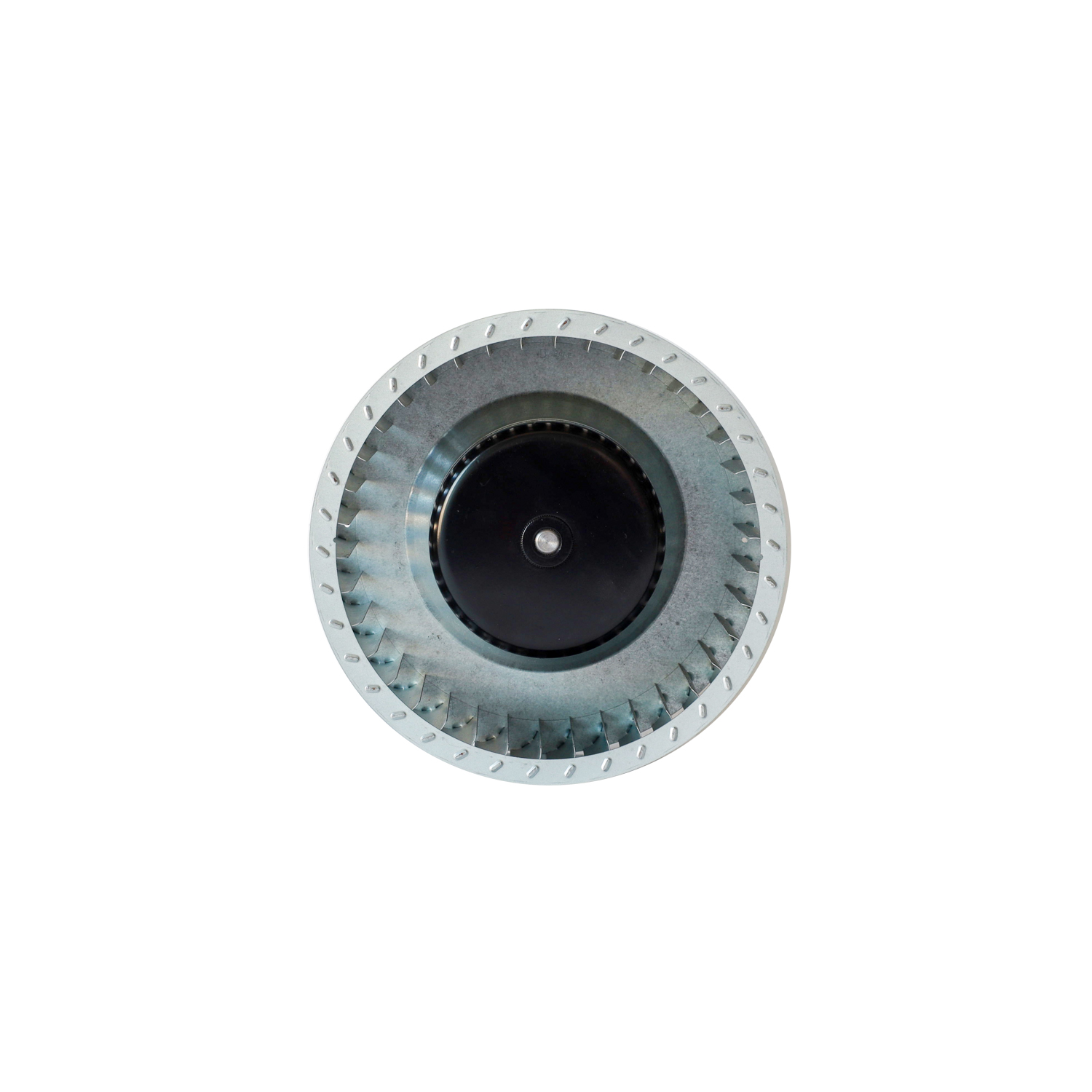

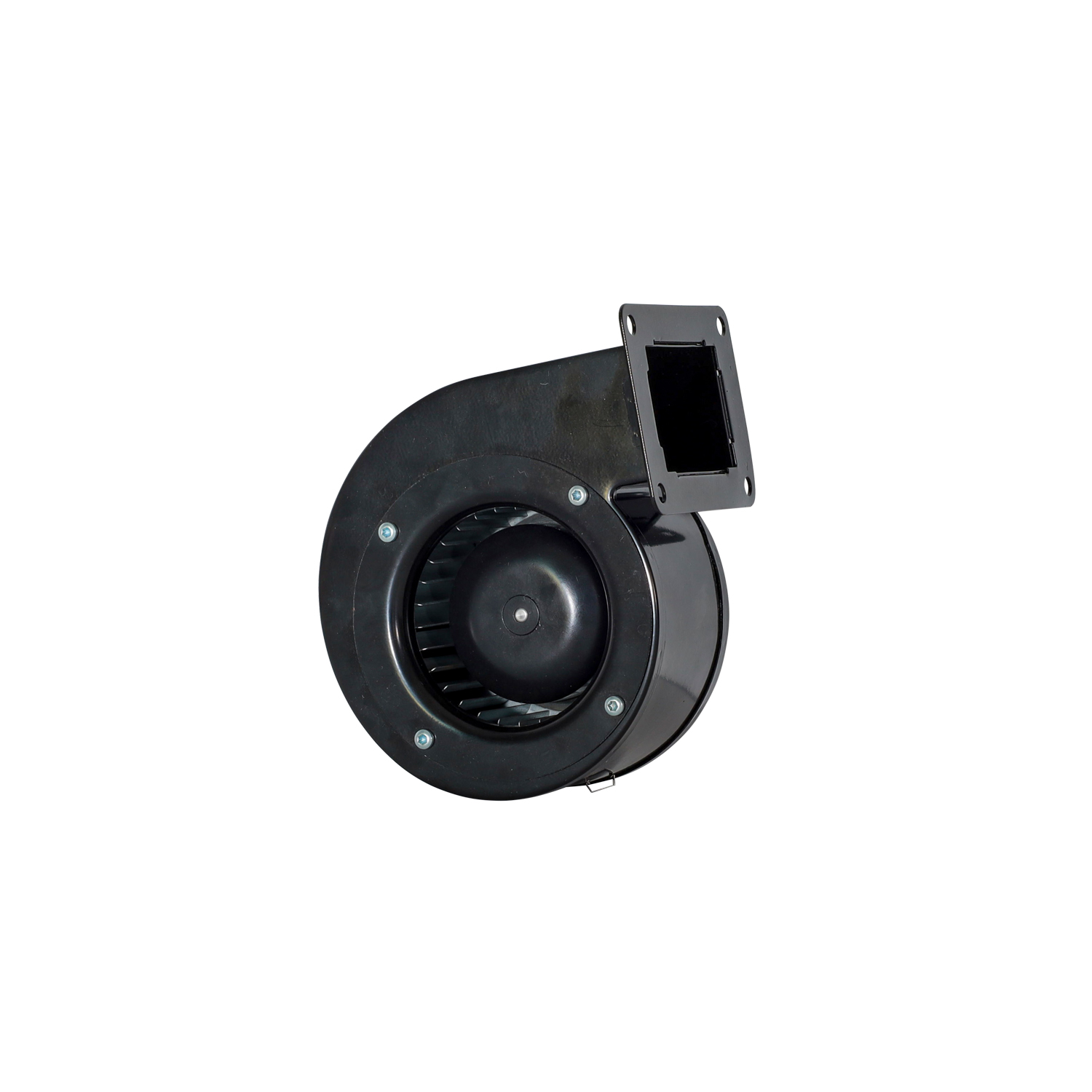

YUTEC 024VAC 048VAC 120mm 72motor Forward Curved Centrifugal Fan single inlet blower fan
- Fan model: YUTEC-F120DC72-024M-G02;YUTEC-F120DC72-048M-G02 YUTEC-S120DC72-024M-G02;YUTEC-S120DC72-048M-G02
- Rated Voltage: 024VDC;048VDC
- Rated Current: 2A; 1A
- Rated Power: 48W
- Rated Speed: 2400RPM
- Air Flow: 250M3/H
- Air Pressure: 350Pa
- Noise Level:58dBA
- Frequency: 50/60 Hz
- Weight:1.3KG;1.5KG
- Brand: YUTEC
Description

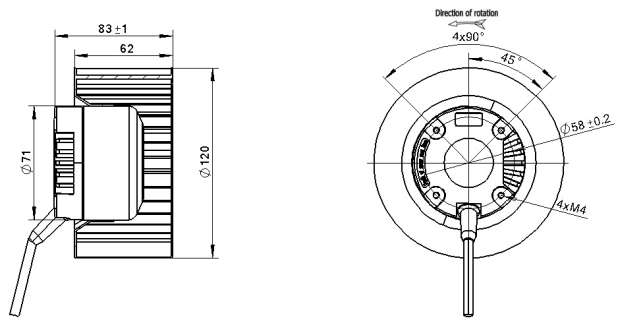

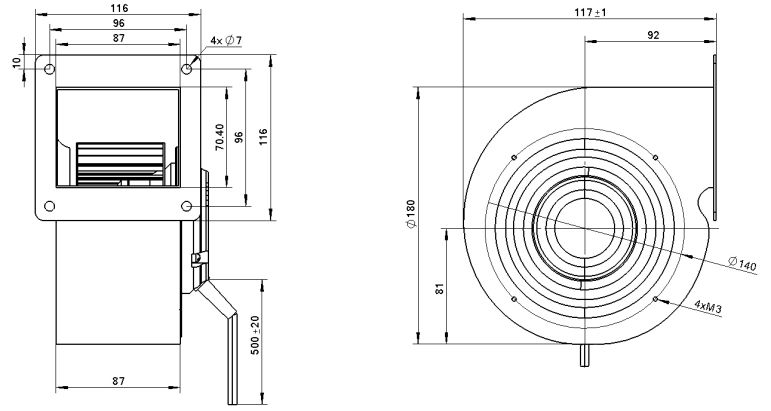

Dimensional drawing:

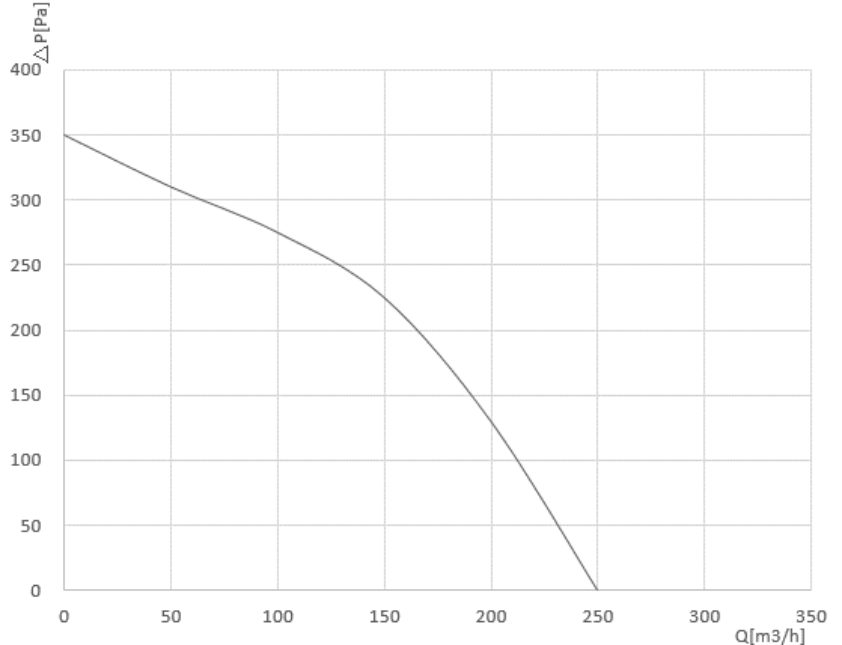

Performance Curve:
Connection Diagram:
Description:
This 120mm DC forward curved centrifugal fan comes in 24V and 48V versions, delivering stable airflow and high static pressure for efficient ventilation and heat dissipation. It features low noise, low power consumption, and smooth operation, ideal for electrical cabinets, power supplies, inverters, and automation equipment. The compact 120mm size ensures easy installation and wide compatibility. With durable structure and reliable performance, it provides long-lasting, safe thermal management for various industrial and electrical applications.
Specifications：
Brand Name | YUTEC |
Impeller Material | Metal Sheet |
Motor Type | BLDC External Rotor Motor |
Type of Protection | IP44 |
Insulation Class | Class B |
Speed Control | 0-10VDC/PWM |
Bearing | Ball Bearing |
Signal Output | FG |
Life Expectance | 50,000 Hours |
Electrical Protection | Locked Rotor Protection |
Reverse Polarity Protection | |
Over Voltage Protection | |
Soft Start |
Competitive Advantage:
1. Low Noise Operation
Our 24V and 48V DC forward curved centrifugal fans operate quietly due to optimized blade geometry and balanced rotors. Vibration and turbulent noise are greatly reduced during operation. They are ideal for use in offices, control rooms, smart devices and indoor equipment where low noise is essential.
2. High Energy Efficiency
Powered by 24V or 48V DC, these fans offer excellent energy efficiency. They convert electrical energy into effective airflow with minimal waste. Lower power consumption reduces operating costs and heat generation. This efficiency supports long-term, continuous running while saving energy for the whole system.
