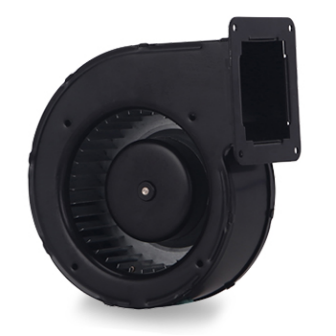

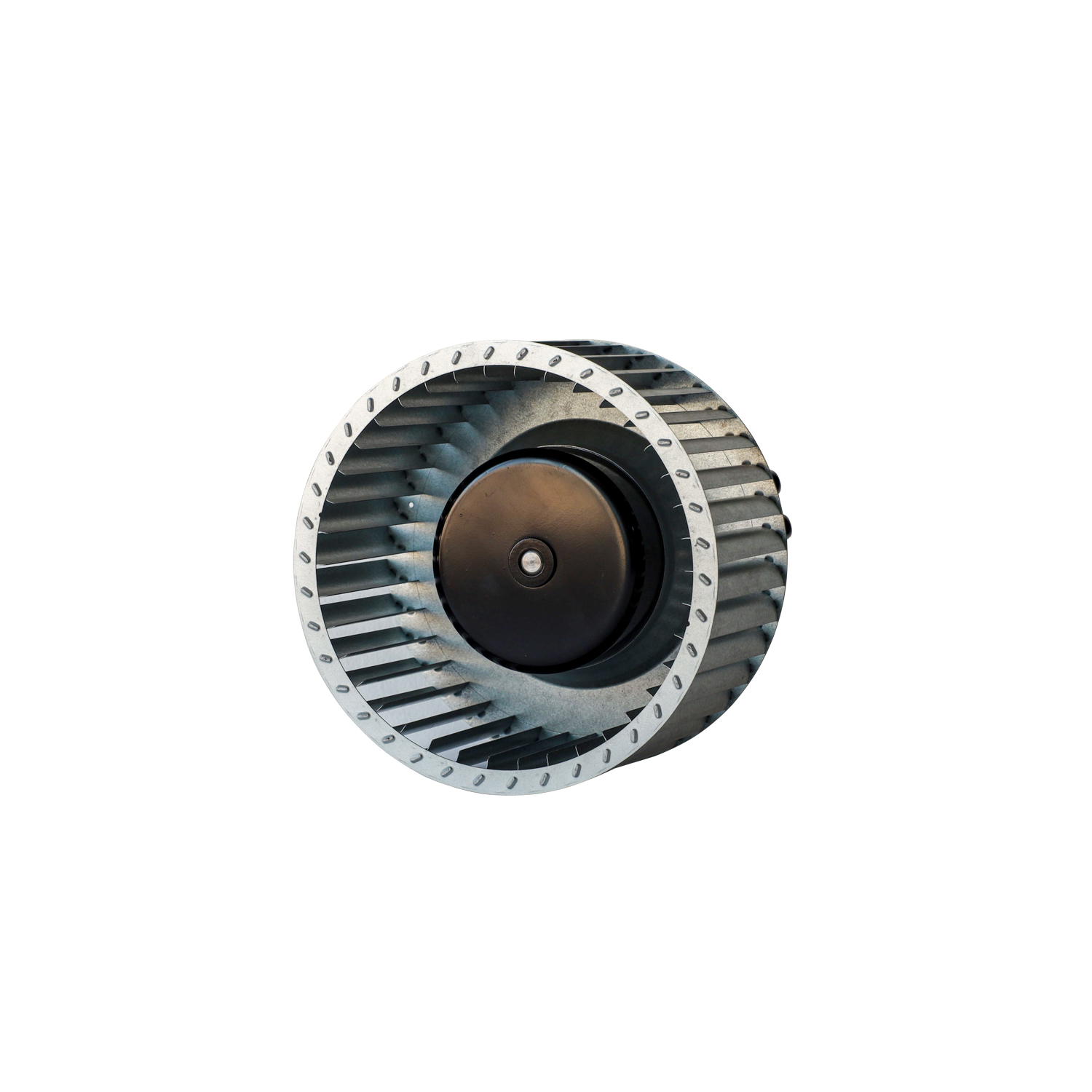

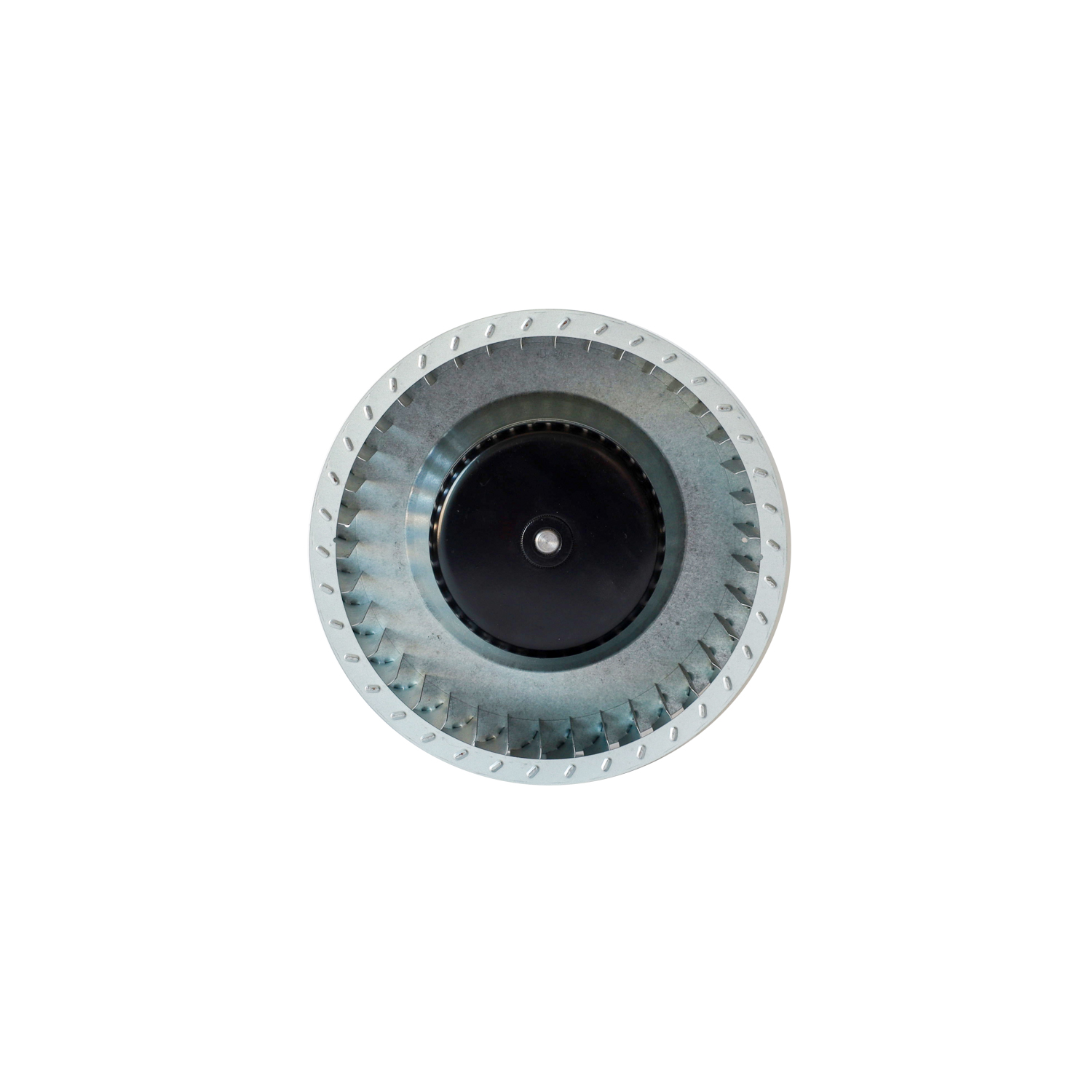

YUTEC 024VDC 048VDC 108mm 72motor Forward Curved Centrifugal Fan blower fan
- Fan model: YUTEC-S108DC72-024M-G02;YUTEC-S108DC72-048M-G02 YUTEC-F108DC72-024M-G02;YUTEC-F108DC72-048M-G02
- Rated Voltage: 024VAC;048VAC
- Rated Current: 3.3A; 1.65A
- Rated Power: 80W
- Rated Speed: 3200RPM
- Air Flow: 230M3/H
- Air Pressure: 304Pa
- Noise Level:67dBA
- Frequency: 50/60 Hz
- Weight:1.3KG;1KG
- Brand: YUTEC
Description

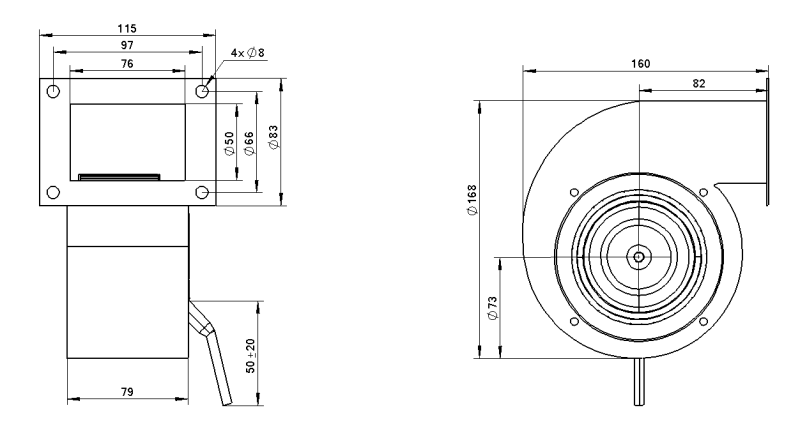

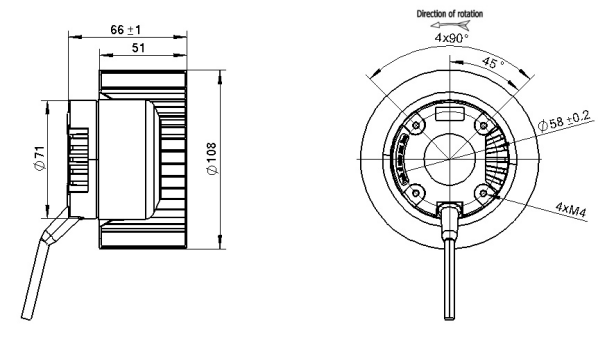

Dimensional drawing:

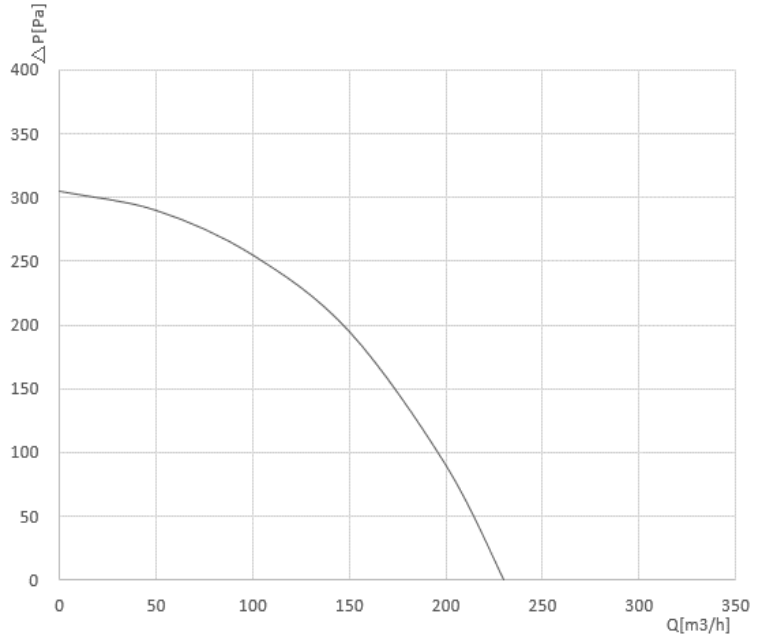

Performance Curve:
Connection Diagram:
Description:
This is a high-efficiency 108mm DC forward curved centrifugal fan, available in 24V DC and 48V DC versions. It provides stable and high-pressure airflow, ideal for ventilation, heat dissipation, and air circulation in electrical cabinets, inverters, automation equipment, and small industrial devices.
It features low noise, low power consumption, and reliable long-term operation. The compact 108mm size ensures easy installation and wide compatibility. With stable performance and durable structure, this fan delivers efficient and quiet thermal management for various industrial and electrical applications.
Specifications：
Brand Name | YUTEC |
Impeller Material | Metal Sheet |
Motor Type | BLDC External Rotor Motor |
Type of Protection | IP44 |
Insulation Class | Class B |
Speed Control | 0-10VDC/PWM |
Bearing | Ball Bearing |
Signal Output | FG |
Life Expectance | 50,000 Hours |
Electrical Protection | Locked Rotor Protection |
Reverse Polarity Protection | |
Over Voltage Protection | |
Soft Start |
Competitive Advantage:
1. High Air Pressure Performance
DC forward curved centrifugal fans are specially designed to deliver higher static pressure than standard axial fans. Even with resistance from ducts, filters or compact enclosures, they maintain strong airflow. The 108mm size and 24V/48V power ensure stable pressure output, making them perfect for ventilation systems that need reliable airflow in restricted conditions.
2. Stable Airflow Under Resistance
These fans perform consistently well even when facing backpressure. Unlike axial fans, their forward-curved blade design reduces airflow drop in ducted or blocked setups. Whether used in cooling systems, ventilation units or equipment enclosures, they keep steady airflow. This stability improves cooling efficiency and overall system reliability.
