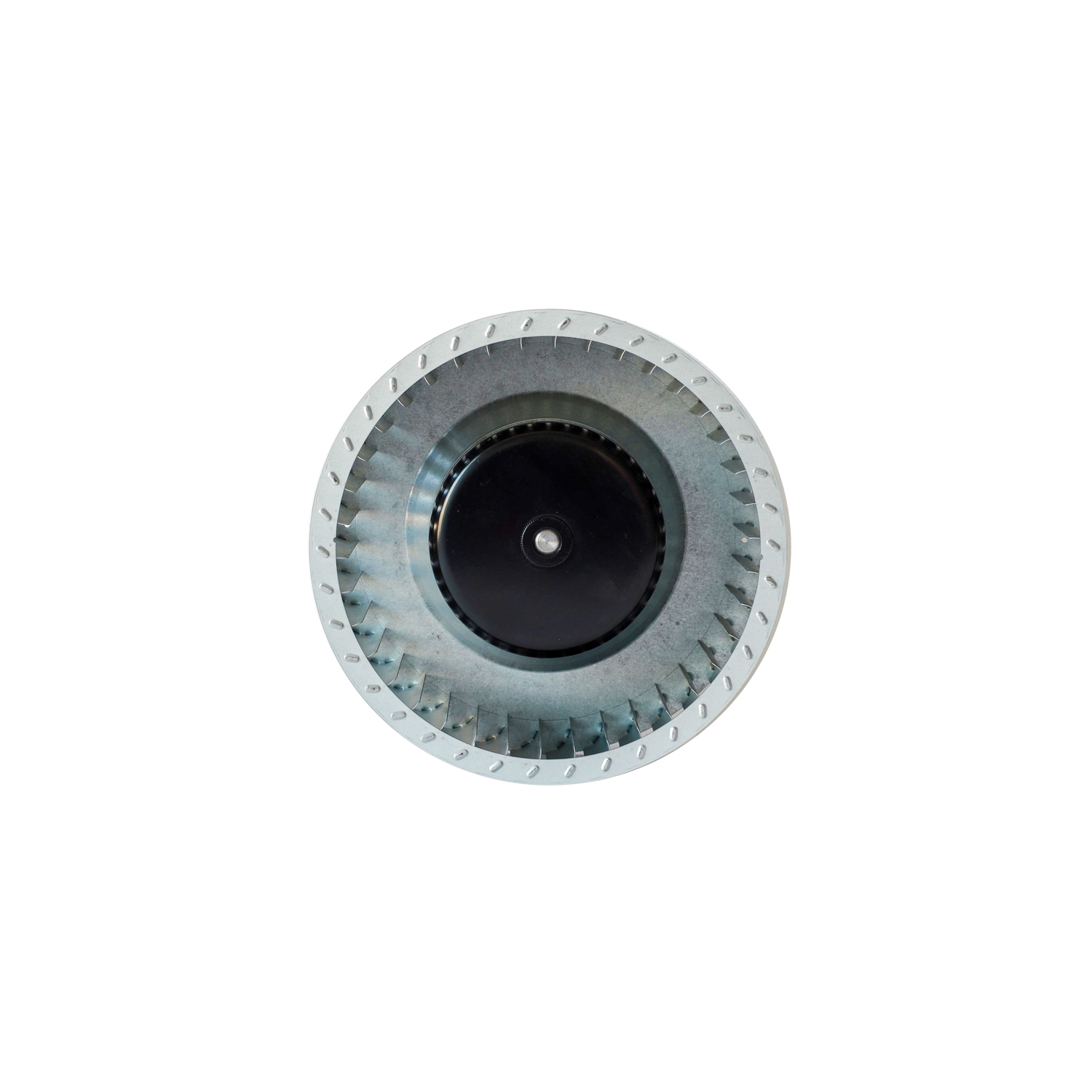

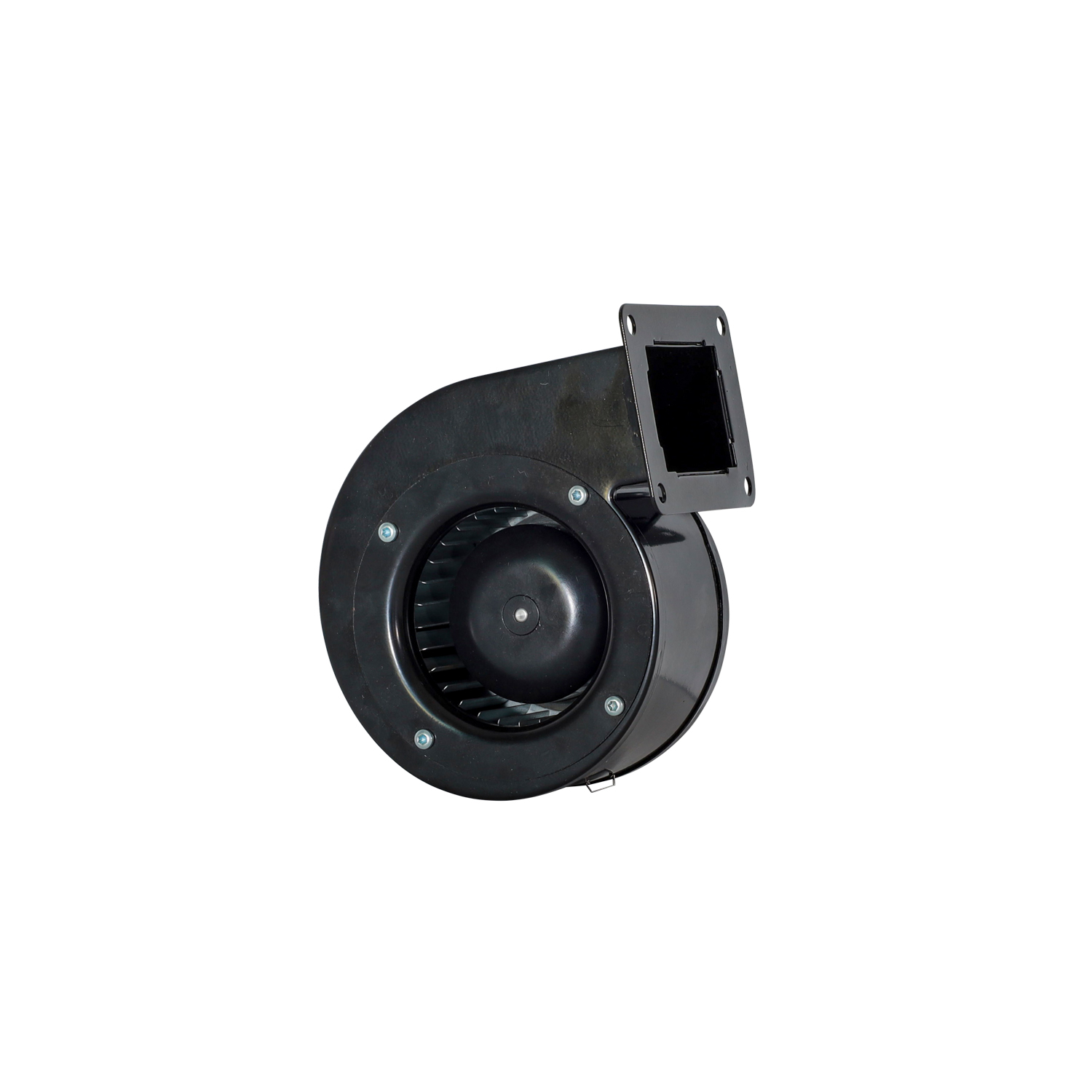

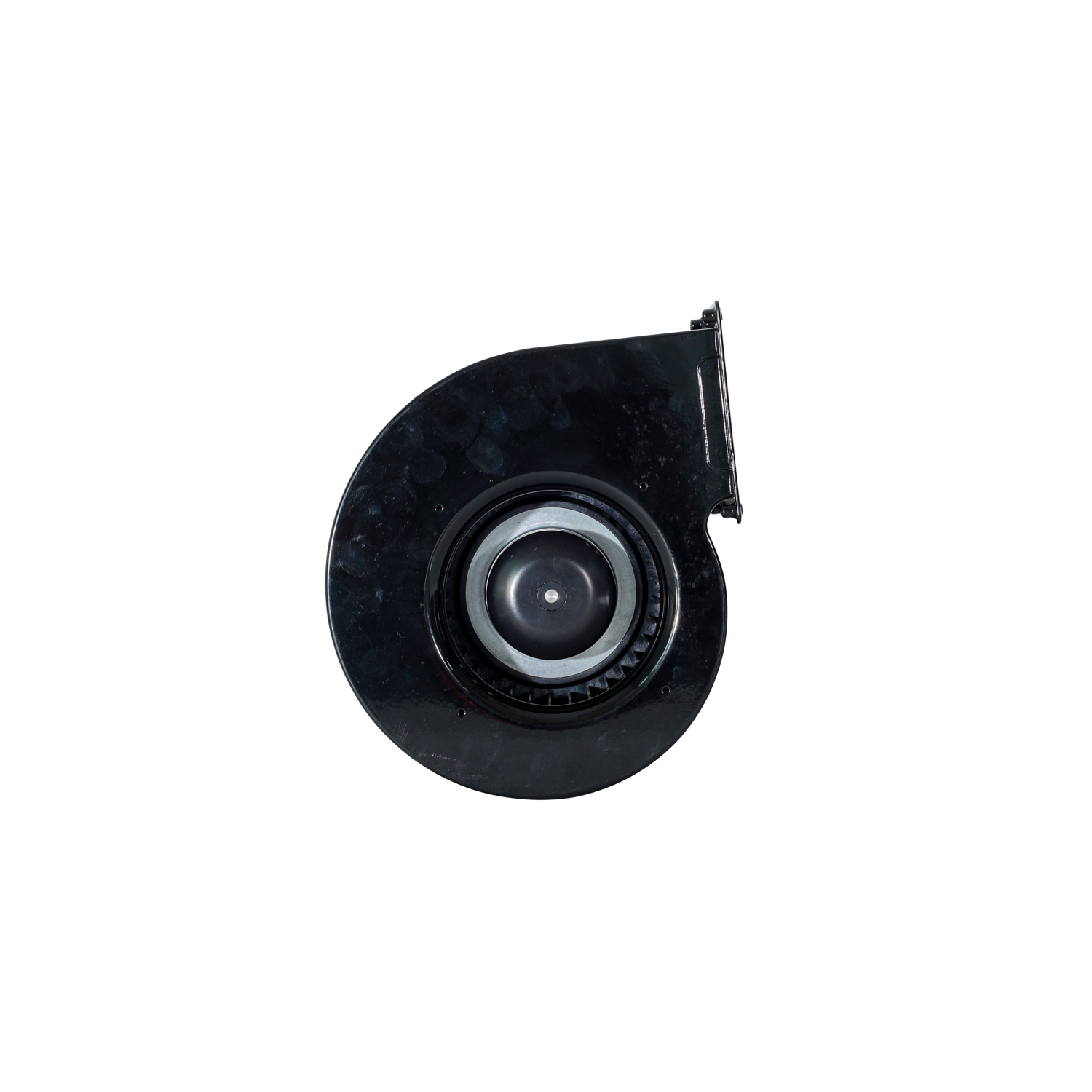

YUTEC 024VDC 048VDC 133mm 72motor Forward Curved Centrifugal Fan single inlet blower fan
- Fan model: YUTEC-F133DC72-024H-G02;YUTEC-F133DC72-048H-G02 YUTEC-S133DC72-024H-G02;YUTEC-S133DC72-048H-G02
- Rated Voltage: 024VDC;048VDC
- Rated Current: 2A; 1A
- Rated Power: 48W
- Rated Speed: 2600RPM
- Air Flow: 255M3/H
- Air Pressure: 310Pa
- Noise Level:65dBA
- Frequency: 50/60 Hz
- Weight:1.4KG;1.6KG
- Brand: YUTEC
Description

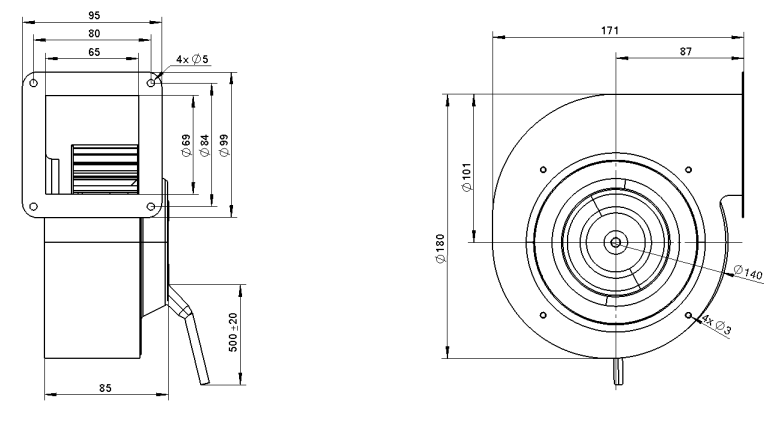

Dimensional drawing:

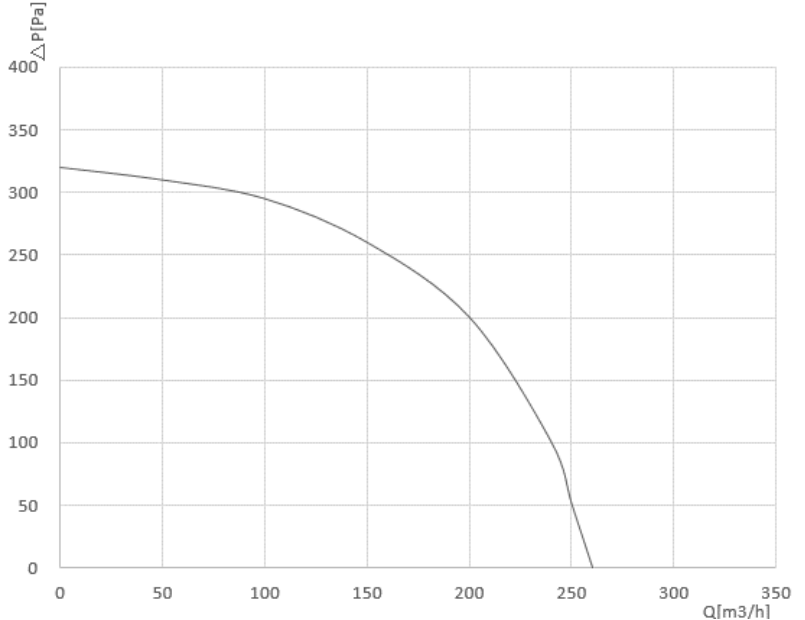

Performance Curve:
Connection Diagram:
Description:
This 133mm DC forward curved centrifugal fan is available in 24V and 48V versions, designed for high static pressure and stable airflow. It provides efficient ventilation and heat dissipation for electrical cabinets, inverters, power supplies, automation equipment, and cooling systems. It features low noise, low power consumption, smooth operation, and long service life. The compact 133mm size ensures easy installation and wide compatibility. With reliable performance and durable structure, it is an ideal cooling solution for various industrial and electrical applications.
Specifications：
Brand Name | YUTEC |
Impeller Material | Metal Sheet |
Motor Type | BLDC External Rotor Motor |
Type of Protection | IP44 |
Insulation Class | Class B |
Speed Control | 0-10VDC/PWM |
Bearing | Ball Bearing |
Signal Output | FG |
Life Expectance | 50,000 Hours |
Electrical Protection | Locked Rotor Protection |
Reverse Polarity Protection | |
Over Voltage Protection | |
Soft Start |
Competitive Advantage:
1. Compact 133mm Size
With a diameter of only 133mm, this fan is highly compact and space-saving. It fits easily into small equipment, compact cabinets, electrical boxes and portable devices. Despite its small size, it provides strong cooling performance. This makes it extremely versatile for modern miniaturized equipment.
2. Long Service Life
Built with high-quality bearings and durable components, these centrifugal fans ensure long service life. The stable DC drive reduces internal wear and overheating. Reliable operation under 24V or 48V extends lifespan and lowers maintenance needs. Users benefit from fewer replacements and lower long-term costs.
