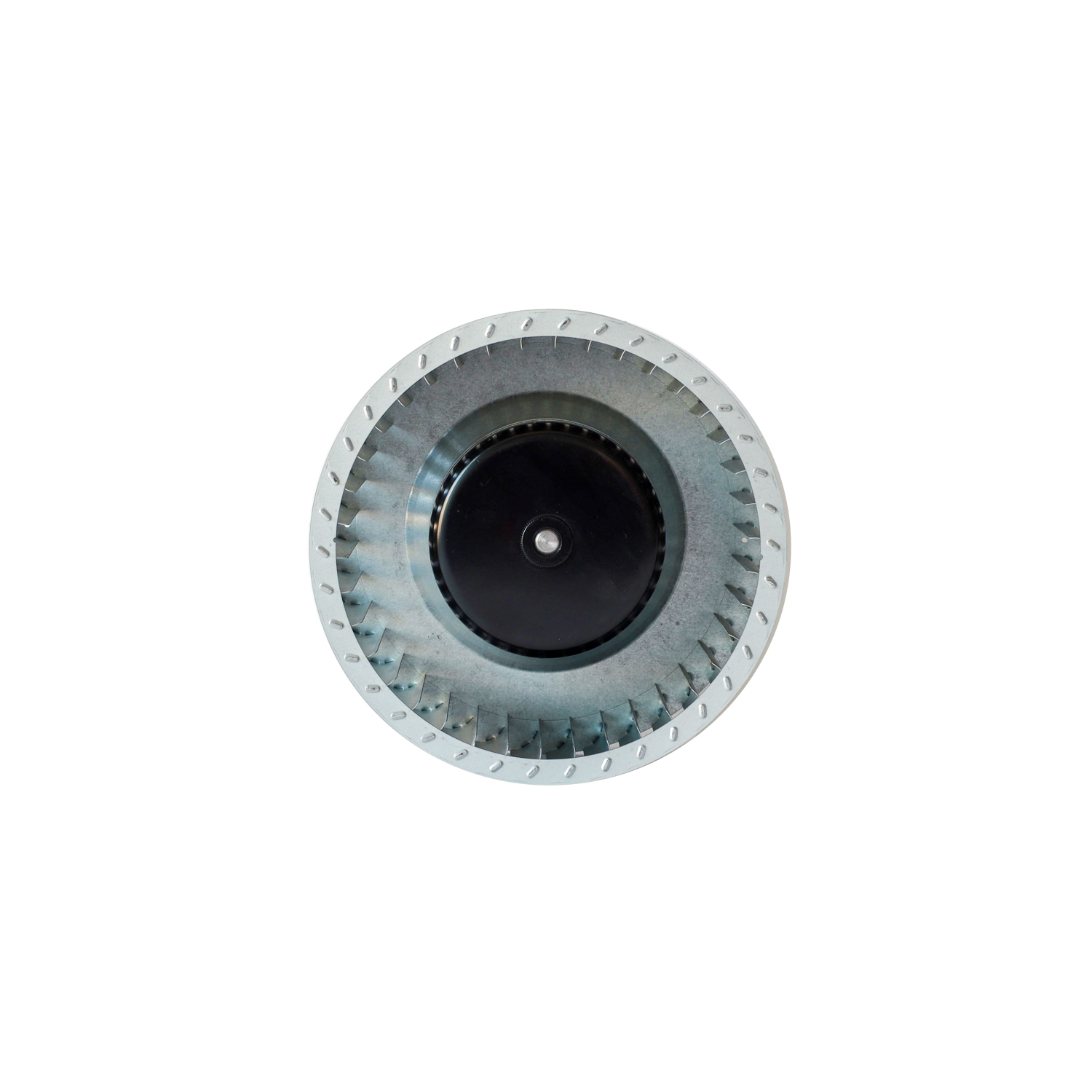

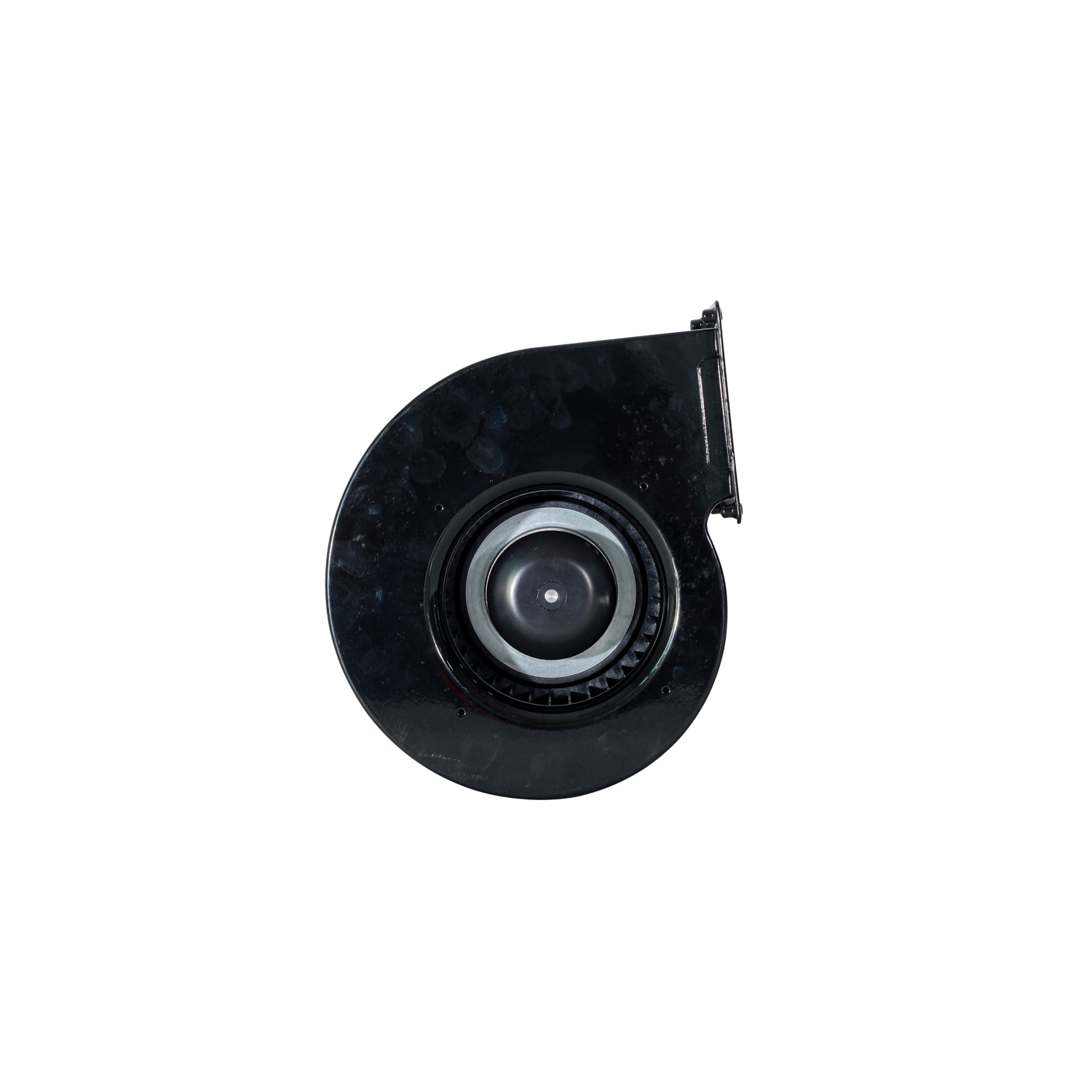

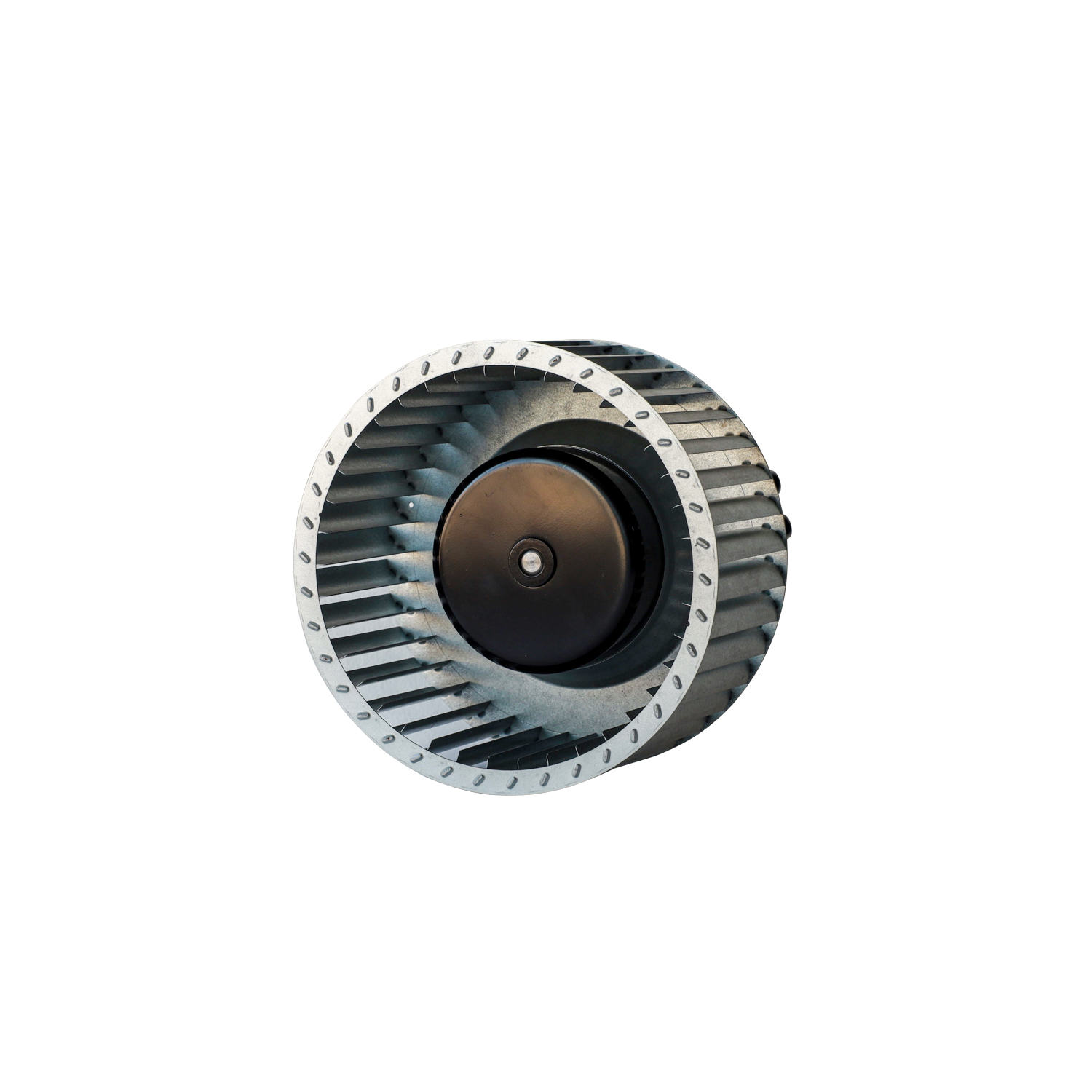

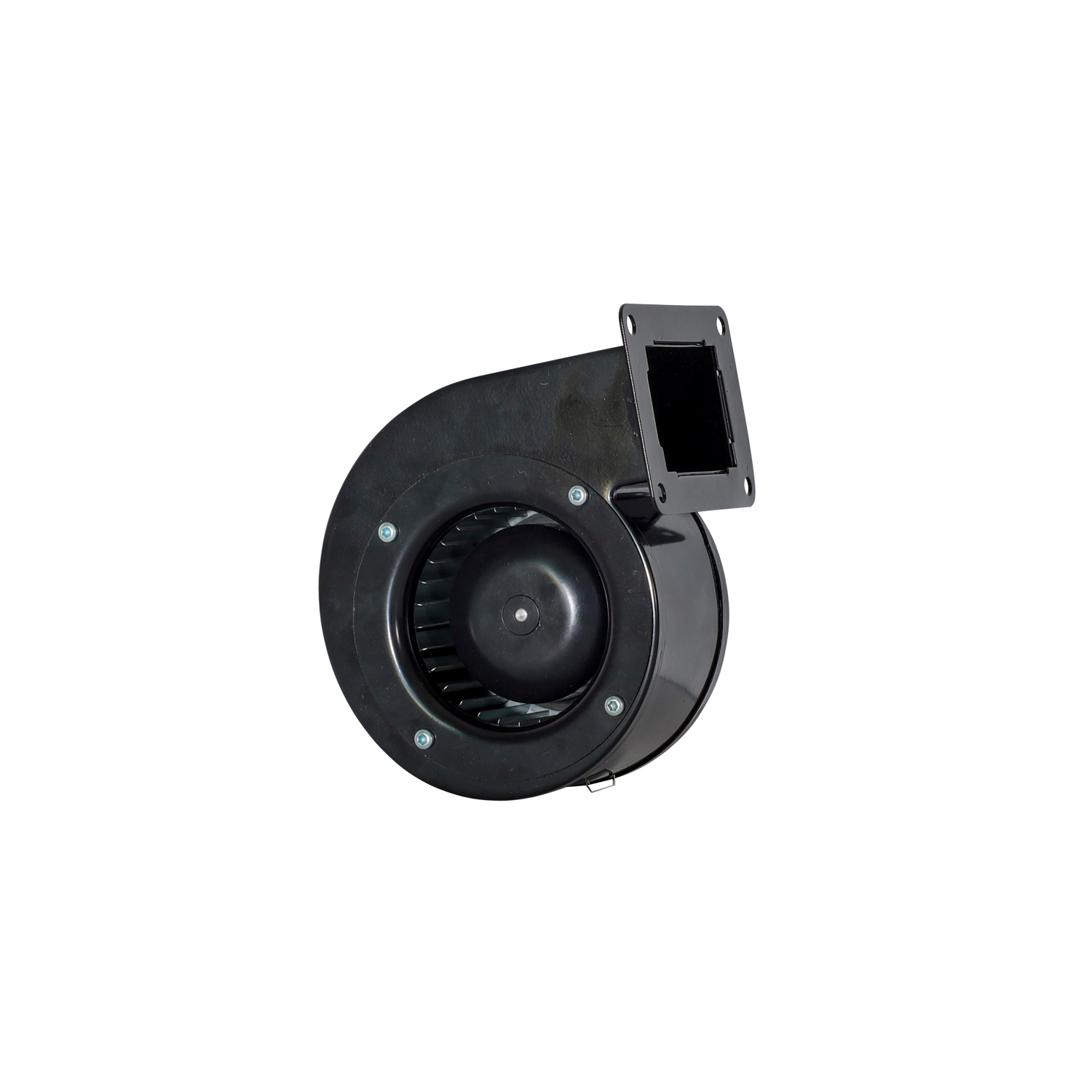

YUTEC 024VDC 048VDC 140mm 72motor Forward Curved Centrifugal Fan single inlet blower fan
- Fan model: YUTEC-F140DC72-024M-G02;YUTEC-F140DC72-048M-G02 YUTEC-S140DC72-024M-G02;YUTEC-S140DC72-048M-G02
- Rated Voltage: 024VDC;048VDC
- Rated Current: 3.8A; 1.9A
- Rated Power: 91.2W
- Rated Speed: 1750RPM
- Air Flow: 410M3/H
- Air Pressure: 350Pa
- Noise Level:63dBA
- Frequency: 50/60 Hz
- Weight:1.8KG;2KG
- Brand: YUTEC
Description

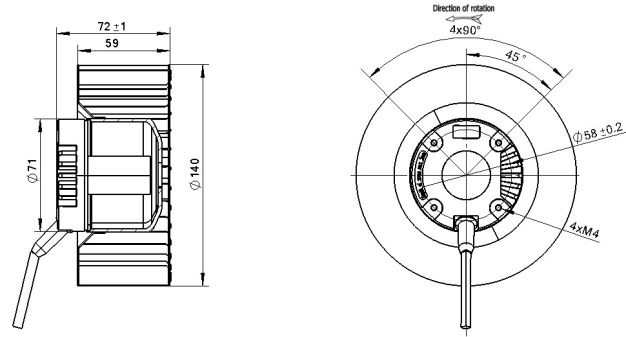

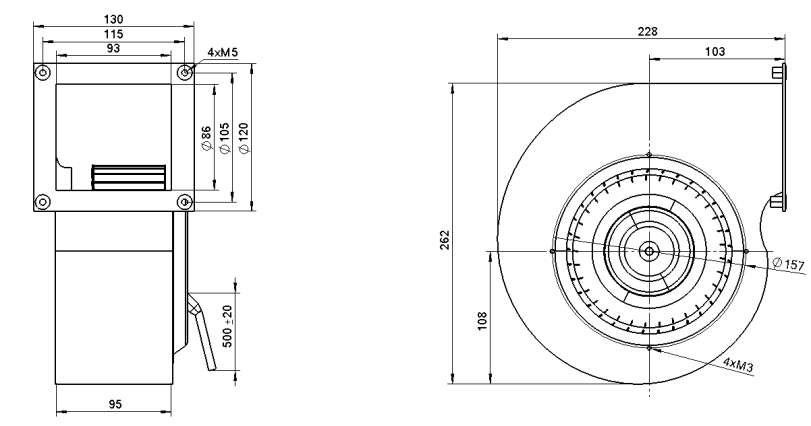

Dimensional drawing:

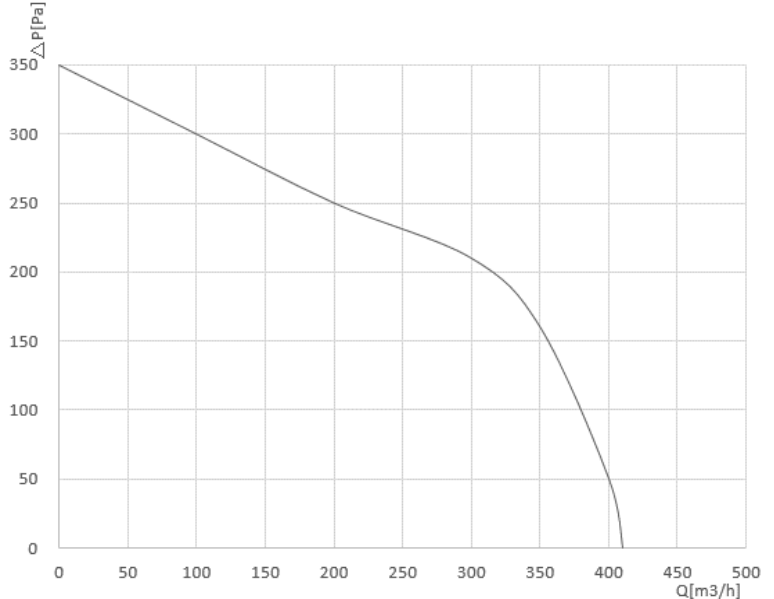

Performance Curve:
Connection Diagram:
Description:
This 140mm DC forward curved centrifugal fan supports 24V and 48VDC voltages, delivering high static pressure and stable airflow for efficient cooling and ventilation. It features low noise, low power consumption, and smooth long-term operation, making it widely used in electrical cabinets, inverters, power supplies, automation equipment, and ventilation systems. The standard 140mm size ensures easy installation and high compatibility. With a robust structure and reliable performance, it provides safe and efficient thermal management for various industrial and electrical applications.
Specifications：
Brand Name | YUTEC |
Impeller Material | Galvanized Metal Shell |
Motor Type | BLDC External Rotor Motor |
Type of Protection | IP44 |
Insulation Class | Class B |
Speed Control | 0-10VDC/PWM |
Bearing | Ball Bearing |
Signal Output | FG |
Life Expectance | 50,000 Hours |
Electrical Protection | Locked Rotor Protection |
Reverse Polarity Protection | |
Over Voltage Protection | |
Soft Start |
Competitive Advantage:
1. Smooth and Stable Running
Precision dynamic balancing ensures smooth operation with minimal vibration. This protects surrounding parts and reduces noise. The fan runs steadily even during long hours, providing consistent cooling. Stable performance increases equipment safety and reduces the risk of malfunction.
2. Flexible 24V & 48V Voltage Options
This fan supports both 24V DC and 48V DC power supplies, offering great flexibility. It can match different power systems in industrial control, automation, robotics and electrical equipment. Users can choose the suitable voltage based on their power configuration, improving compatibility.
