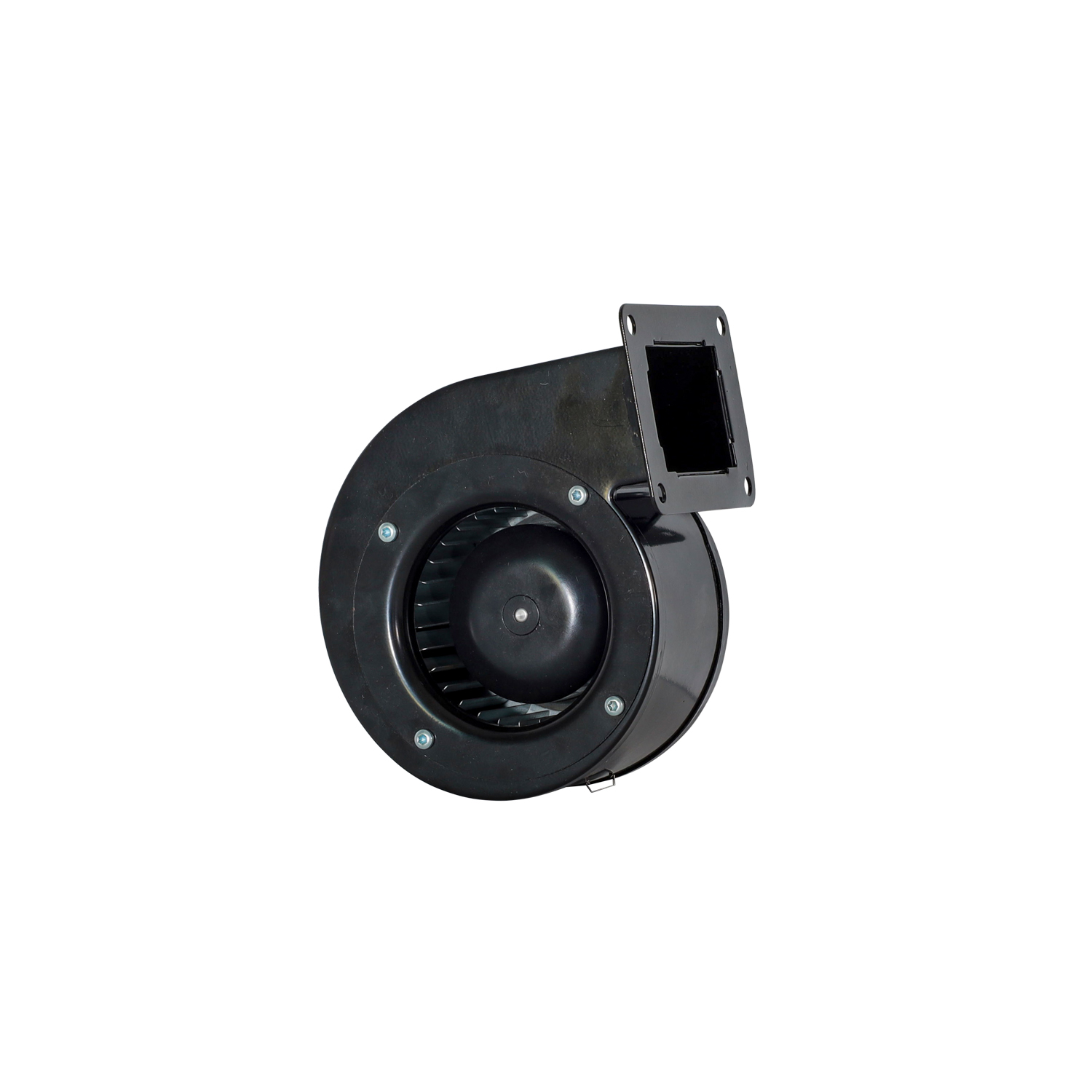

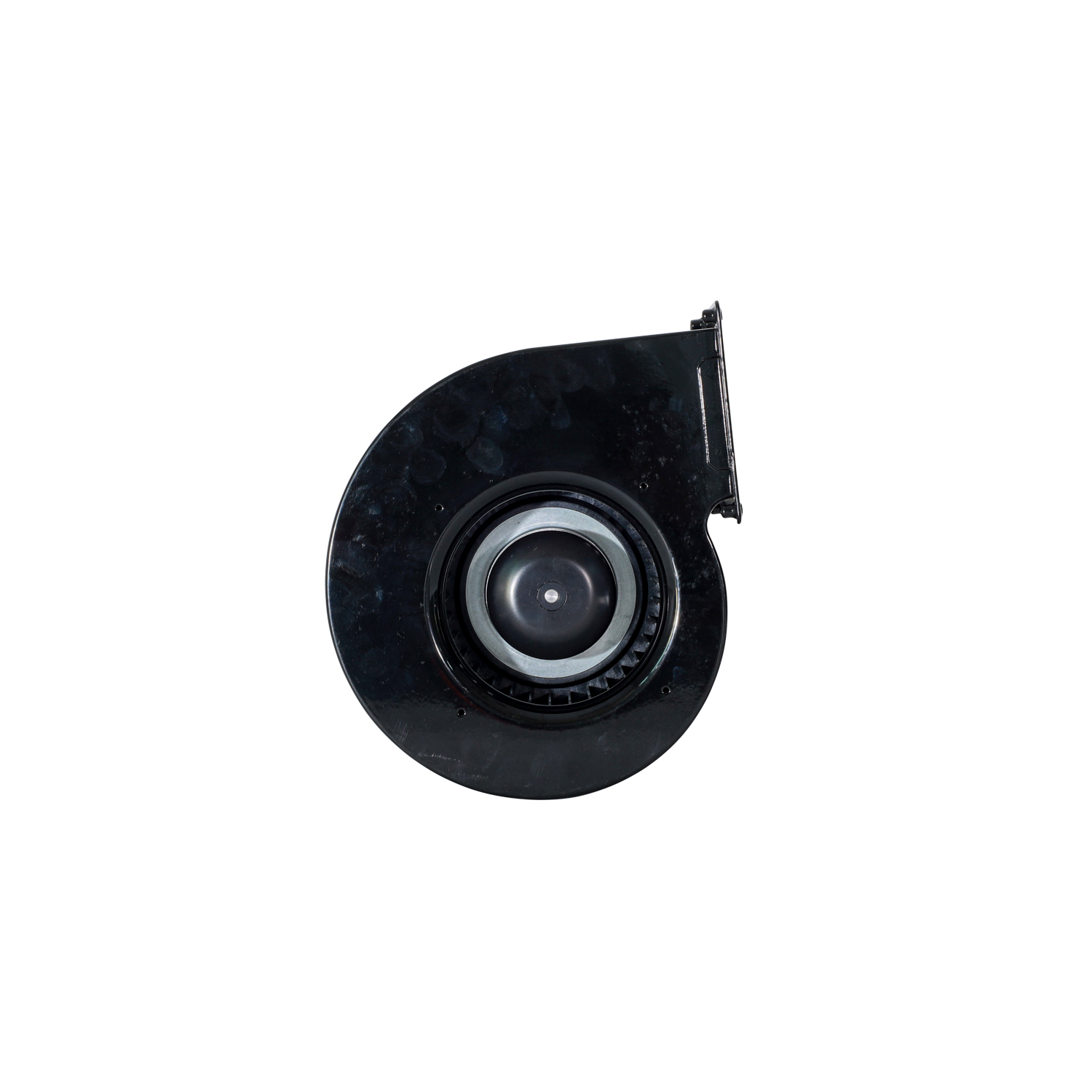

YUTEC 024VDC 048VDC 140mm 92motor single inlet blower fan
- Fan model: YUTEC-F140DC92-024M-G02;YUTEC-F140DC92-048M-G02 YUTEC-S140DC92-024M-G02;YUTEC-S140DC92-048M-G02
- Rated Voltage: 024VDC;048VDC
- Rated Current: 5.6A; 2.8A
- Rated Power: 134W
- Rated Speed: 2650RPM
- Air Flow: 580 M3/H
- Air Pressure: 600Pa
- Noise Level:70dBA
- Frequency: 50/60 Hz
- Weight:2.4KG;2.6KG
- Brand: YUTEC
Description

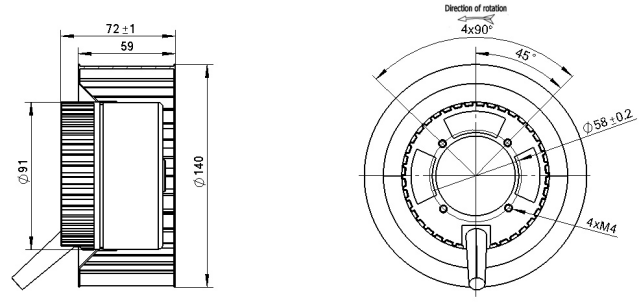

Dimensional drawing:

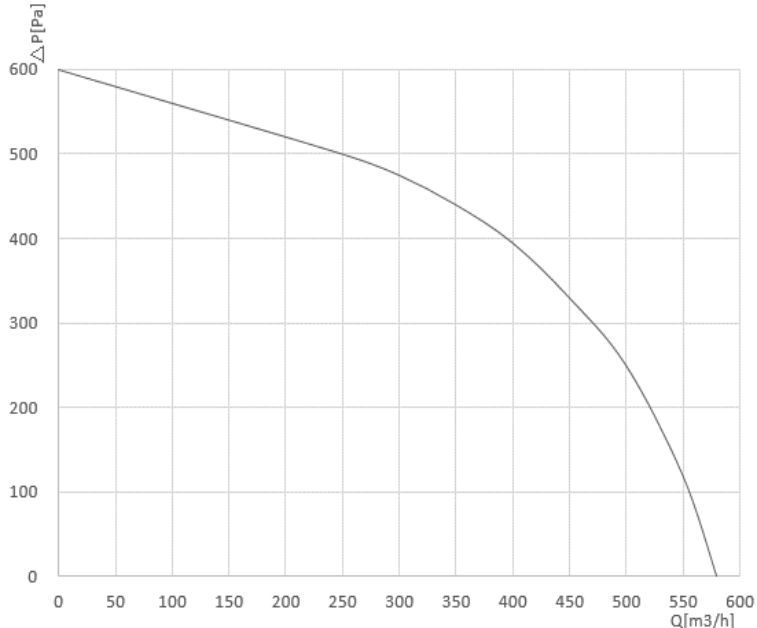

Performance Curve:
Connection Diagram:
Description:

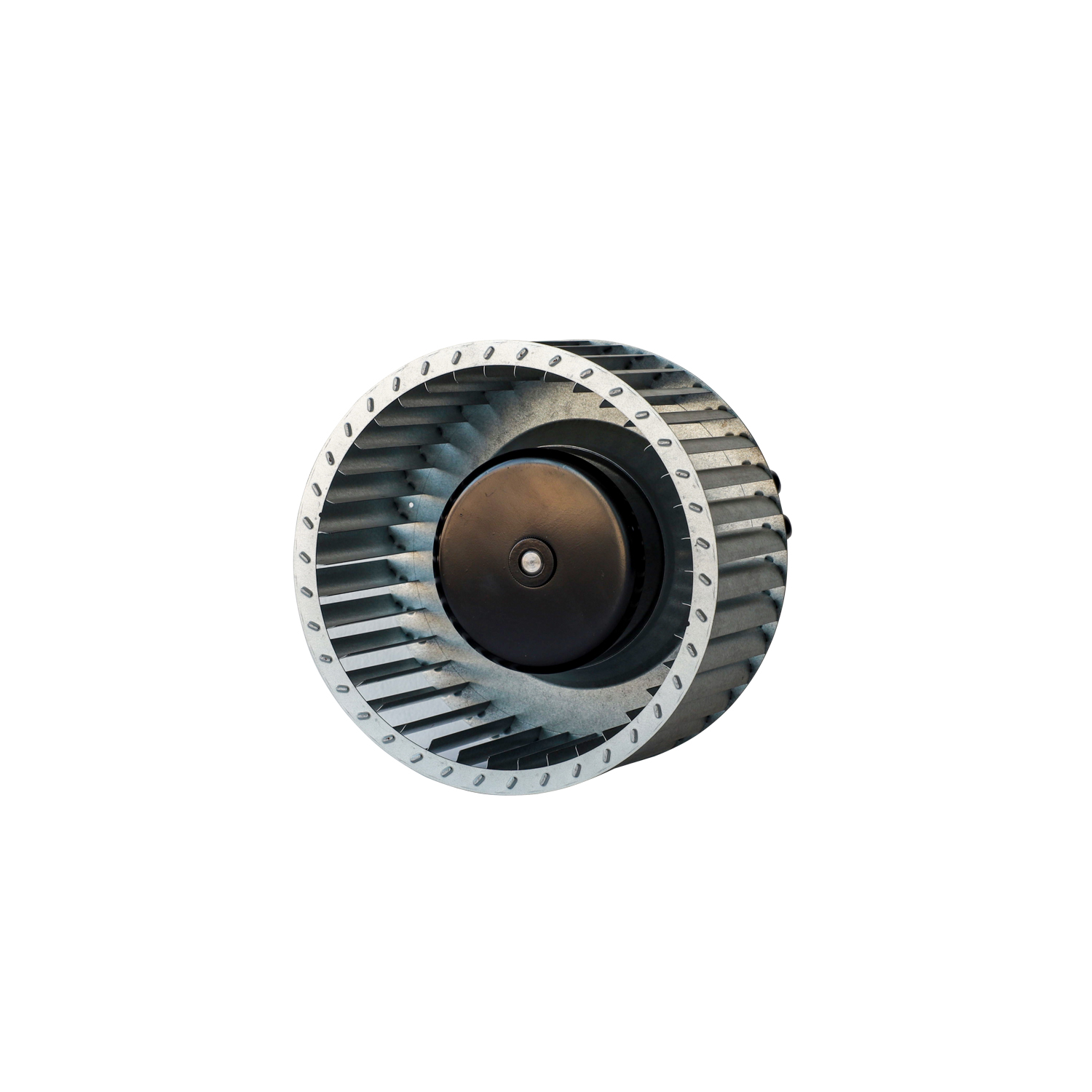

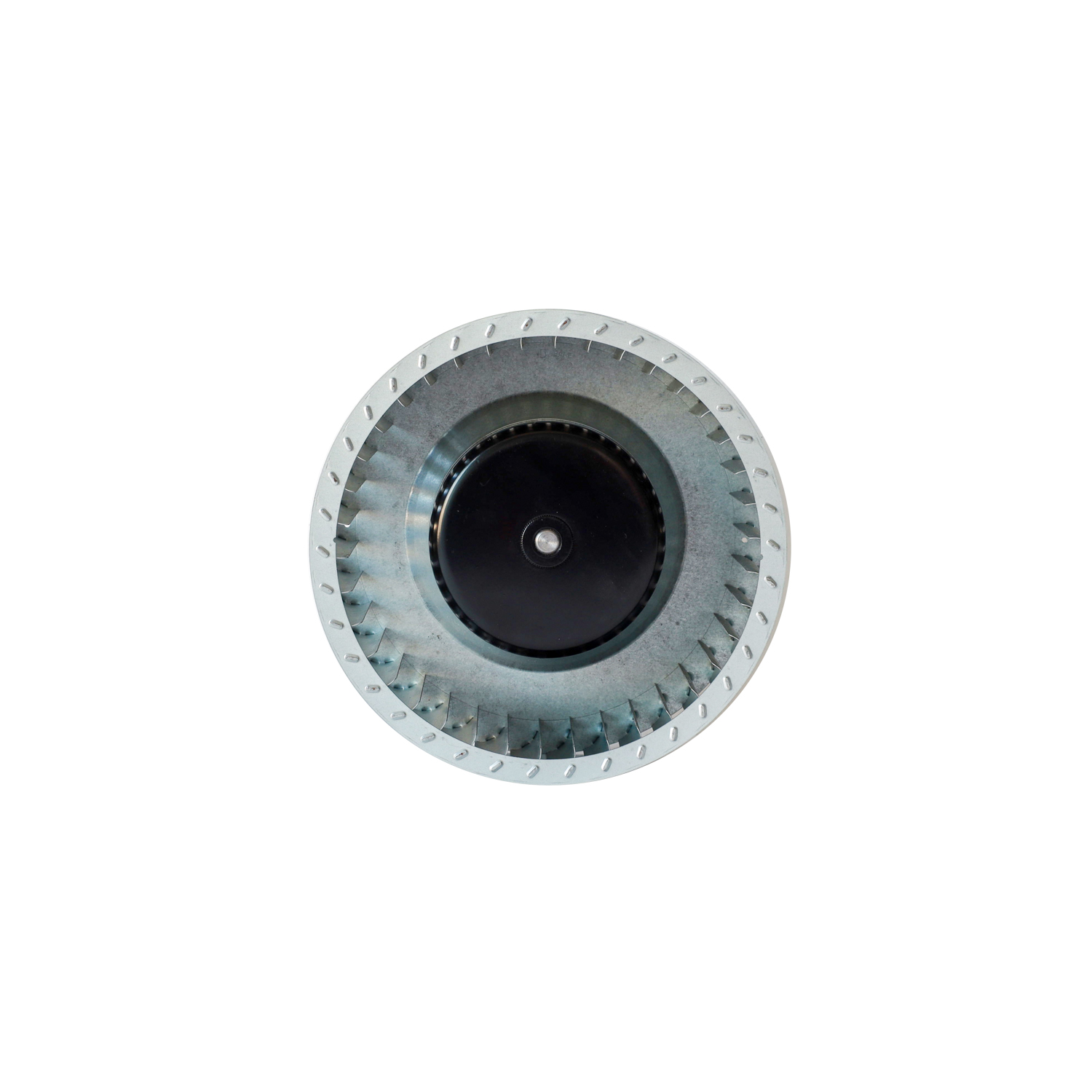

This DC forward curved centrifugal fan comes with an impeller diameter of 140mm and a motor diameter of 92mm, available in 24V and 48V DC versions. It provides high static pressure, stable airflow, and efficient heat dissipation for electrical cabinets, inverters, automation equipment, and ventilation systems. It features low noise, low power consumption, smooth operation, and long service life. The well-designed structure ensures excellent balance and easy installation. With reliable performance and strong compatibility, it is a safe, efficient, and durable cooling solution for various industrial and electrical applications.
Specifications：
Brand Name | YUTEC |
Impeller Material | Galvanized Metal Shell |
Motor Type | BLDC External Rotor Motor |
Type of Protection | IP44 |
Insulation Class | Class B |
Speed Control | 0-10VDC/PWM |
Bearing | Ball Bearing |
Signal Output | FG |
Life Expectance | 50,000 Hours |
Electrical Protection | Locked Rotor Protection |
Reverse Polarity Protection | |
Over Voltage Protection | |
Soft Start |
Competitive Advantage:
1. Easy Installation and Integration
Standard dimensions and simple wiring make installation fast and convenient. The 108mm frame fits common mounting spaces. Lightweight structure and standard design allow easy replacement or upgrade. Minimal setup time improves production efficiency for manufacturers and maintenance teams.
2. Wide Application Range
These DC forward curved centrifugal fans are widely used in control cabinets, power supplies, inverters, automation equipment, medical devices and ventilation systems. Their high pressure, compact size and low noise make them suitable for many industries. They provide reliable thermal management in various working environments.
