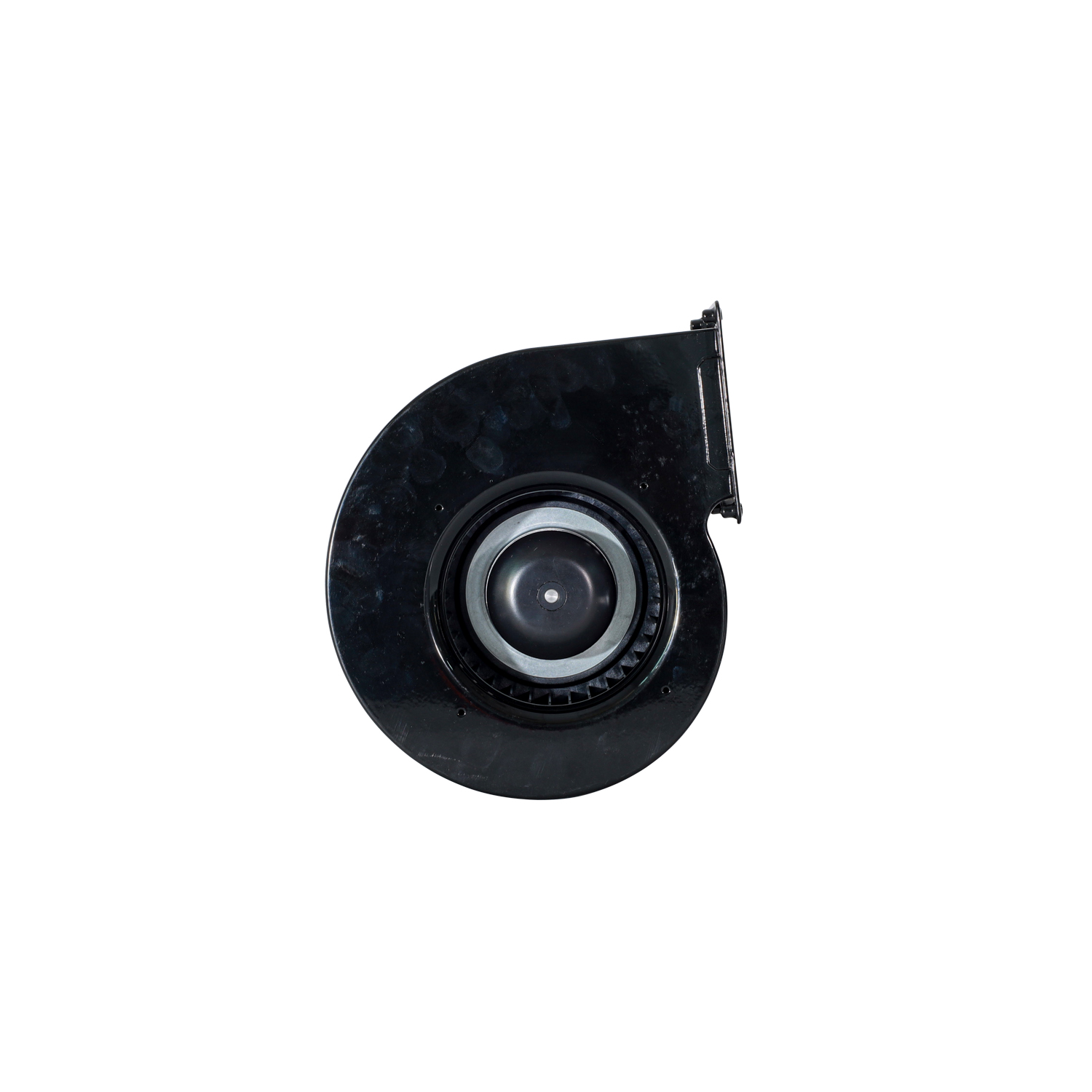

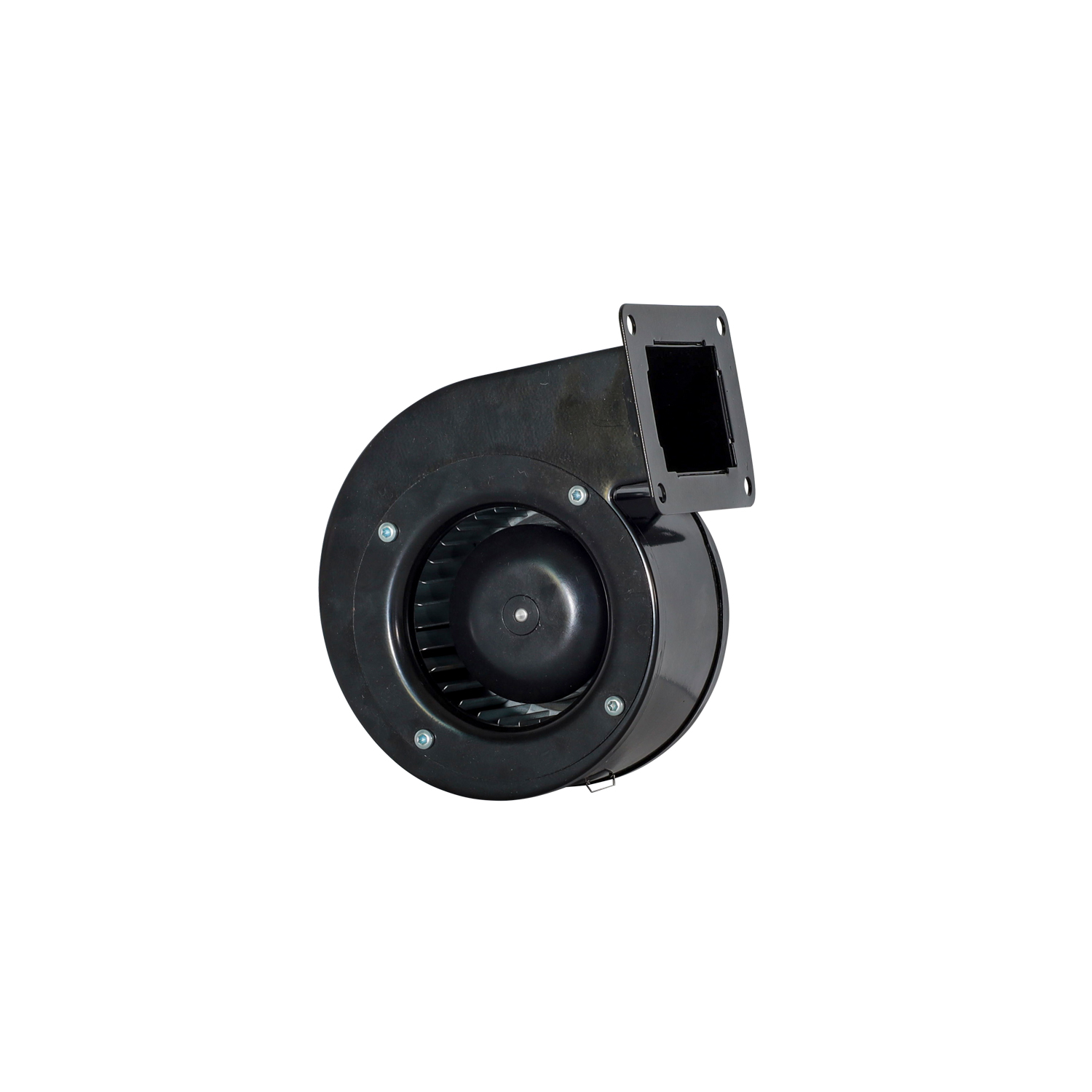

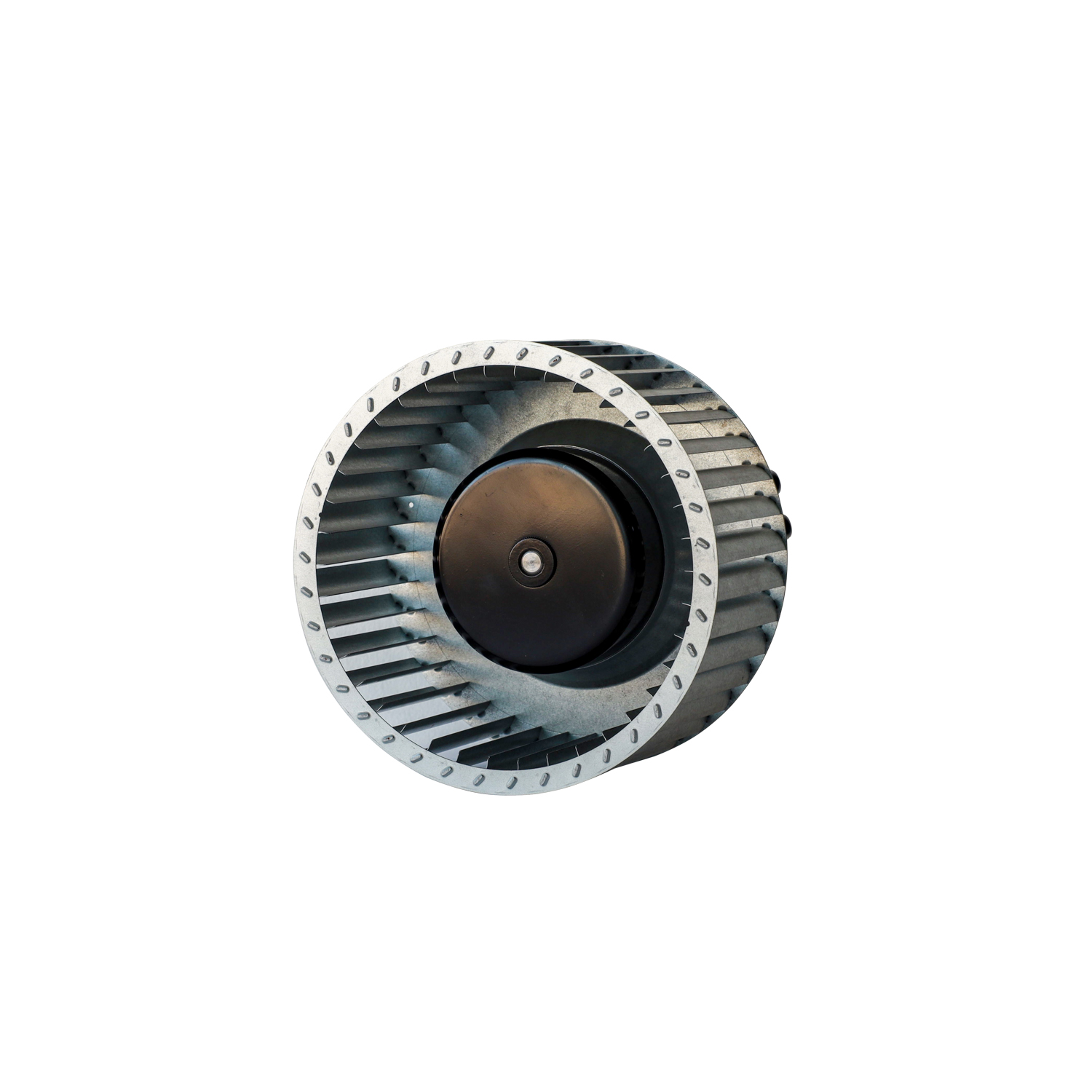

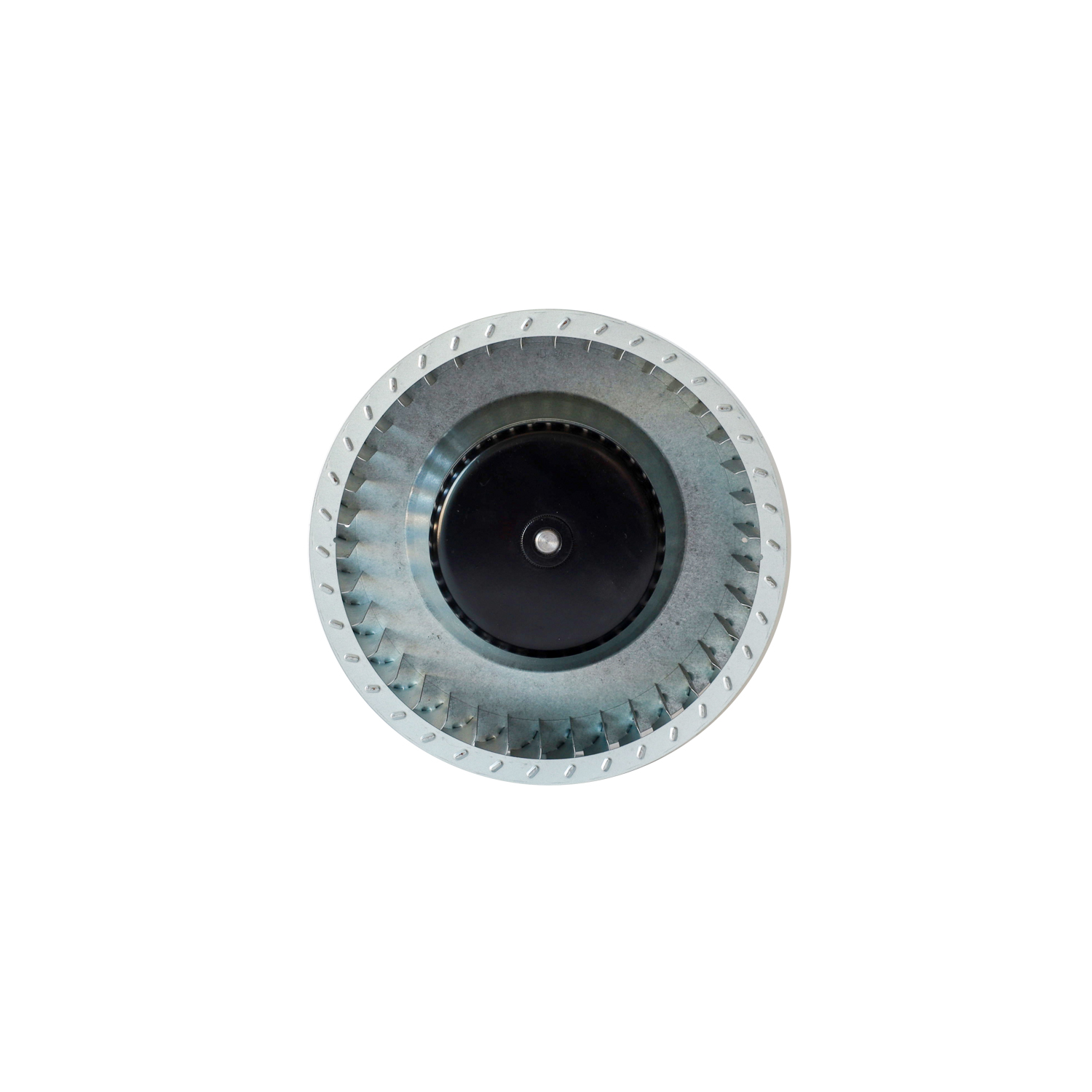

YUTEC 024VDC 048VDC 160mm 92motor Forward Curved Centrifugal Fan single inlet blower fan
- Fan model: YUTEC-F160DC92-024M-G02;YUTEC-F160DC92-048M-G02 YUTEC-S160DC92-024M-G02;YUTEC-S160DC92-048M-G02
- Rated Voltage: 024VDC;048VDC
- Rated Current: 4.8A; 2.4A
- Rated Power: 115W
- Rated Speed: 1780RPM
- Air Flow: 520M3/H
- Air Pressure: 550Pa
- Noise Level:67dBA
- Frequency: 50/60 Hz
- Weight:2.8KG;3.0KG
- Brand: YUTEC
Description

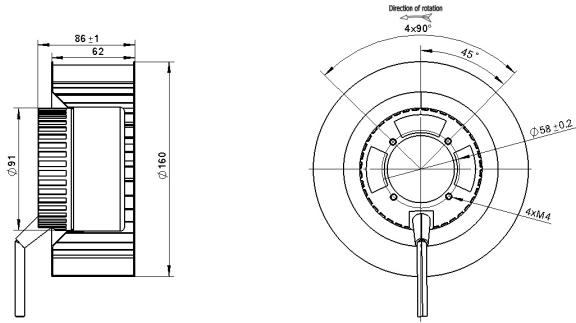

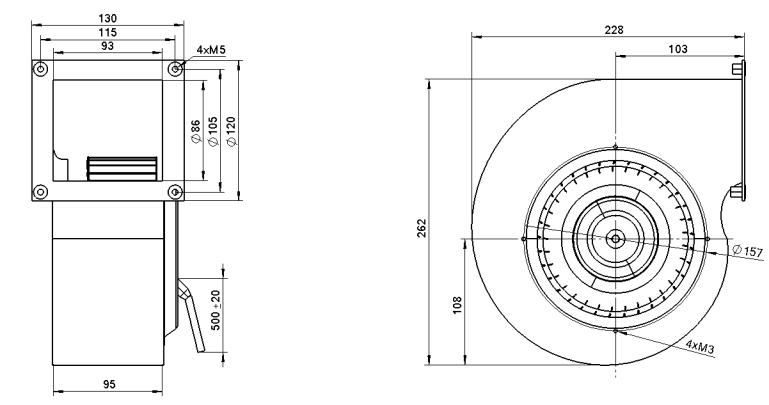

Dimensional drawing:

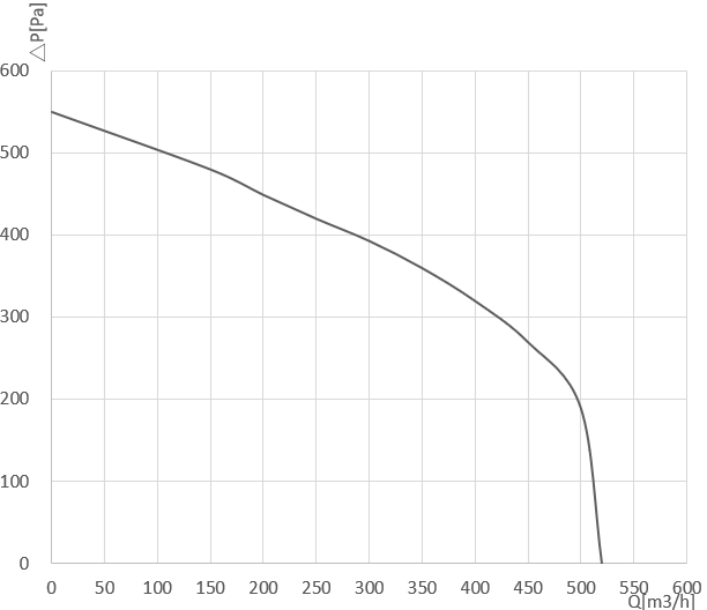

Performance Curve:
Connection Diagram:
Description:
This DC forward curved centrifugal fan operates at 24V and 48V, with a 160mm impeller diameter and 92mm motor diameter. It delivers high static pressure, stable airflow, and efficient heat dissipation, ideal for electrical cabinets, inverters, automation equipment, and ventilation systems. Designed for low noise, low power consumption, and smooth running, it ensures long service life and reliable performance. The compact and optimized structure allows easy installation and great compatibility. It is a safe, efficient, and durable cooling solution for various industrial and electrical applications.
Specifications：
Brand Name | YUTEC |
Impeller Material | Galvanized Metal Shell |
Motor Type | BLDC External Rotor Motor |
Type of Protection | IP44 |
Insulation Class | Class B |
Speed Control | 0-10VDC/PWM |
Bearing | Ball Bearing |
Signal Output | FG |
Life Expectance | 50,000 Hours |
Electrical Protection | Locked Rotor Protection |
Reverse Polarity Protection | |
Over Voltage Protection | |
Soft Start |
Competitive Advantage:
1. Excellent Heat Dissipation
The centrifugal structure produces directed airflow that efficiently removes concentrated heat.It quickly cools internal components, preventing overheating and extending equipment life. Ideal for high-density electrical devices, it ensures stable temperature control even under heavy load.
2. Safe and Reliable Operation
Operating at low voltages of 24V and 48V, the fan is safe to use and reduces electric shock risks. It has stable startup, anti-interference ability and good insulation performance. Safe, reliable and environmentally friendly, it meets industrial standards for continuous daily use.
