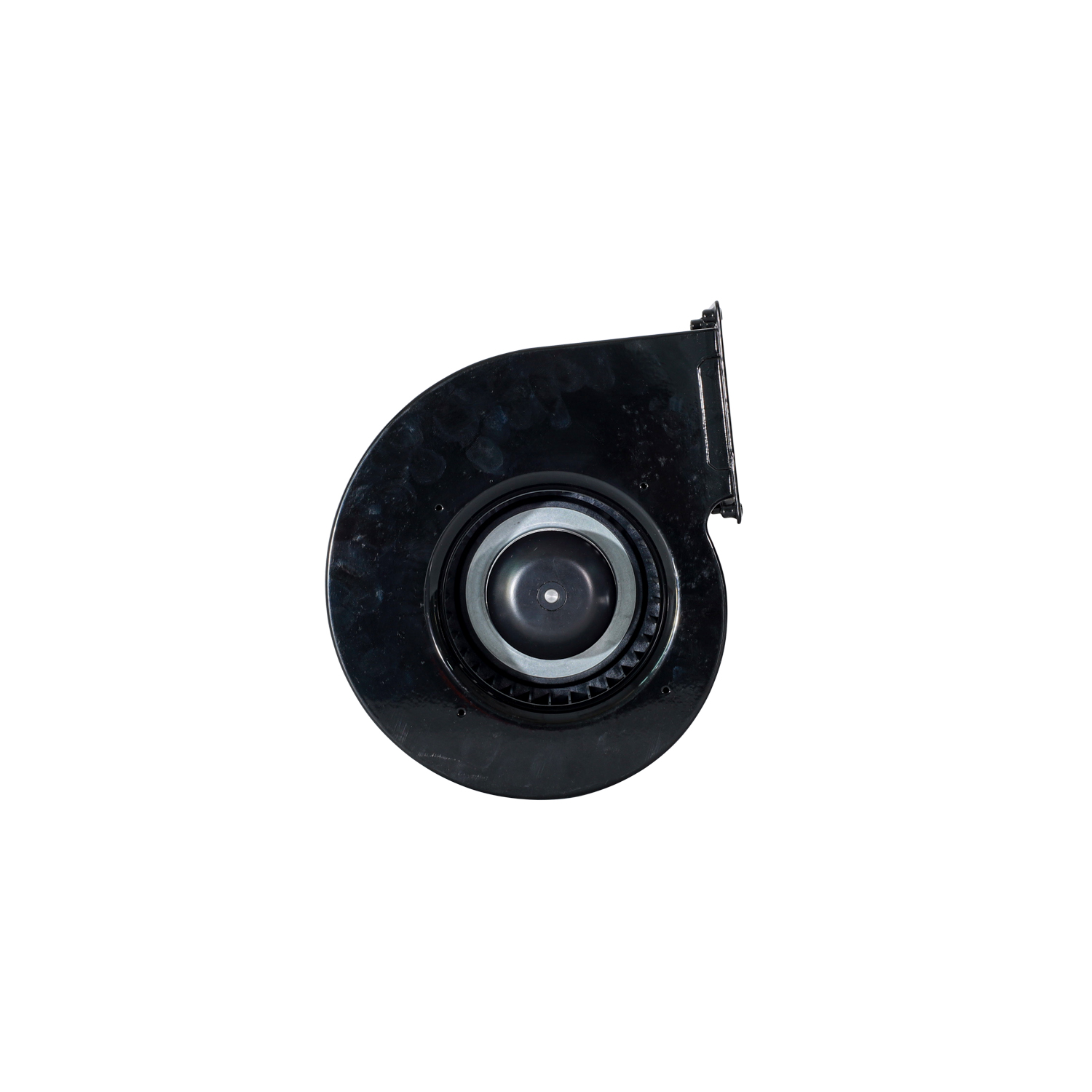

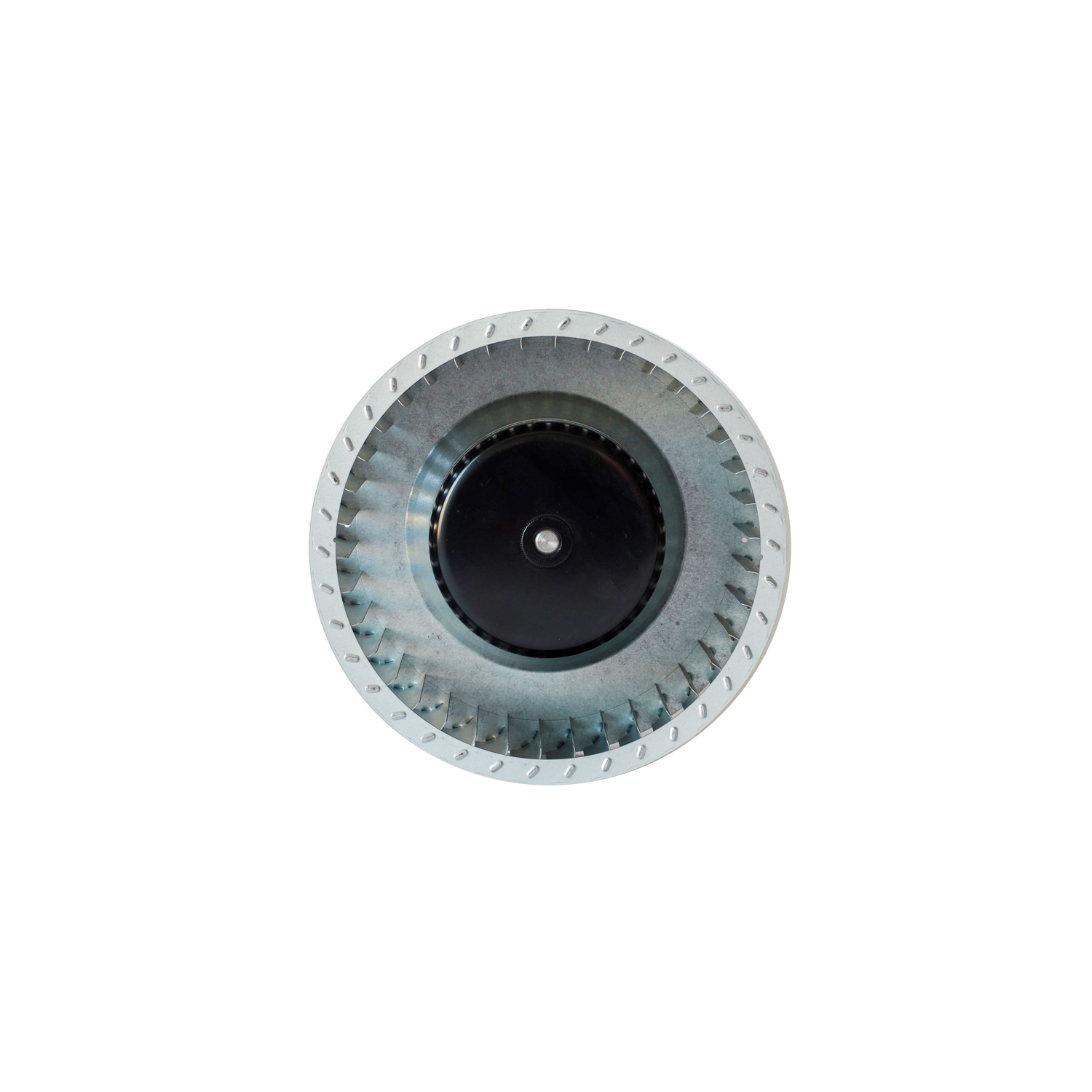

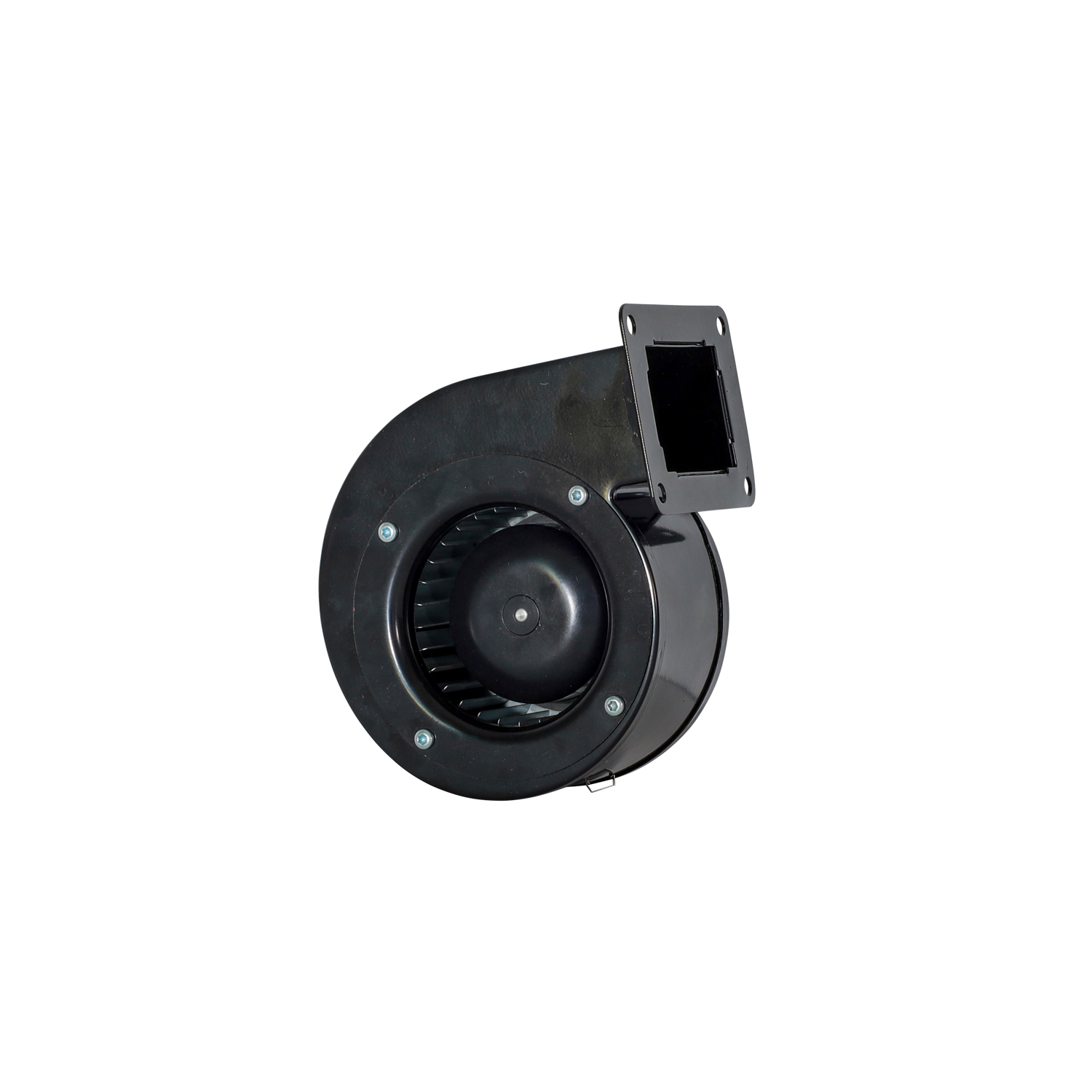

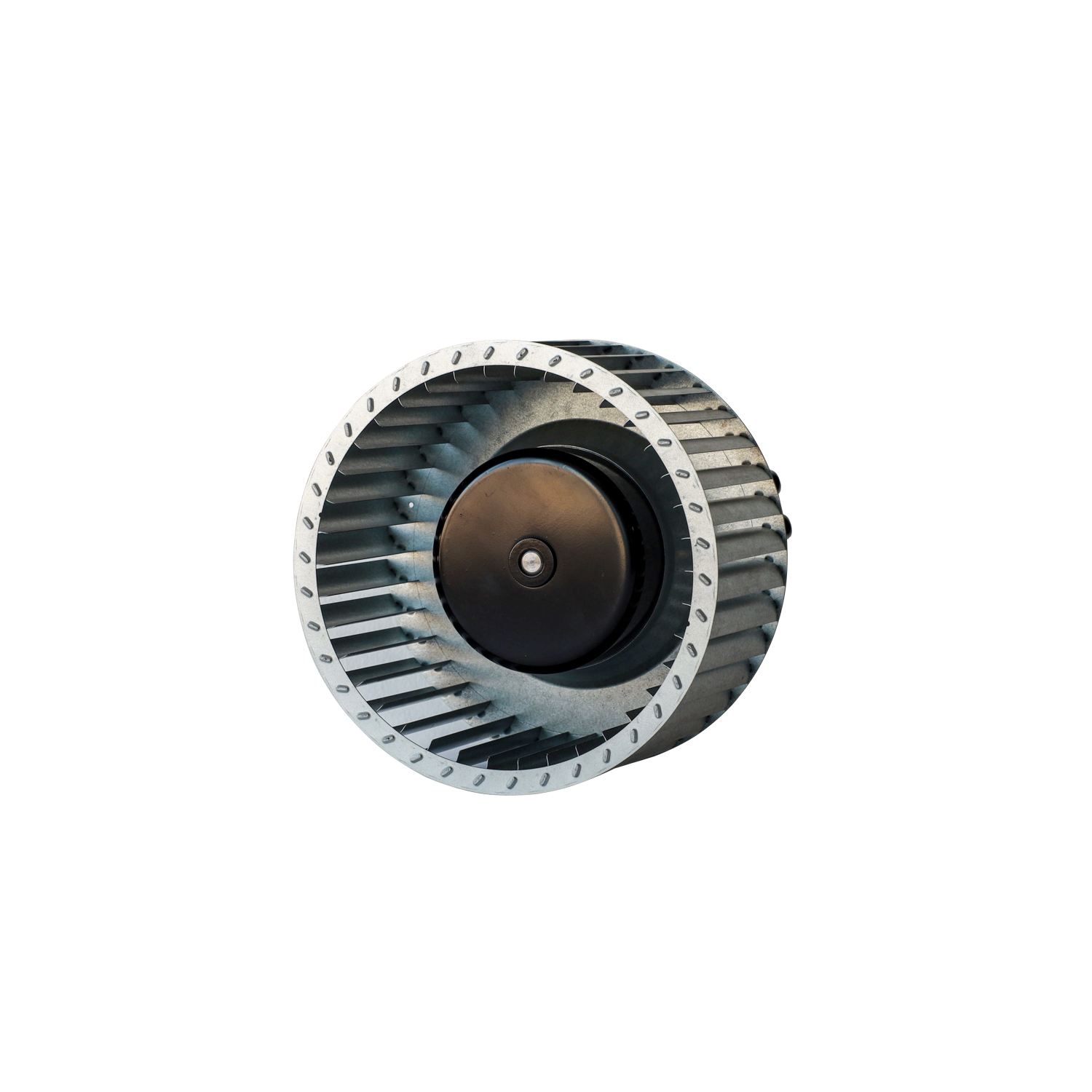

YUTEC 024VDC 048VDC 180mm 92motor Forward Curved Centrifugal Fan single inlet blower fan
- Fan model: YUTEC-F180DC92-024H-G02;YUTEC-F180DC92-048H-G02 YUTEC-S180DC92-024H-G02;YUTEC-S180DC92-048H-G02
- Rated Voltage: 024VDC;048VDC
- Rated Current: 7.5A; 3.75A
- Rated Power: 180W
- Rated Speed: 1600RPM
- Air Flow: 1300M3/H
- Air Pressure: 470Pa
- Noise Level:70dBA
- Frequency: 50/60 Hz
- Weight:3.9KG;4.3KG
- Brand: YUTEC
Description

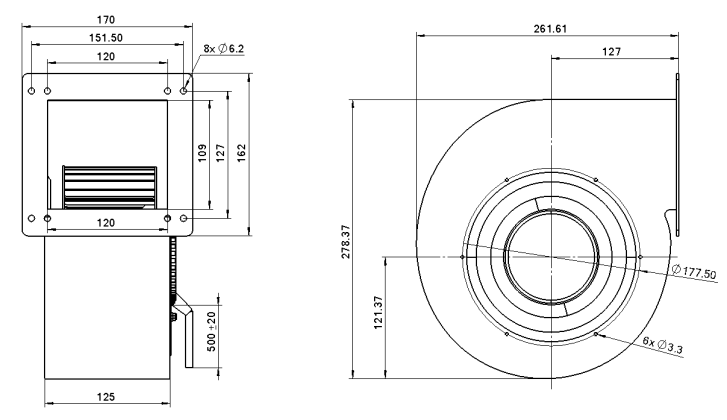

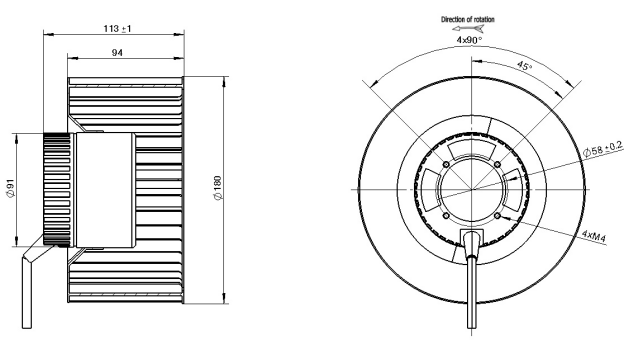

Dimensional drawing:

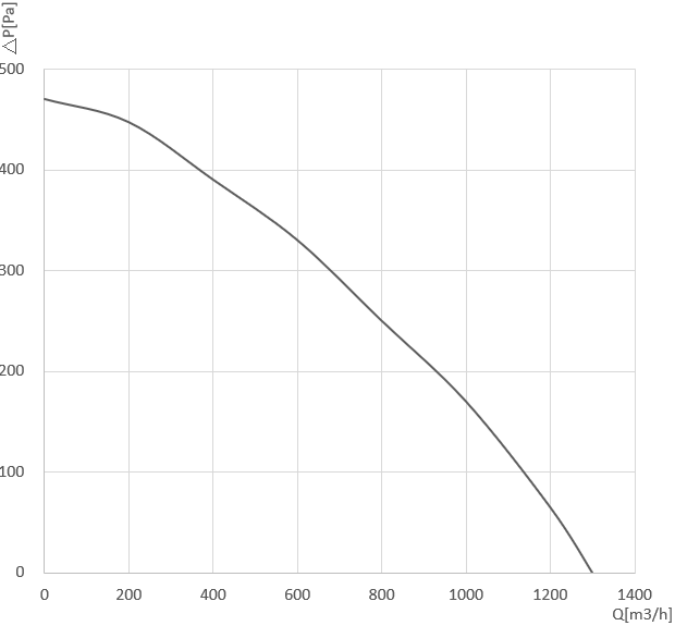

Performance Curve:
Connection Diagram:
Description:
This DC forward curved centrifugal fan operates at 24V and 48V, with an impeller diameter of 180mm and a motor diameter of 92mm. It provides high static pressure, strong airflow, and efficient heat dissipation for ventilation and cooling in electrical cabinets, inverters, power supplies, and industrial equipment. It features low noise, low power consumption, stable performance, and long service life. The optimized structure ensures smooth operation and easy installation. With reliable quality and wide compatibility, it is an efficient and durable cooling solution for various industrial applications.
Specifications：
Brand Name | YUTEC |
Impeller Material | Galvanized Metal Shell |
Motor Type | BLDC External Rotor Motor |
Type of Protection | IP44 |
Insulation Class | Class B |
Speed Control | 0-10VDC/PWM |
Bearing | Ball Bearing |
Signal Output | FG |
Life Expectance | 50,000 Hours |
Electrical Protection | Locked Rotor Protection |
Reverse Polarity Protection | |
Over Voltage Protection | |
Soft Start |
Competitive Advantage:
1. High Static Pressure Performance
Our DC forward curved centrifugal fan provides excellent static pressure, making it highly efficient even in restricted or ducted environments. It maintains strong and stable airflow while facing resistance from filters, ducts, or compact enclosures. This makes it far more suitable than standard fans for equipment that needs reliable ventilation under pressure. With 24V and 48V versions, it delivers consistent performance for industrial cabinets, inverters, and ventilation systems.
2. Low Noise & Smooth Operation
Designed with optimized forward-curved blades, this fan runs quietly with low vibration. Precision balancing reduces turbulence and operational noise, creating a comfortable working environment. It performs smoothly even during long‑hour continuous operation. The stable 24V/48V DC drive further enhances smooth running and reduces wear. This feature is ideal for noise‑sensitive equipment and indoor applications.
3. High Energy Efficiency
This DC centrifugal fan offers outstanding energy efficiency. It converts power into effective airflow with minimal waste, greatly lowering power consumption. The 24V and 48V DC design ensures stable and economical operation, reducing long‑term running costs. High efficiency also reduces internal heat generation, protecting both the fan and the equipment it cools. It is an eco-friendly and cost-effective cooling solution.
