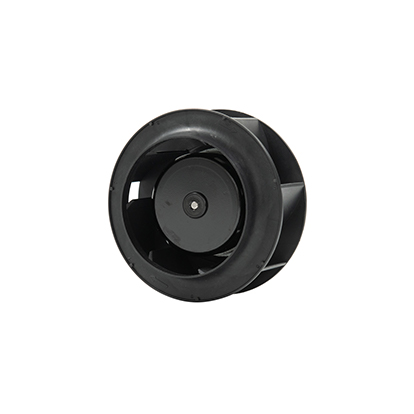

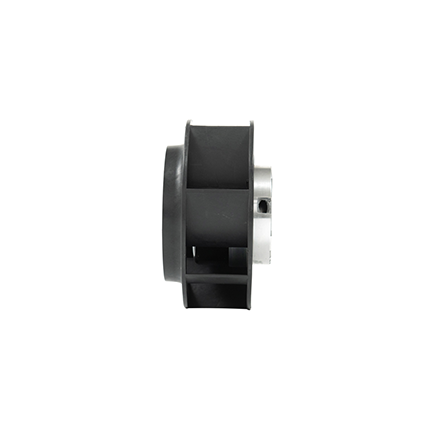

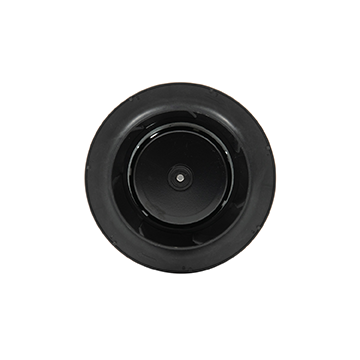

YUTEC 115VAC 230VAC 155mm EC centrifugal fan motor with Plastic impeller

Description

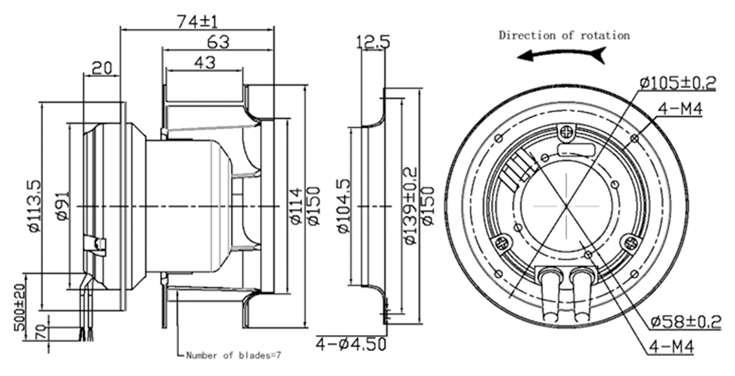

Dimensional drawing:

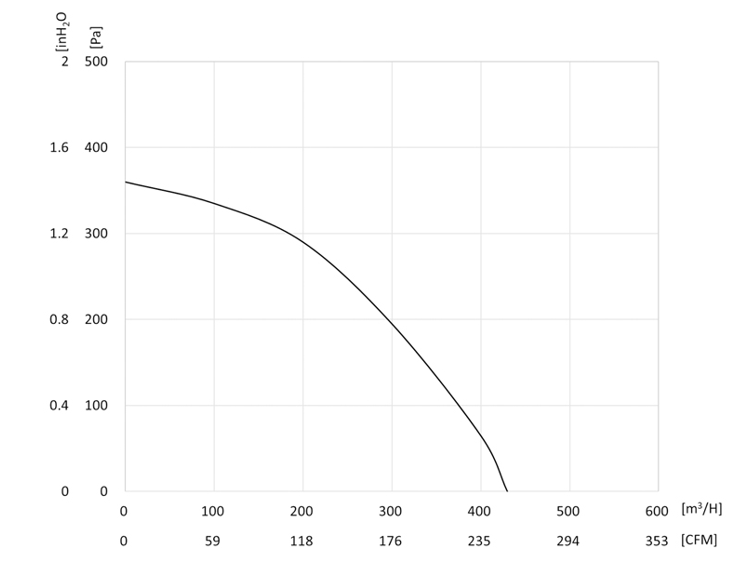

Performance Curve:

Connection Diagram:

Description:

The 155 mm centrifugal fan paired with 230VAC single-phase power offers a robust solution for industrial, commercial, and residential systems requiring reliable airflow in compact spaces. With a blade diameter of 155 mm (~6.1 inches), this fan balances high-pressure air delivery with a footprint small enough to integrate into tight enclosures, making it ideal for equipment cooling, ventilation, and process air management. In summary, the 155 mm centrifugal fan with 230VAC delivers power, adaptability, and reliability in a compact package, addressing the needs of modern systems where space, efficiency, and global compliance are paramount.

Specifications：

Competitive Advantage:

1. Efficient Airflow for Constrained Environments

Designed for medium-to-high static pressure applications, the 155 mm centrifugal impeller generates a focused airstream, overcoming resistance from filters, ducting, or heat exchangers. Its backward-curved or radial blade configuration (common in this size range) ensures stable airflow rates (typically 50–300 CFM, depending on motor RPM) without excessive noise, critical for applications like:

HVAC systems: Space-saving air handlers for apartments or small offices.

Electronics cooling: Cabinet ventilation for servers, industrial PCs, or telecom gear.

Kitchen/Bathroom Exhausts: Compact hoods and ducted ventilation systems.

2. Universal 230VAC Compatibility

Powered by 230VAC alternating current (standard in Europe, Asia, and Australia), this fan eliminates the need for voltage transformers in global markets, streamlining installation. The single-phase motor simplifies wiring and reduces maintenance complexity compared to three-phase alternatives, while offering adjustable speed control (via PWM or VFD) for energy-efficient operation.

3. Durable Design for Demanding Conditions

Constructed with corrosion-resistant materials (e.g., galvanized steel housing, UL94V-0 flame-retardant plastics) and ball-bearing or sleeve-bearing motors, the 155 mm fan endures continuous duty cycles (24/7 operation) with minimal wear. IP54-rated models resist dust and water splashes, extending service life in harsh environments like:

Factory machinery: Cooling for CNC routers, laser cutters, or welding stations.

Agricultural equipment: Ventilation in greenhouses or livestock housing.

Medical devices: Sterile air circulation in lab equipment or fume hoods.
