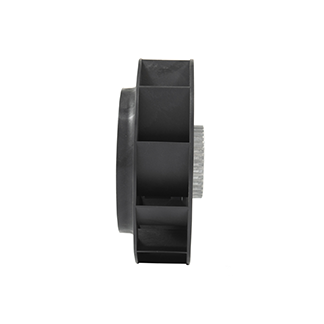

YUTEC 115VAC 230VAC 220mm 92motor EC centrifugal fan motor with Plastic impeller
- Fan model: YUTEC-B220EC92-115H-P02; YUTEC-B220EC92-230H-P02
- Rated Voltage: 115VAC;230VAC
- Rated Current: 2.7A;1.35A
- Rated Power: 175W
- Rated Speed: 3560RPM
- Air Flow: 1315M3/H
- Air Pressure: 970Pa
- Noise Level:76dBA
- Frequency: 50/60Hz
- Weight: 2.2KG
- Brand: YUTEC
Description

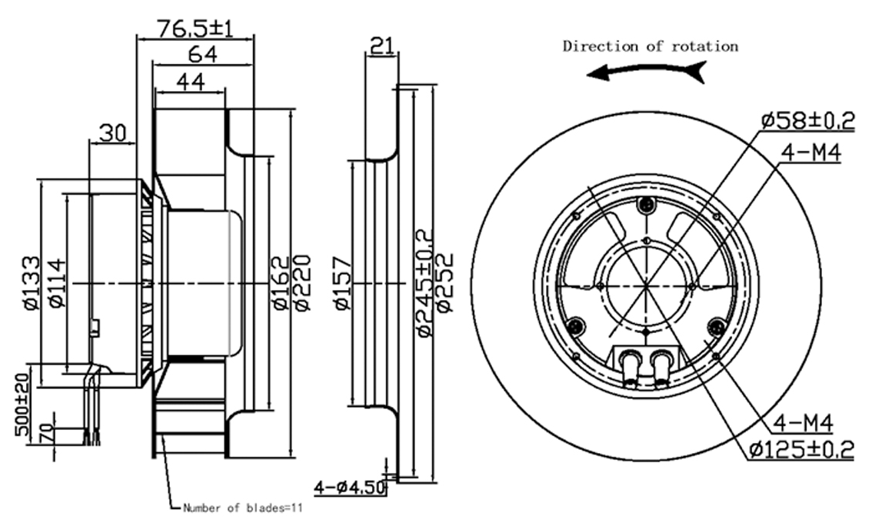

Dimensional drawing:

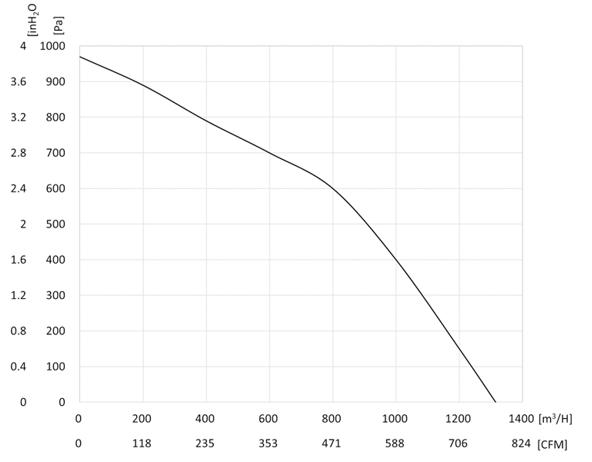

Performance Curve:
Connection Diagram:
Description：
Architectsfavor EC backward curved centrifugal fans for WELL/BREEAM-certified projects due to their 90% efficiency and zero ozone-depleting emissions. The backward curved design minimizes noise (as low as 52 dBA), enabling duct placement near offices without acoustic insulation. Their EC motor’s soft-start function reduces peak power demand by 70%, easing grid strain. Paired with energy recovery ventilators (ERVs), they cut HVAC carbon footprints by 25% in LEED Platinum buildings.
Specifications：
Brand Name | YUTEC |
Impeller Material | PA66+GF25 |
Motor Type | BLDC External Rotor Motor |
Type of Protection | IP44 |
Insulation Class | Class B |
Speed Control | 0-10VDC/PWM |
Bearing | Ball Bearing |
Signal Output | FG |
Life Expectance | 50,000 Hours |
Electrical Protection | Locked Rotor Protection |
Reverse Polarity Protection | |
Over Voltage Protection | |
Soft Start |
Competitive Advantage:
1. Reduced Carbon Footprint
By consuming 20–40% less power than AC fans, EC backward curved models significantly lower CO₂ emissions. This aligns with corporate sustainability goals, earning LEED points or carbon credits in green building projects.
2. Self-Limiting Power Characteristic
As static pressure increases, EC backward curved fans plateau power demand, preventing motor overloads. This "self-protecting" feature reduces risk of failures in applications like pharmaceutical cleanrooms, where downtime is costly.
2. Customizable for Special Environments
Options include explosion-proof motors (ATEX Zone 2), stainless steel casings for corrosive environments, or high-temperature variants (up to 120°C) for foundries or baking ovens.
