YUTEC 310mm 380VAC backward curved centrifugal fan with 102motor

Description

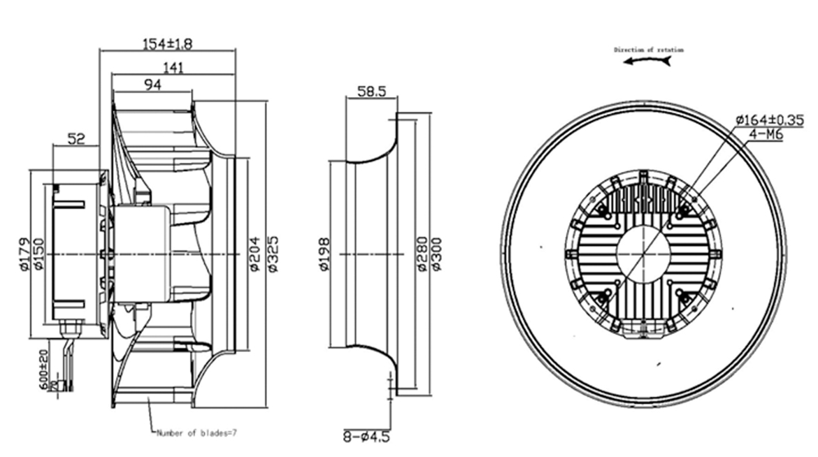

Dimensional drawing:

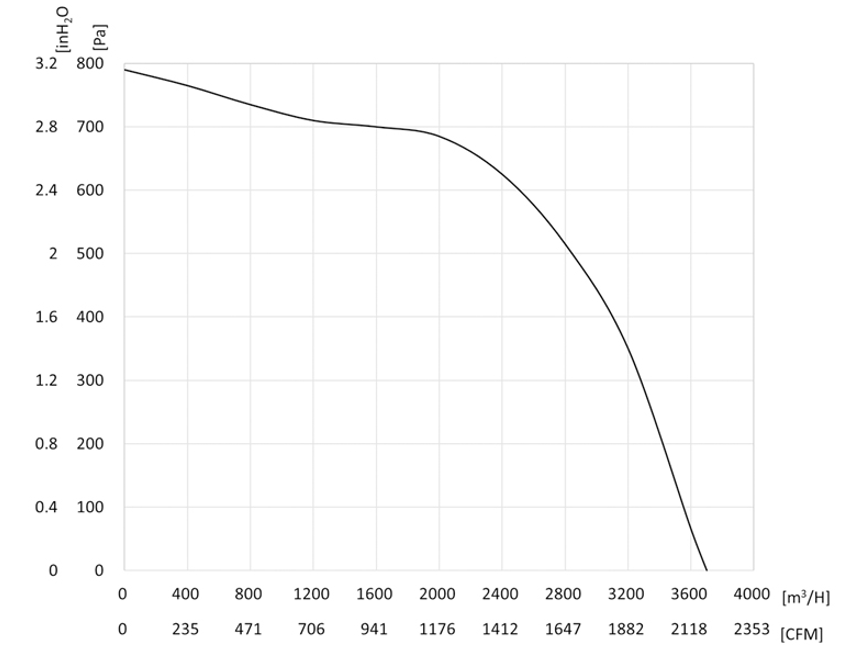

Performance Curve:

Connection Diagram:

Description：

EC fans are defined by their superior energy efficiency, leveraging brushless DC technology to achieve motor efficiencies exceeding 90% (compared to 60-70% for AC motors). By intelligently regulating speed via electronic controllers, they avoid "over-sizing" energy waste common in fixed-speed systems. This makes them ideal for variable air volume (VAV) applications, where energy savings of 20-50% are achievable compared to traditional fans.

Specifications：

Competitive Advantage:

1. Reduced Noise Levels

EC fans operate quietly due to their brushless design and electronic speed control. Traditional AC fans generate noise from mechanical friction and resonance, while EC fans eliminate these issues by removing brushes and using soft-start technology. For instance, in hospitals or libraries, EC fans reduce noise by 10–15 dB compared to AC models, creating a quieter environment. Their quiet operation also benefits residential HVAC systems, enhancing comfort without sacrificing performance.

2. Long Lifespan and Durability

The brushless design of EC fans minimizes wear on critical components like carbon brushes and commutators, which are common failure points in traditional DC motors. With high-quality bearings and sealed construction, EC fans achieve lifespans of 50,000–80,000 hours, compared to 20,000–30,000 hours for AC fans. This durability reduces maintenance costs and downtime, making EC fans ideal for continuous-operation applications like industrial ventilation or greenhouses.
