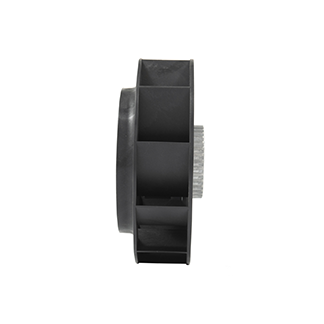

YUTEC 355mm backward curved centrifugal fans for railway
- Fan model: YUTEC-B355EC102-115H-P12; YUTEC-B355EC102-230H-P12
- Rated Voltage: 115VAC;230VAC
- Rated Current: 4A;2A
- Rated Power: 450W
- Rated Speed: 1900RPM
- Air Flow: 4400M3/H
- Air Pressure: 650Pa
- Noise Level:76dBA
- Frequency: 50/60Hz
- Weight: 5.95KG
- Brand: YUTEC
Description

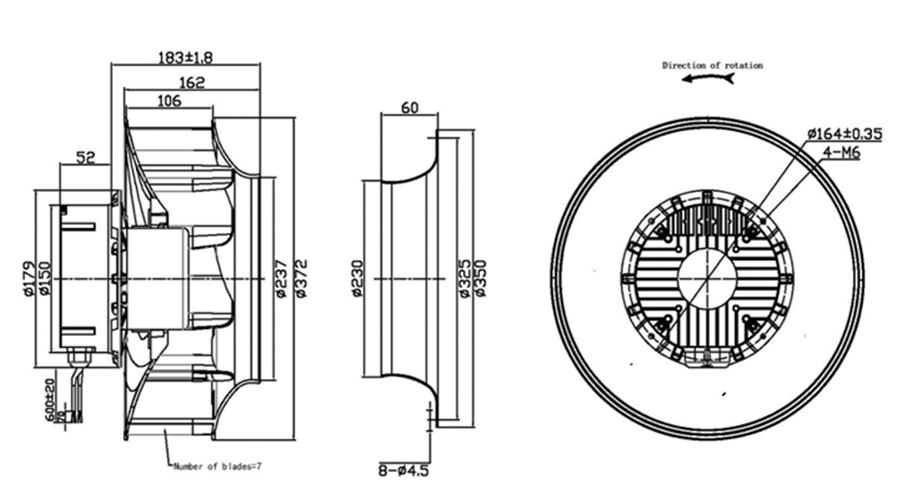

Dimensional drawing:

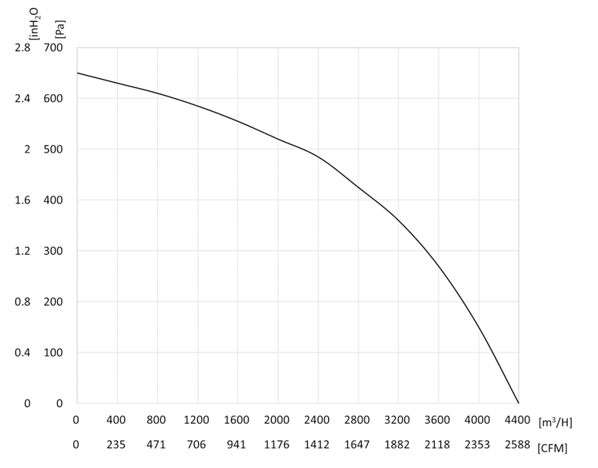

Performance Curve:

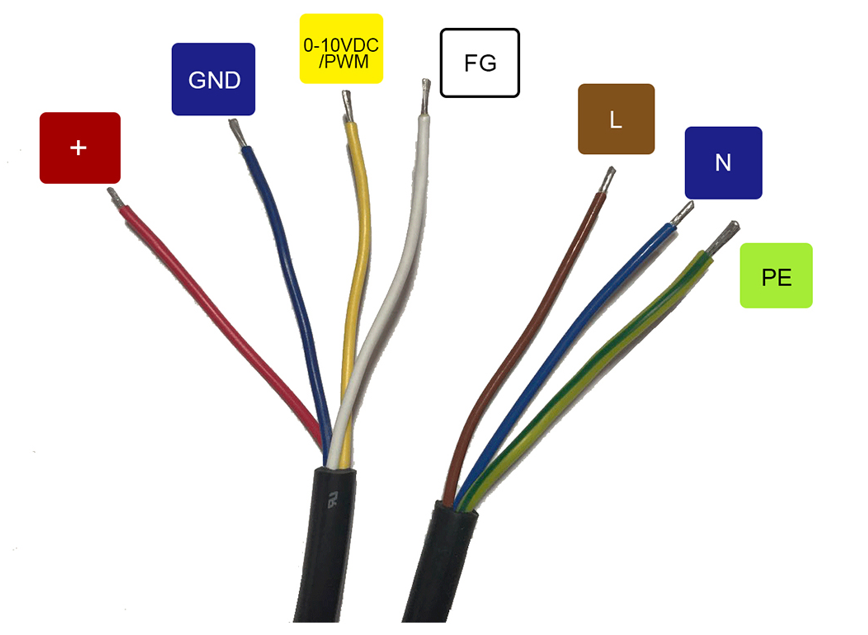

Connection Diagram:
Description：
Future-Proof Technology
EC fans represent the future of ventilation technology, offering compatibility with IoT and smart building systems. Their ability to integrate with predictive maintenance platforms and adapt to renewable energy sources positions them as a sustainable choice for modern infrastructure.
Specifications：
Brand Name | YUTEC |
Impeller Material | PA66+GF25 |
Motor Type | BLDC External Rotor Motor |
Type of Protection | IP44 |
Insulation Class | Class B |
Speed Control | 0-10VDC/PWM |
Bearing | Ball Bearing |
Signal Output | FG |
Life Expectance | 50,000 Hours |
Electrical Protection | Locked Rotor Protection |
Reverse Polarity Protection | |
Over Voltage Protection | |
Soft Start |
Competitive Advantage:
1. Reduced Carbon Footprint
EC fans lower greenhouse gas emissions by consuming less energy and reducing reliance on fossil fuel-based power. Their efficiency aligns with global sustainability goals, such as net-zero targets. For example, in large commercial buildings, switching to EC fans can cut annual CO2 emissions by hundreds of tons, supporting corporate ESG initiatives.
2. Future-Proof Technology
EC fans are designed for integration with IoT and smart building systems, enabling remote monitoring, predictive maintenance, and energy optimization. Their digital interfaces (e.g., Modbus, BACnet) allow seamless communication with building management platforms. For example, in smart cities, EC fans contribute to energy-efficient infrastructure, adapting to future technological advancements.
