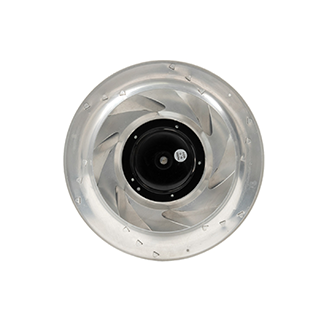

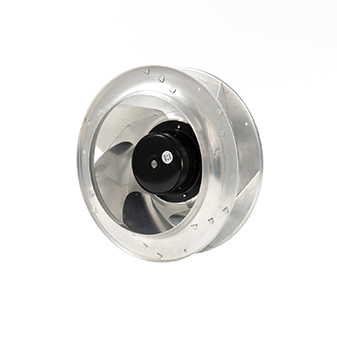

YUTEC 380VAC 400mm backward curved centrifugal fans with 102motor for kitchen
- Fan model: YUTEC-B400EC102-380L-A02
- Rated Voltage: 380VAC
- Rated Current: 1.5A
- Rated Power: 550W
- Rated Speed: 1660RPM
- Air Flow: 5800M3/H
- Air Pressure: 720Pa
- Noise Level:78dBA
- Frequency: 50/60Hz
- Brand: YUTEC
Description

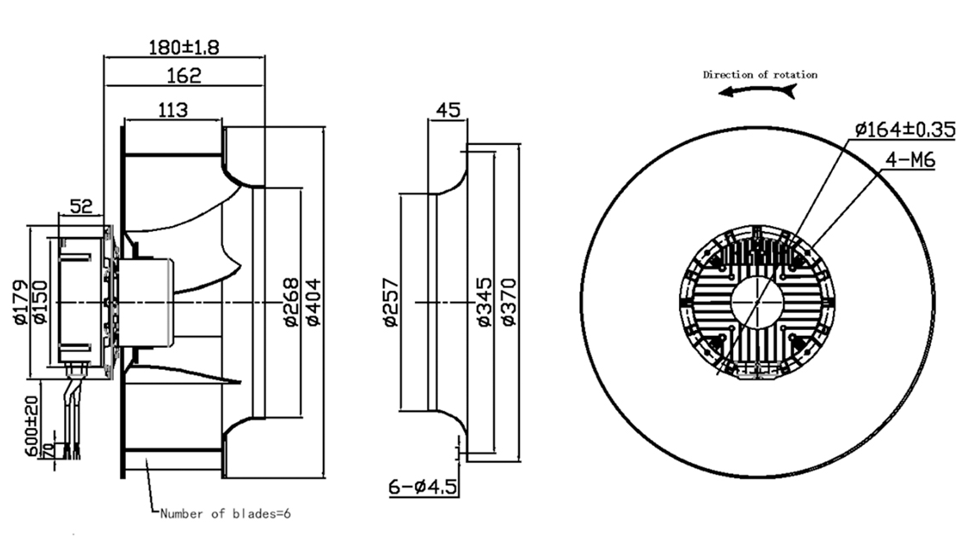

Dimensional drawing:

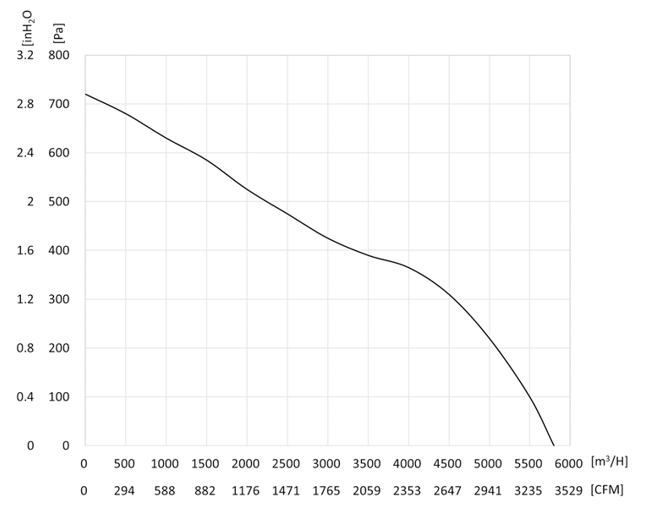

Performance Curve:
Connection Diagram:
Description：
Environmental Adaptability
EC fans are designed to withstand harsh conditions, with IP54/IP65 protection ratings for dust and moisture resistance. This makes them suitable for industrial settings, agricultural greenhouses, and outdoor installations where traditional fans might fail.
Specifications：
Brand Name | YUTEC |
Impeller Material | Aluminum Alloy Sheet |
Motor Type | BLDC External Rotor Motor |
Type of Protection | IP44 |
Insulation Class | Class B |
Speed Control | 0-10VDC/PWM |
Bearing | Ball Bearing |
Signal Output | FG |
Life Expectance | 50,000 Hours |
Electrical Protection | Locked Rotor Protection |
Reverse Polarity Protection | |
Over Voltage Protection | |
Soft Start |
Competitive Advantage:
1. Reduced Electrical Harmonics
EC fans produce minimal electrical harmonics due to their sine-wave power output, unlike AC fans that generate harmonic distortions. This improves power quality and reduces interference with sensitive electronics. For example, in data centers, EC fans prevent voltage fluctuations that could damage servers.
2. Scalability for Large Systems
EC fans can be networked in parallel to handle high airflow demands, such as in industrial ventilation or large HVAC systems. Their electronic controllers synchronize operation, ensuring balanced airflow and energy efficiency. For example, in manufacturing plants, EC fans scale to meet ventilation needs without excessive energy use.
