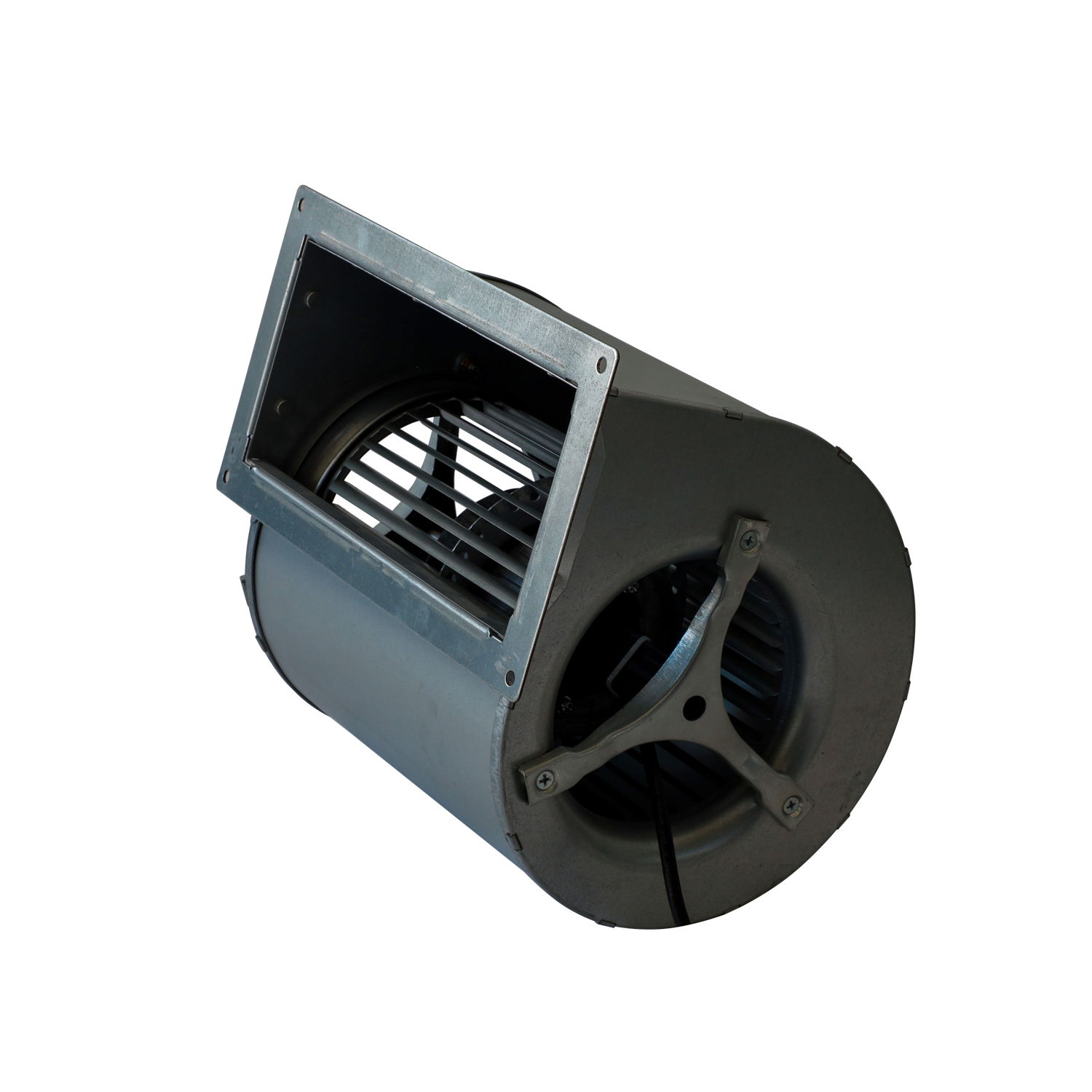

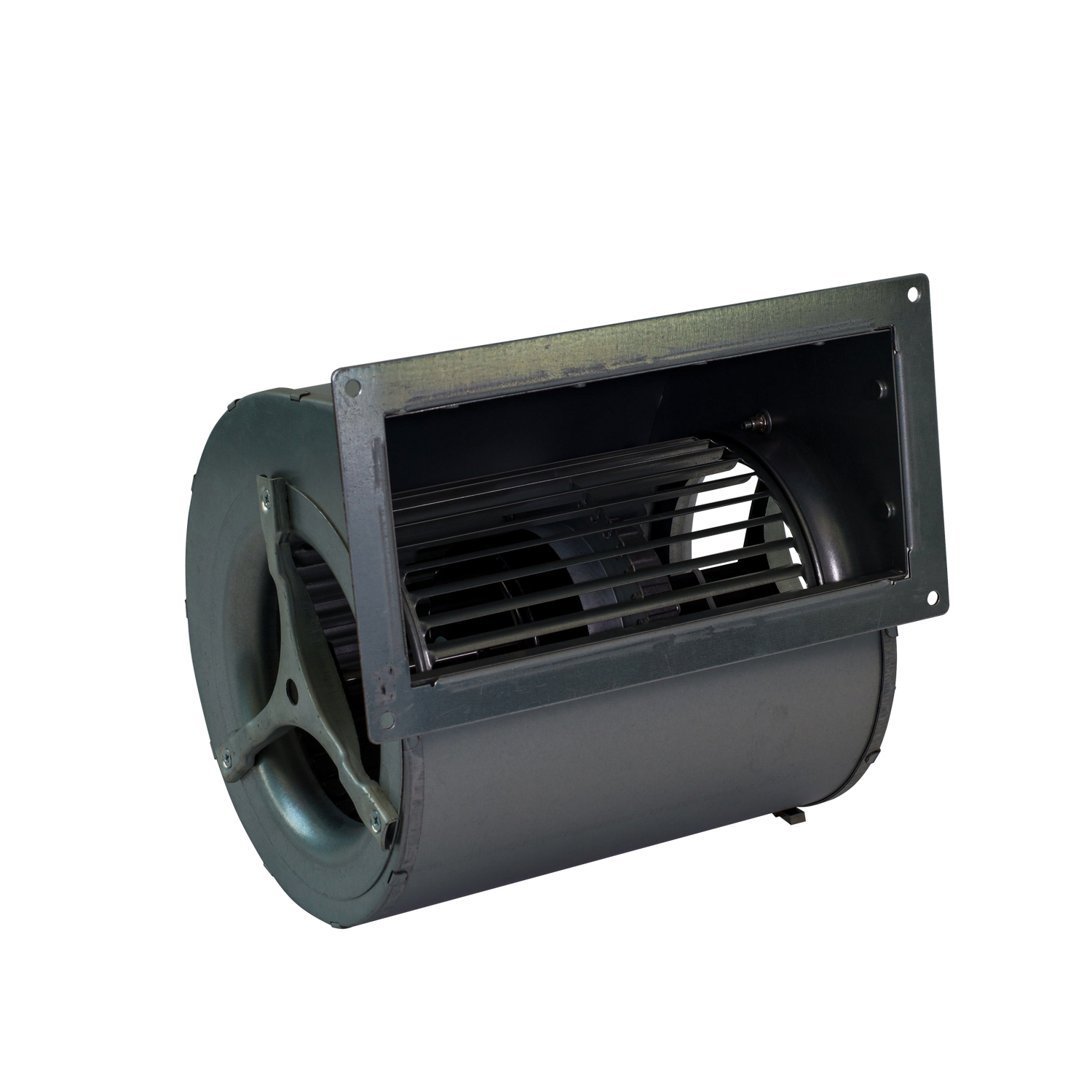

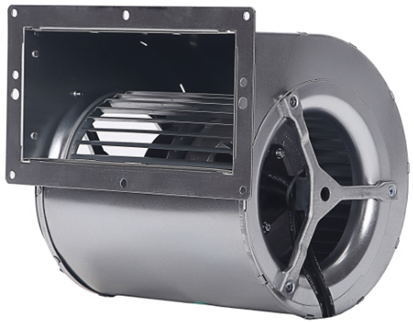

YUTEC 115VAC 230VAC 146mm 92motor Double inlet blower fan

Description

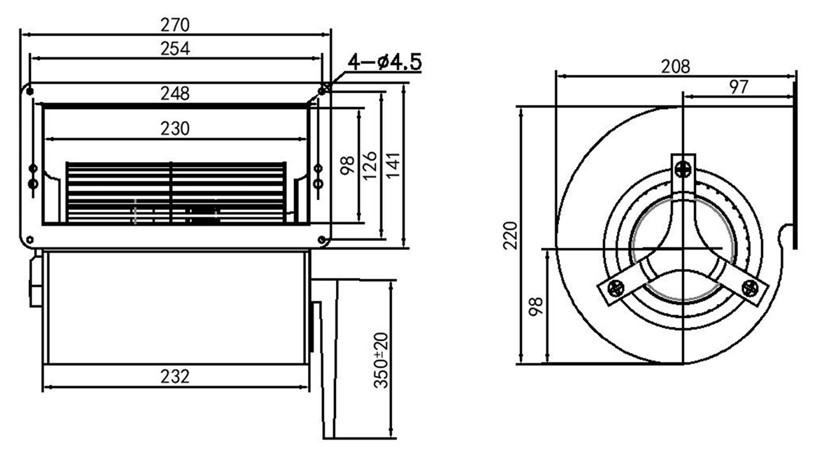

Dimensional drawing:

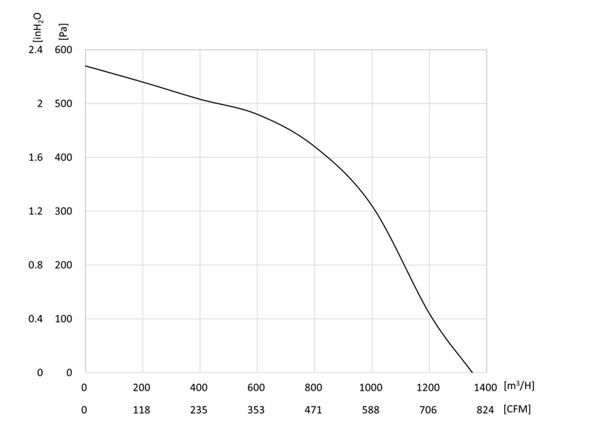

Performance Curve:

Connection Diagram:

Description：

An EC forward-curved centrifugal fan is a high-performance ventilation device designed to move air efficiently in a variety of settings. It operates on the principle of centrifugal force, where air is drawn into the center of the fan's impeller and then accelerated outward by the rotating blades. The forward-curved design of the impeller enhances the fan's ability to generate high volumes of air, making it suitable for applications that require significant air movement, such as in large commercial buildings, factories, or data centers. The integration of an EC motor provides the fan with advanced features like variable speed control, energy efficiency optimization, and real-time monitoring capabilities. This allows the fan to adapt its performance to changing conditions, ensuring optimal airflow while minimizing energy consumption. Additionally, the EC motor's quiet operation and low maintenance requirements make it a preferred choice for environments where noise levels and downtime need to be minimized.

Specifications：

Competitive Advantage:

1. Long Lifespan and Reduced Maintenance

The brushless design of EC motors contributes to a longer lifespan and reduced maintenance requirements compared to traditional AC motors. Without brushes that wear out over time, EC motors experience less mechanical stress and are less prone to failure. This means fewer replacements and repairs, leading to lower maintenance costs and less downtime. Additionally, the electronic control system in EC motors provides better protection against overheating, overvoltage, and other potential issues, further enhancing reliability. For businesses and facilities that rely on continuous ventilation, the longevity and low maintenance of EC double-inlet centrifugal fans offer significant operational advantages.

2. Enhanced Airflow Performance

EC double-inlet centrifugal fans are engineered to deliver superior airflow performance. The double-inlet design allows the fan to draw in air from two sides, increasing the intake volume and improving overall efficiency. This, combined with the precise speed control of the EC motor, enables the fan to maintain consistent airflow even under varying conditions. Whether used in ventilation systems, air handling units, or industrial processes, EC fans can provide the necessary air movement to ensure optimal performance. Their ability to handle high volumes of air efficiently makes them a popular choice for applications where air quality and circulation are critical.

3. Improved Pressure Capabilities

In addition to high airflow, EC double-inlet centrifugal fans also offer improved pressure capabilities. The centrifugal design of the fan, combined with the powerful EC motor, allows it to generate higher static pressures compared to many other fan types. This makes them suitable for applications where air needs to be moved through ductwork or over long distances, such as in large commercial buildings or industrial facilities. The ability to maintain airflow against resistance ensures that ventilation systems remain effective, even in complex layouts. This pressure capability, combined with energy efficiency, makes EC fans a versatile solution for a wide range of applications.
