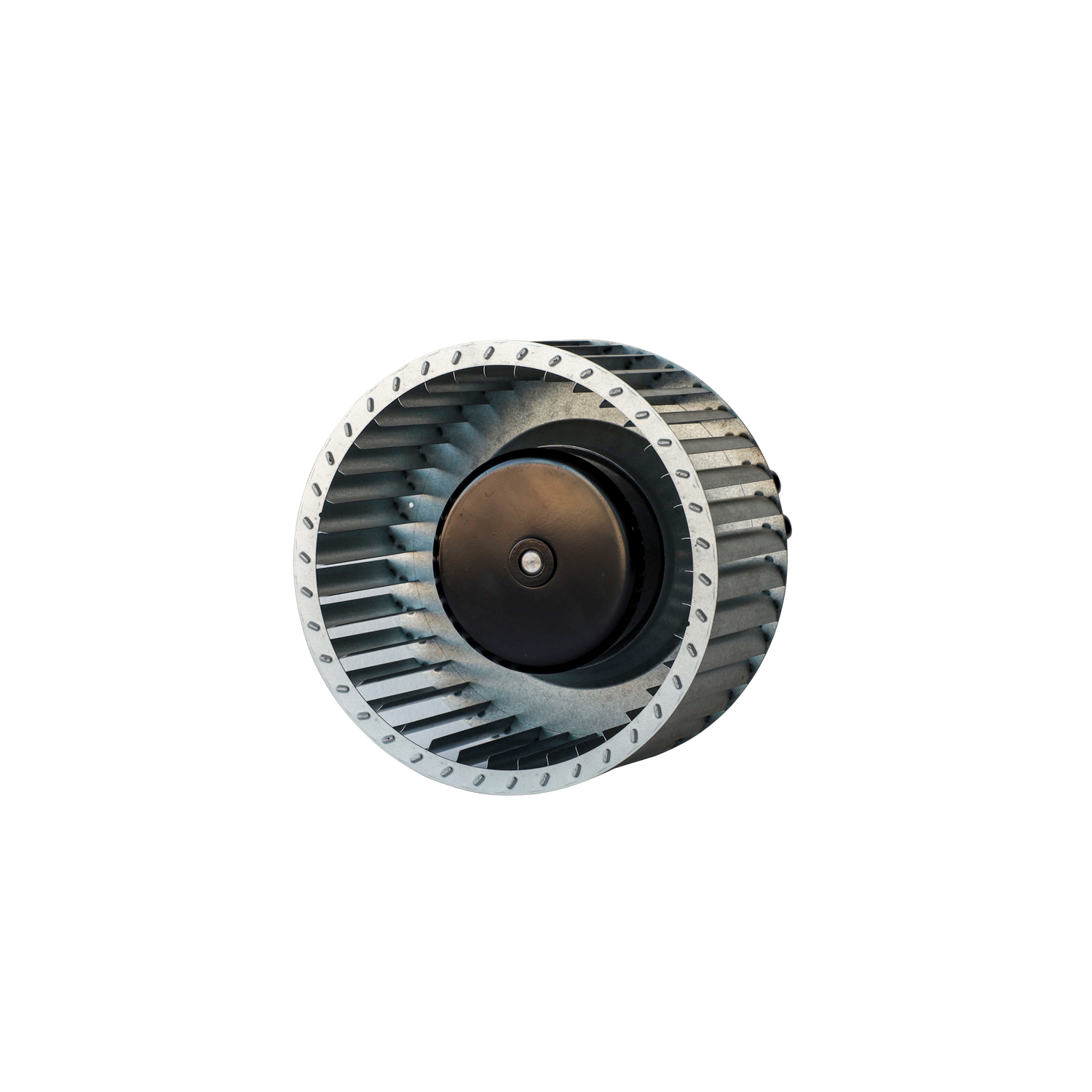

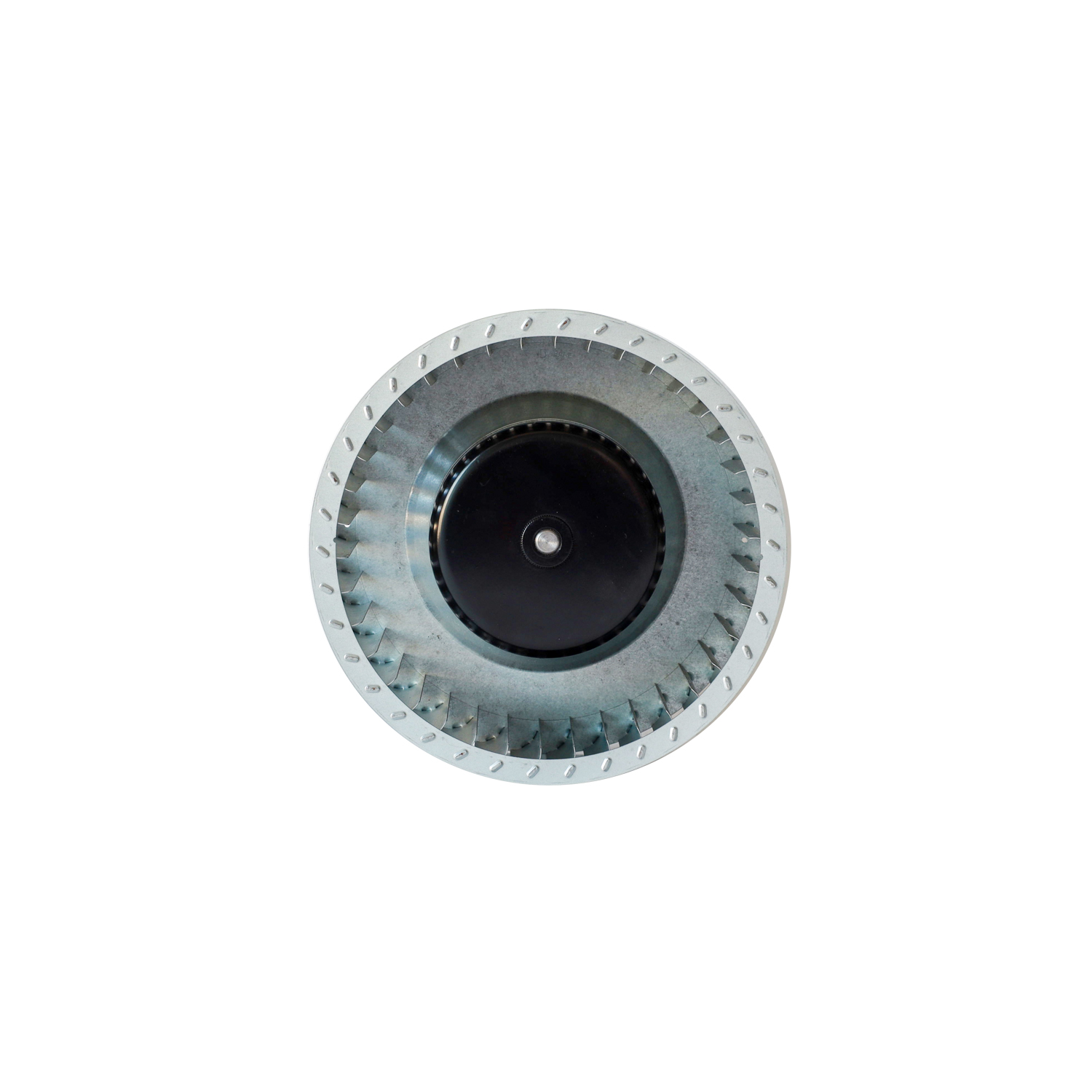

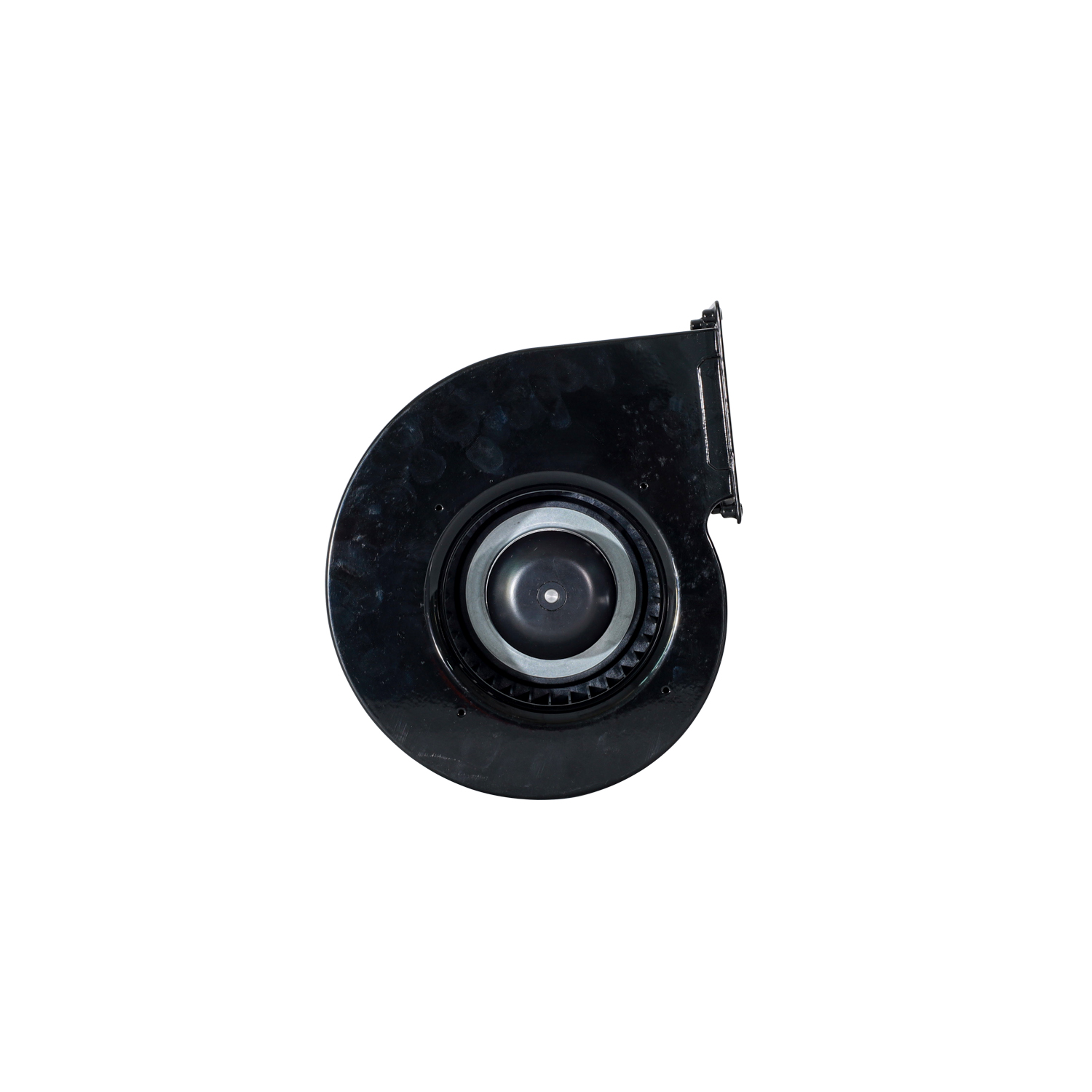

YUTEC 115VAC 230VAC 133mm 72motor Forward Curved Centrifugal Fan single inlet blower fan
- Fan model: YUTEC-S133EC72-115M-G02; YUTEC-S133EC72-230M-G02; YUTEC-F133EC72-115M-G02; YUTEC-F133EC72-230M-G02
- Rated Voltage: 115VAC;230VAC
- Rated Current: 1A; 0.5A
- Rated Power: 65W
- Rated Speed: 2350RPM
- Air Flow: 280M3/H
- Air Pressure: 350Pa
- Noise Level:60dBA
- Frequency: 50/60 Hz
- Weight:1.5KG
- Brand: YUTEC
Description

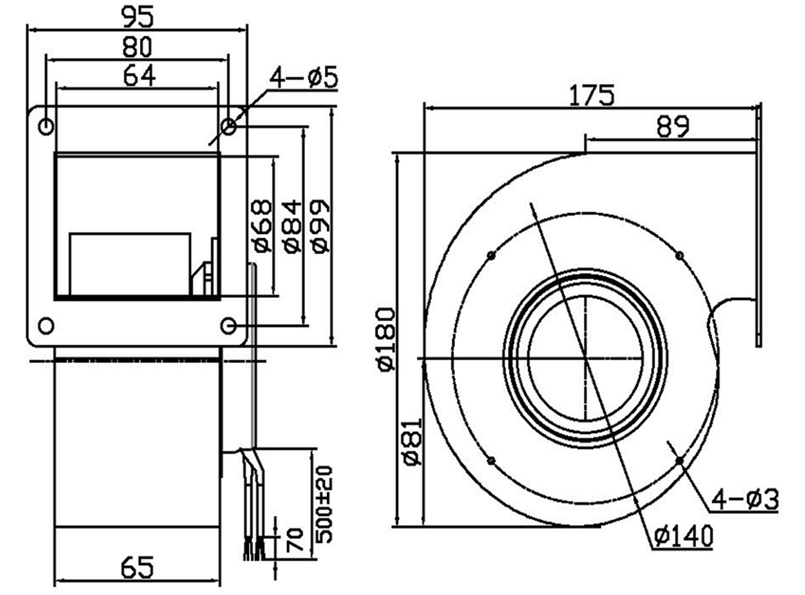

Dimensional drawing:

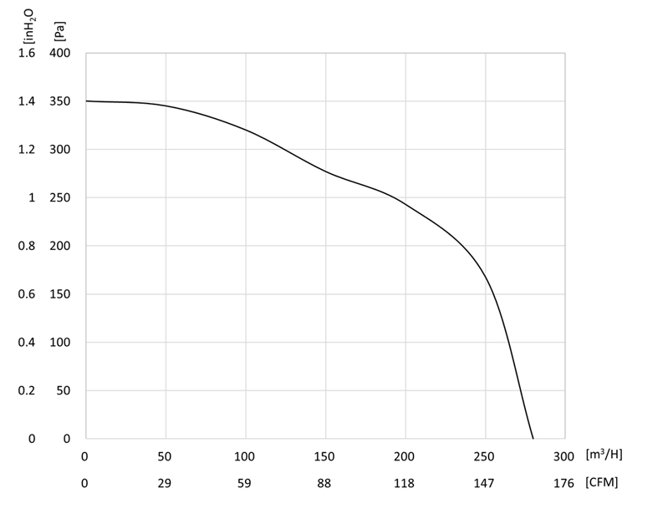

Performance Curve:
Connection Diagram:
Description:
The term "EC forward-curved centrifugal fan" describes a fan system that incorporates an electronically commutated motor to power a forward-curved centrifugal impeller. The EC motor provides variable speed control through electronic means, allowing the fan to adjust its output according to demand, thus optimizing energy use. The forward-curved blade geometry is particularly effective in applications requiring high volume air movement at moderate pressures, such as in commercial buildings, industrial processes, and cleanroom environments.
Specifications：
Brand Name | YUTEC |
Impeller Material | Galvanized Metal Sheet |
Motor Type | BLDC External Rotor Motor |
Type of Protection | IP44 |
Insulation Class | Class B |
Speed Control | 0-10VDC/PWM |
Bearing | Ball Bearing |
Signal Output | FG |
Life Expectance | 50,000 Hours |
Electrical Protection | Locked Rotor Protection |
Reverse Polarity Protection | |
Over Voltage Protection | |
Soft Start |
Competitive Advantage:
1.Compact Design: EC forward-curved centrifugal fans are designed to be compact and space-efficient. Their small footprint allows for easy installation in tight spaces, making them suitable for a wide range of applications. The compact design also reduces the overall weight of the fan, facilitating handling and installation.
2.High Airflow Performance: Despite their compact size, EC fans are capable of delivering high airflow rates. The forward-curved blade design ensures efficient air movement, even at low speeds, making them suitable for applications requiring high airflow with minimal pressure drop.
