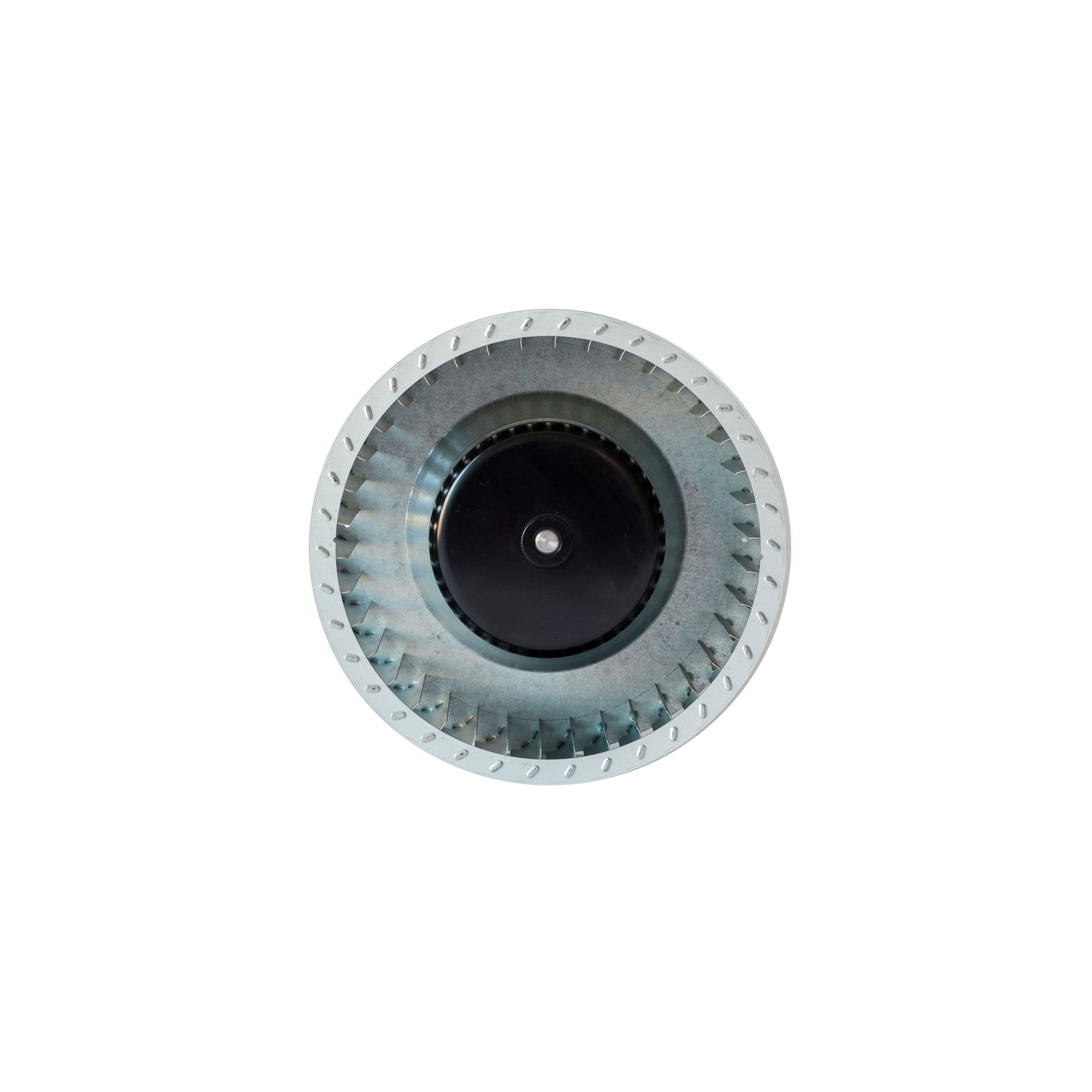

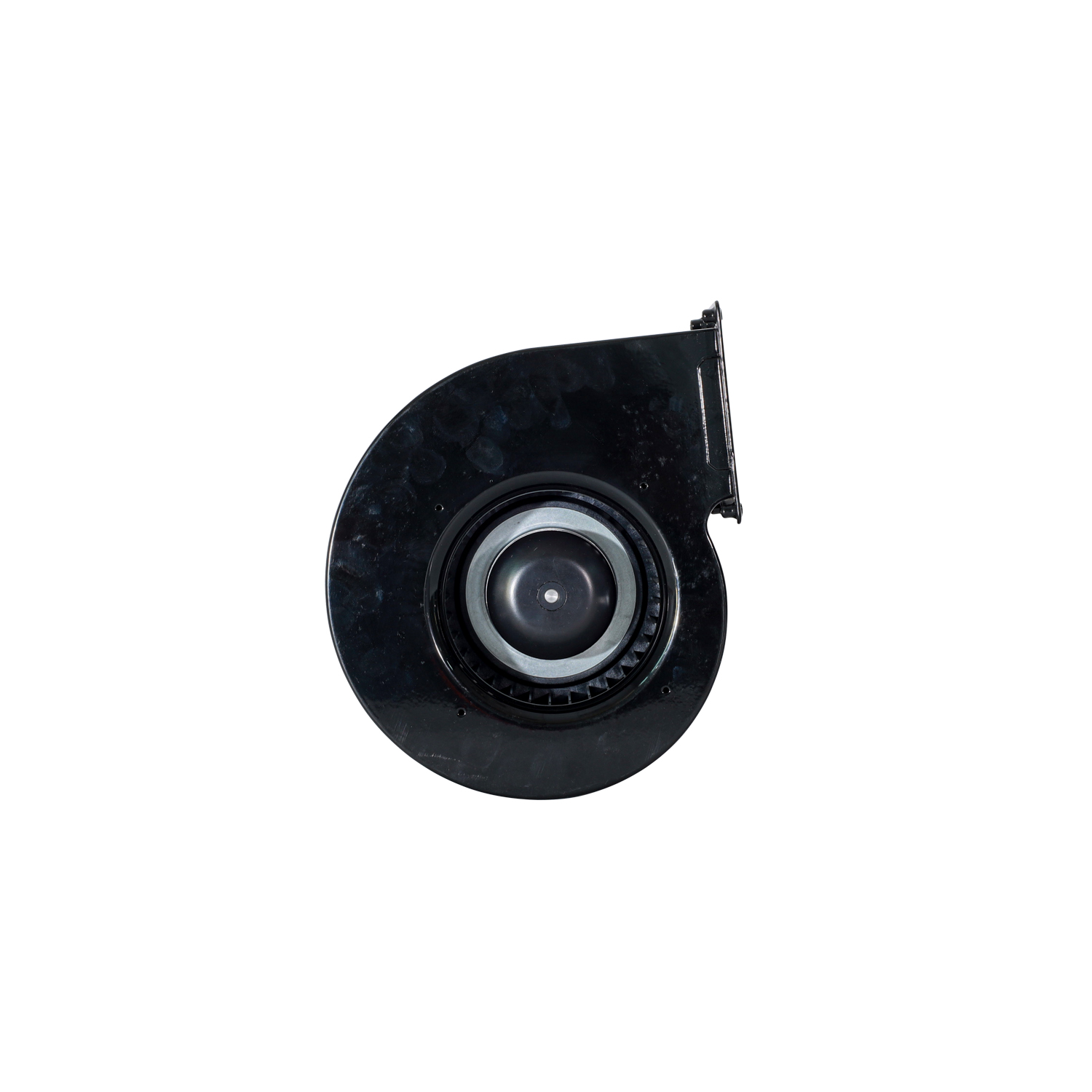

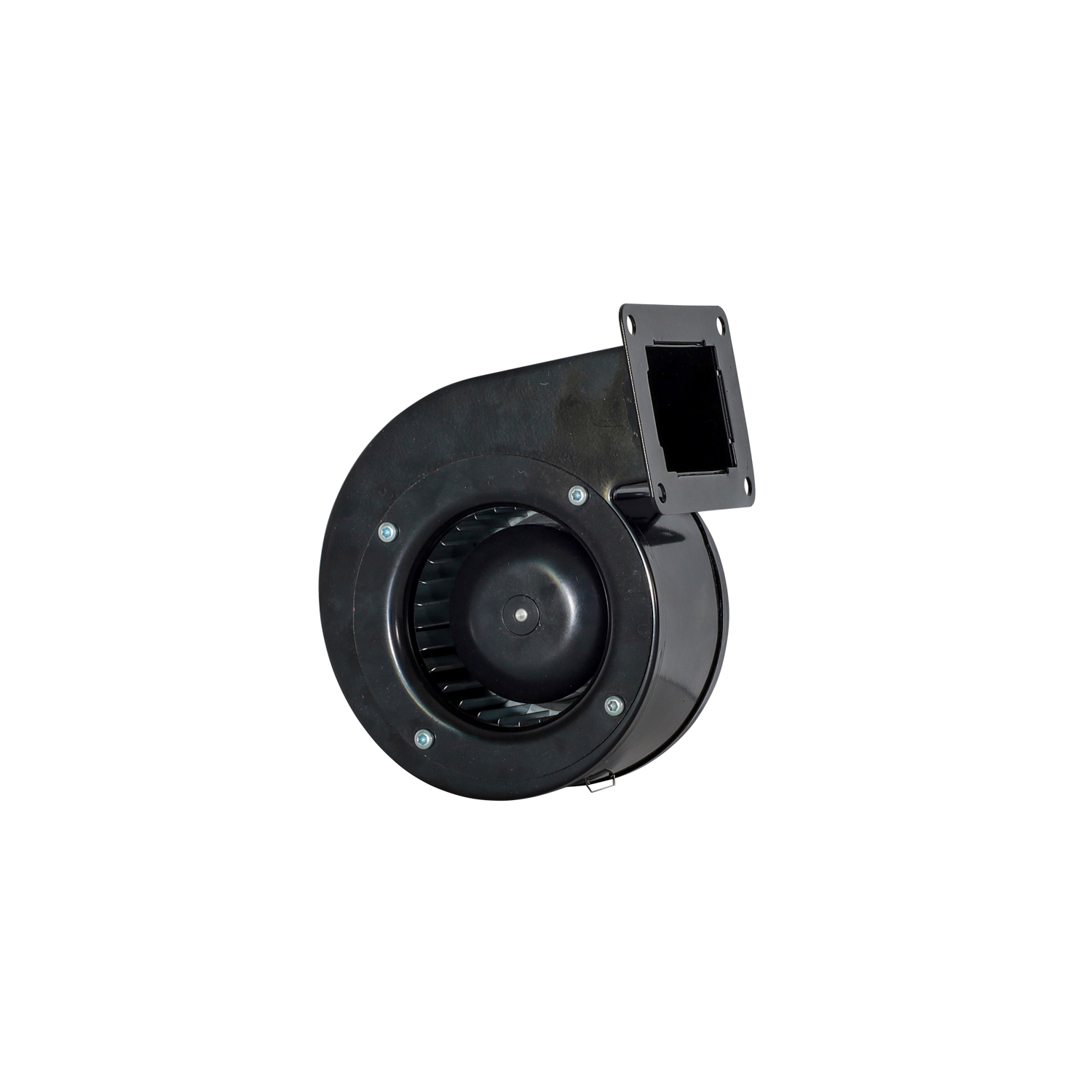

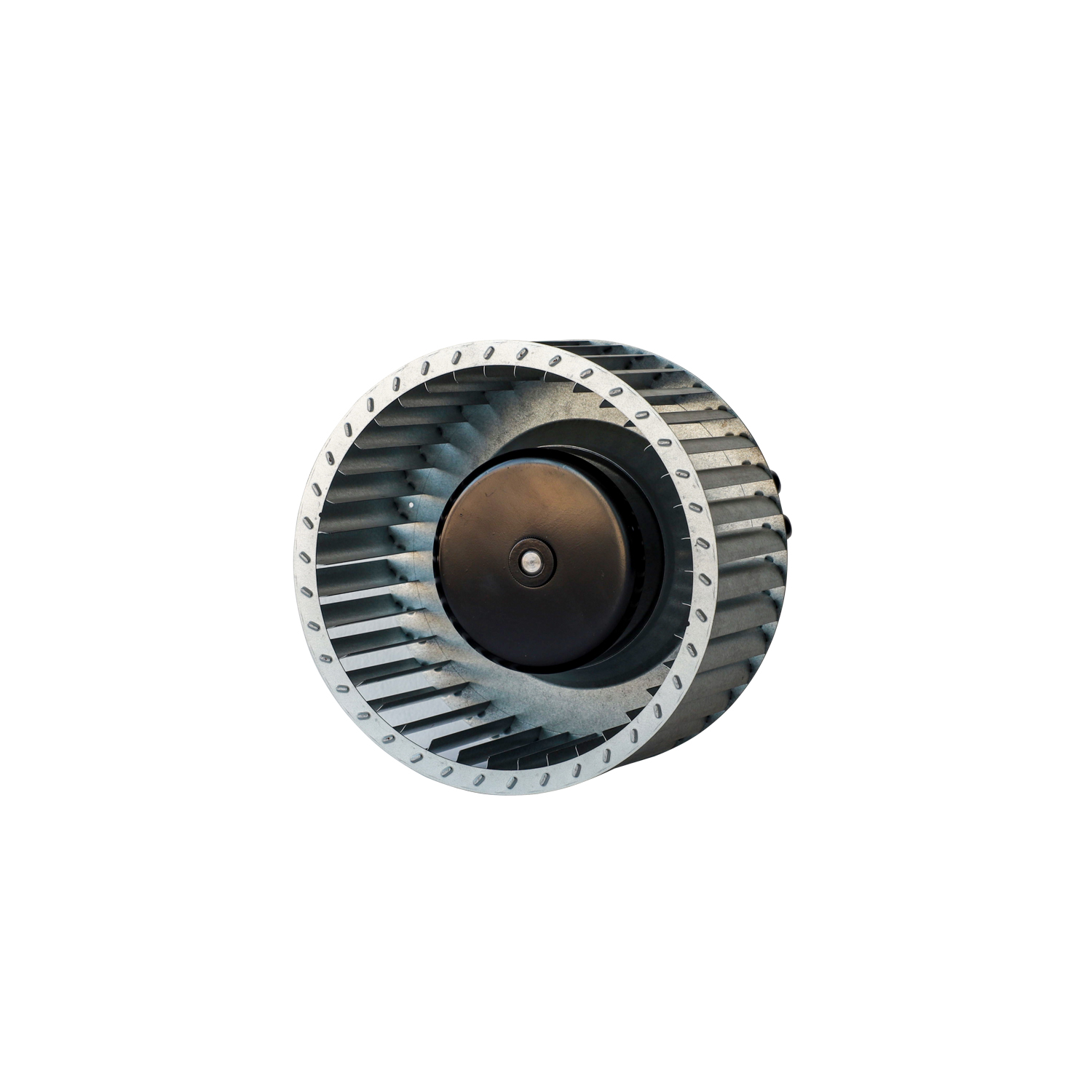

YUTEC 115VAC 230VAC 140mm 92motor single inlet blower fan
- Fan model: YUTEC-S140EC92-115M-G02; YUTEC-S140EC92-230M-G02; YUTEC-F140EC92-115H-G02; YUTEC-F140EC92-230H-G02
- Rated Voltage: 115VAC;230VAC
- Rated Current: 2.3A; 1.15A
- Rated Power: 150W
- Rated Speed: 2650RPM
- Air Flow: 625 M3/H
- Air Pressure: 650Pa
- Noise Level:71dBA
- Frequency: 50/60 Hz
- Weight:3KG
- Brand: YUTEC
Description

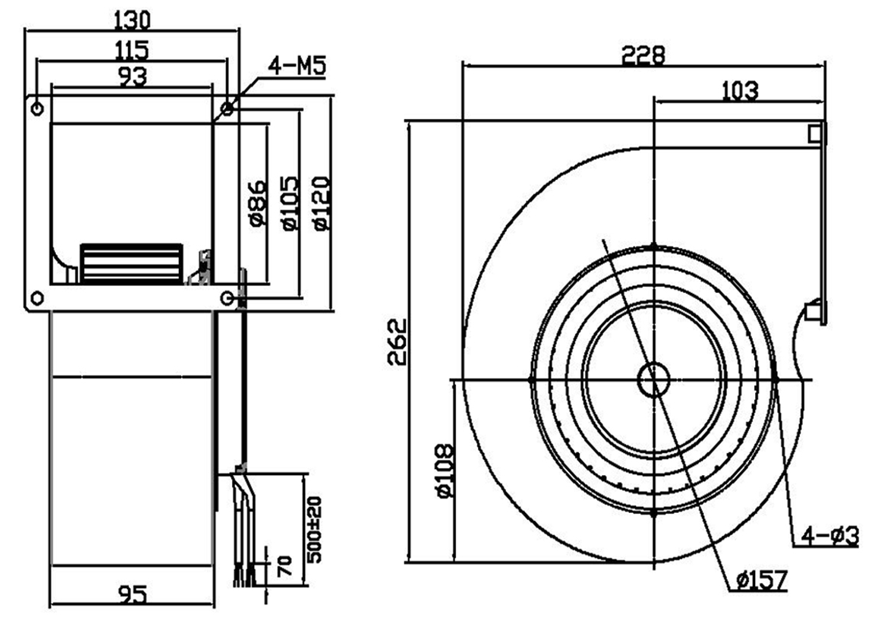

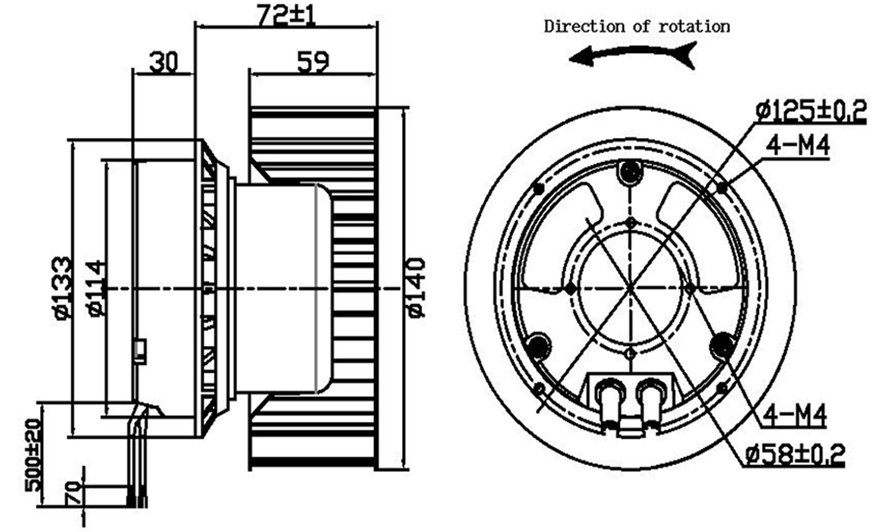

Dimensional drawing:

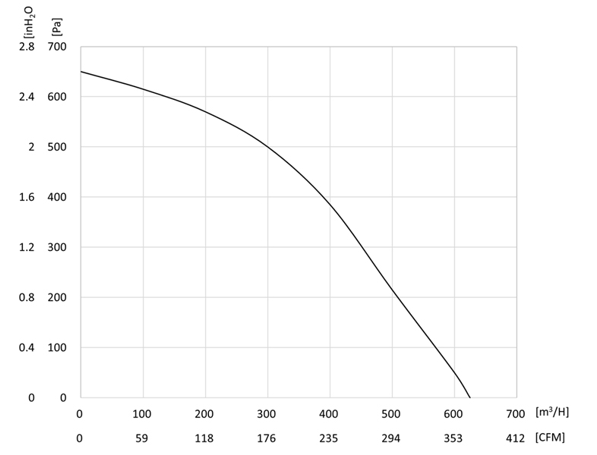

Performance Curve:
Connection Diagram:
Description：
In the context of fan technology, an EC forward-curved centrifugal fan is a high-efficiency ventilation solution that utilizes an electronically commutated motor to drive a forward-curved impeller. The EC motor's ability to operate at variable speeds allows for optimal energy use, as the fan can adjust its output to match the specific requirements of the application. The forward-curved blade design enhances airflow efficiency at lower pressures, making it ideal for use in residential, commercial, and industrial settings where quiet operation and energy savings are priorities.
Specifications：
Brand Name | YUTEC |
Impeller Material | PA66+GF25/ Galvanized Metal Sheet |
Motor Type | BLDC External Rotor Motor |
Type of Protection | IP44 |
Insulation Class | Class B |
Speed Control | 0-10VDC/PWM |
Bearing | Ball Bearing |
Signal Output | FG |
Life Expectance | 50,000 Hours |
Electrical Protection | Locked Rotor Protection |
Reverse Polarity Protection | |
Over Voltage Protection | |
Soft Start |
Competitive Advantage:
1. Energy Savings: The high efficiency of EC fans translates into significant energy savings over time. By optimizing airflow and reducing power consumption, EC fans help to lower operating costs and reduce the carbon footprint of the application. This makes them an environmentally friendly choice for sustainable building designs.
2. Improved Indoor Air Quality: EC fans contribute to improved indoor air quality by ensuring efficient ventilation and air circulation. The precise control of airflow allows for the removal of pollutants, allergens, and other contaminants from the indoor environment, enhancing occupant health and comfort.
