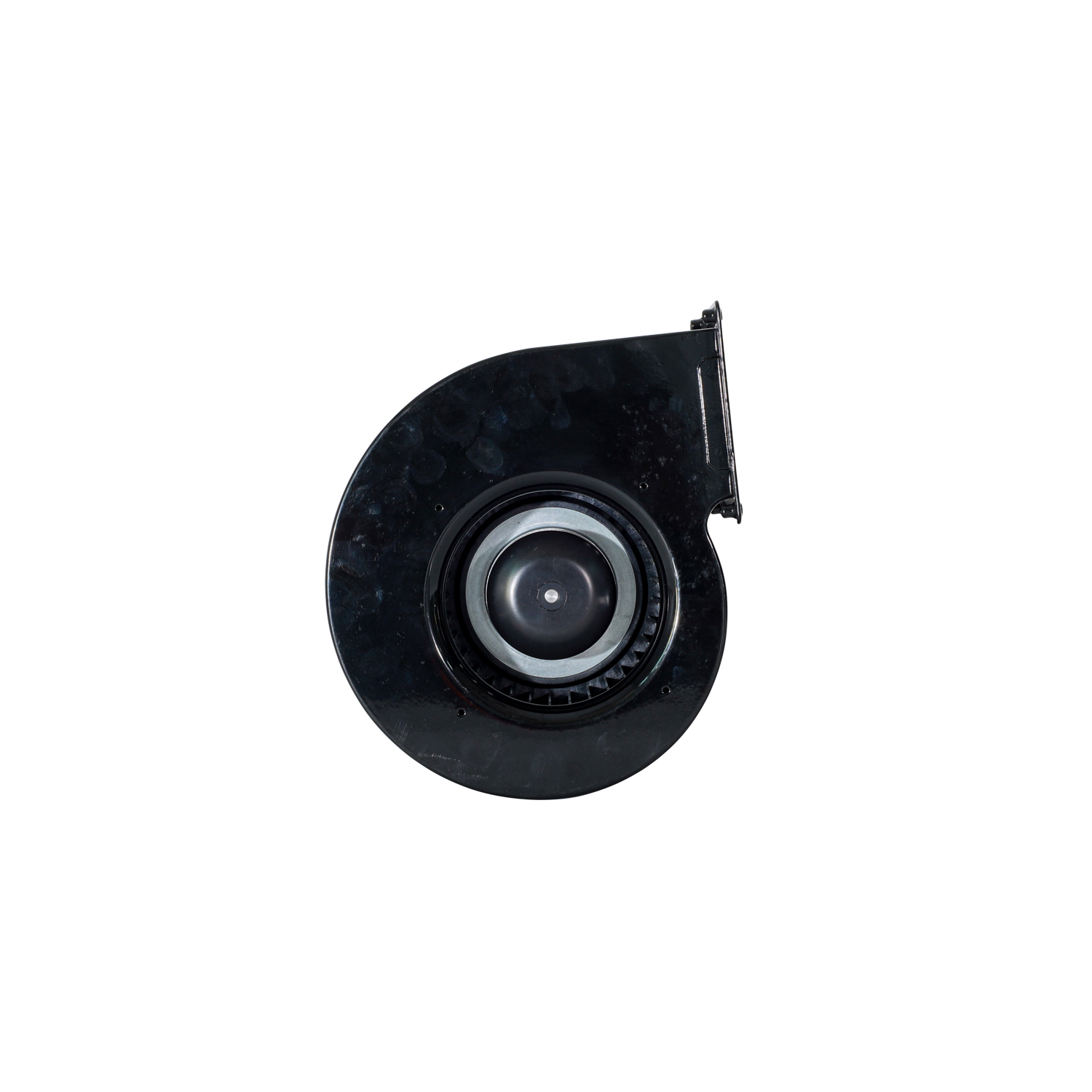

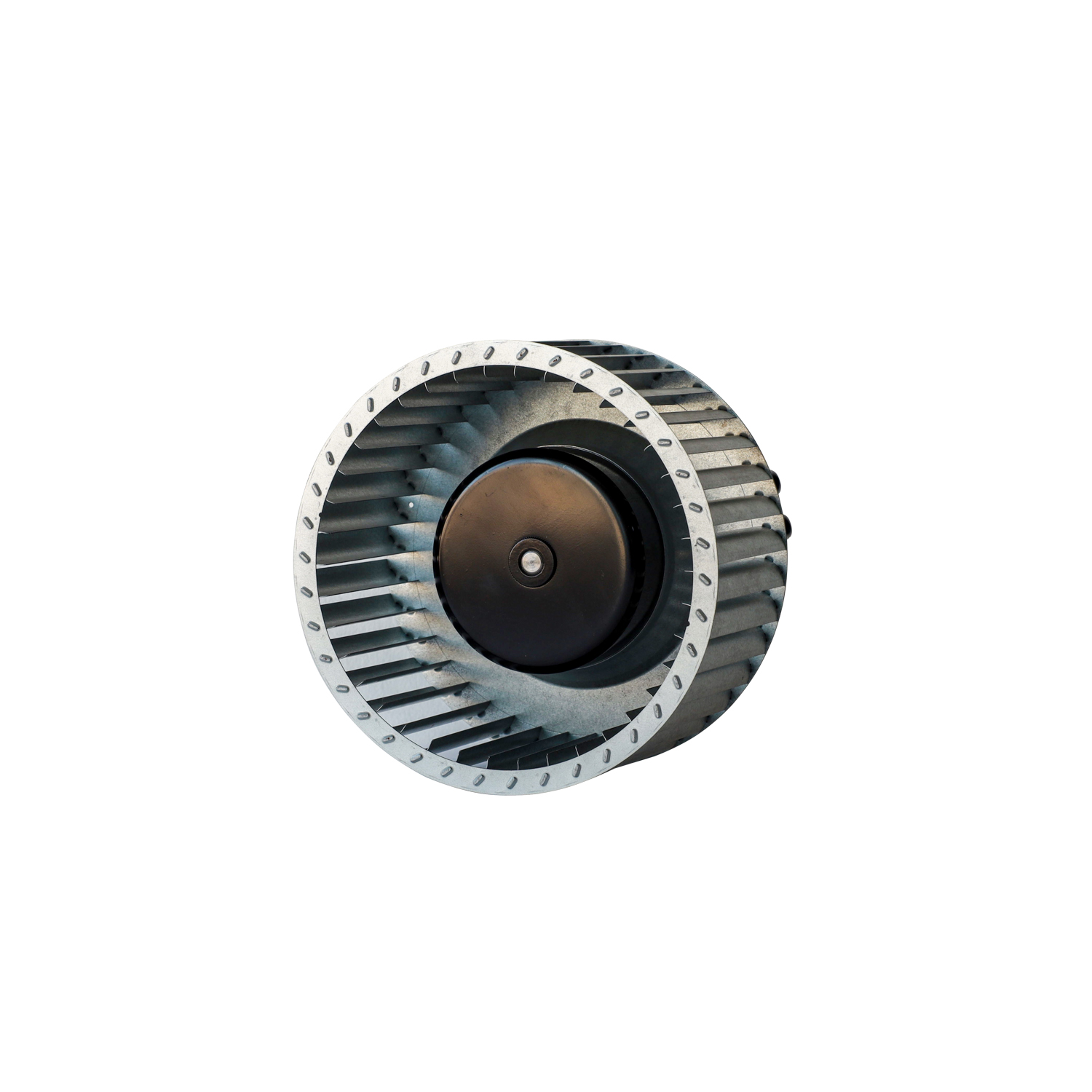

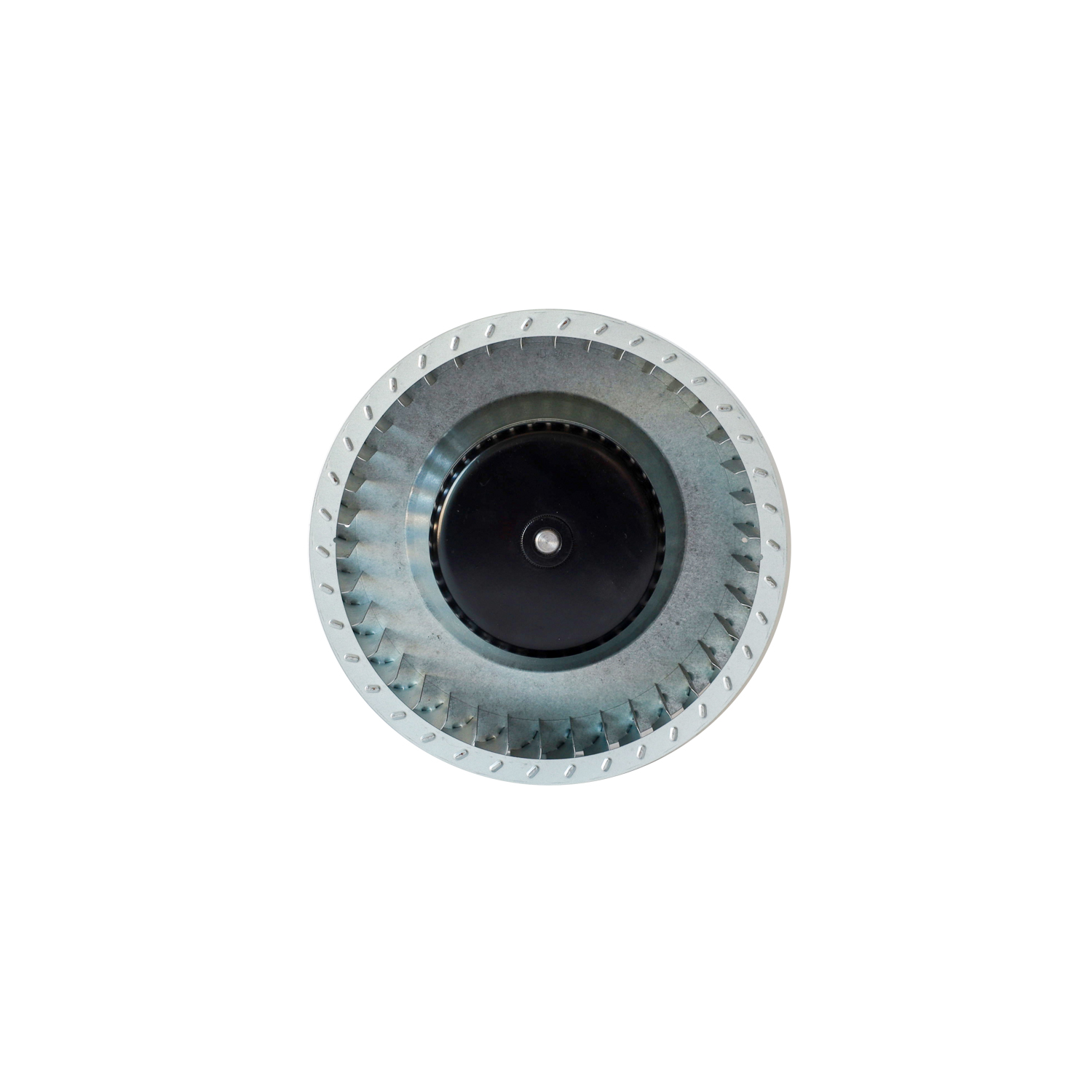

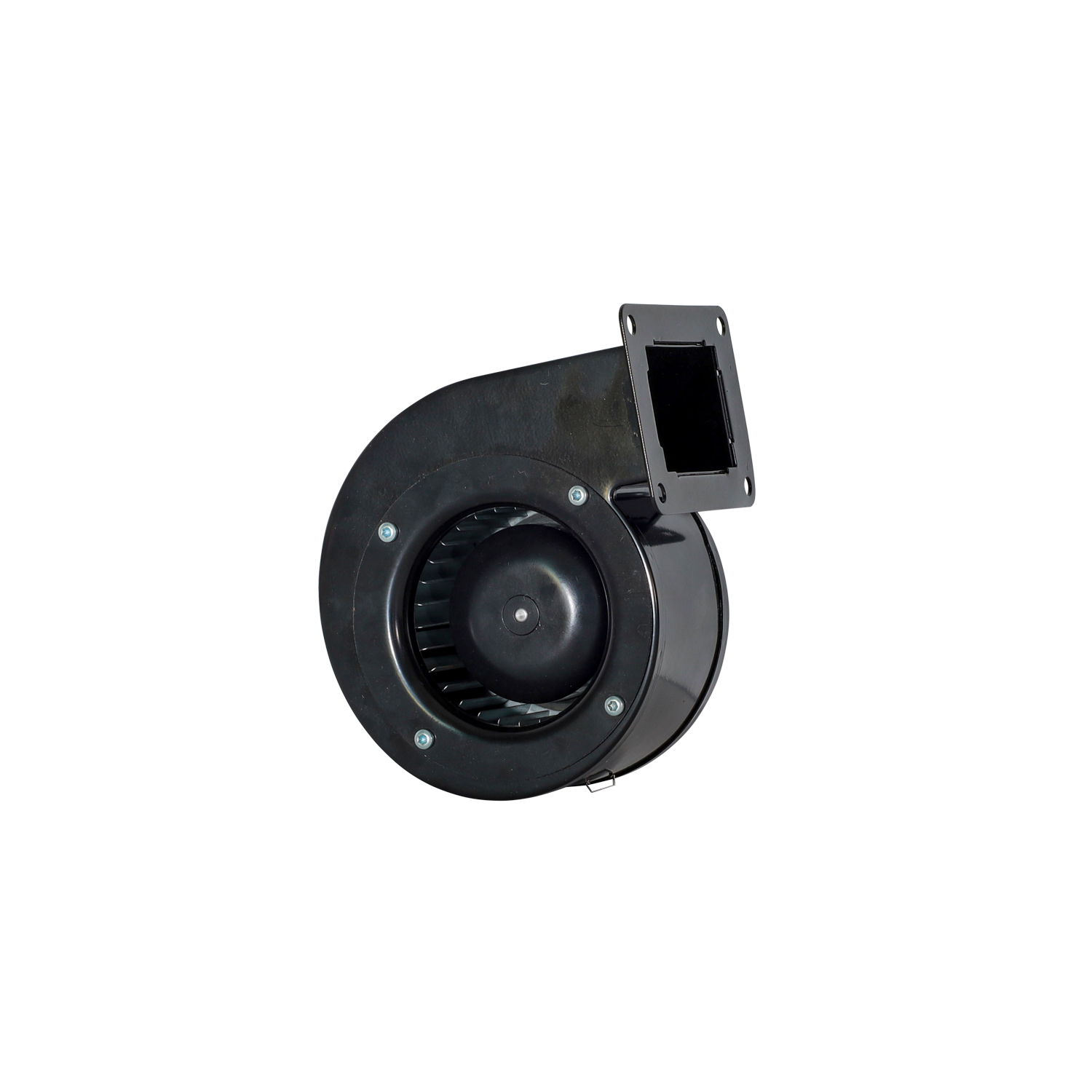

YUTEC 115VAC 230VAC 160mm 72motor Forward Curved Centrifugal Fan single inlet blower fan
- Fan model: YUTEC-S160EC72-115M-G02; YUTEC-S160EC72-230M-G02; YUTEC-F160EC72-115H-G02; YUTEC-F160EC72-230H-G02
- Rated Voltage: 115VAC;230VAC
- Rated Current: 1.9A; 0.95A
- Rated Power: 110W
- Rated Speed: 1750RPM
- Air Flow: 600M3/H
- Air Pressure: 480Pa
- Noise Level:70dBA
- Frequency: 50/60 Hz
- Weight:2.8KG
- Brand: YUTEC
Description

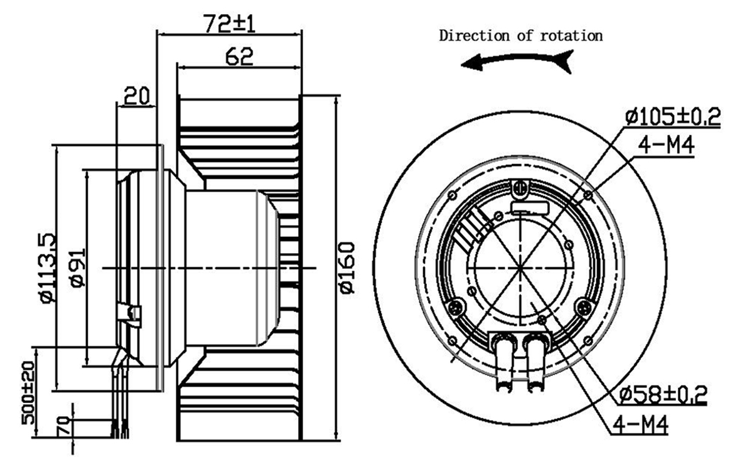

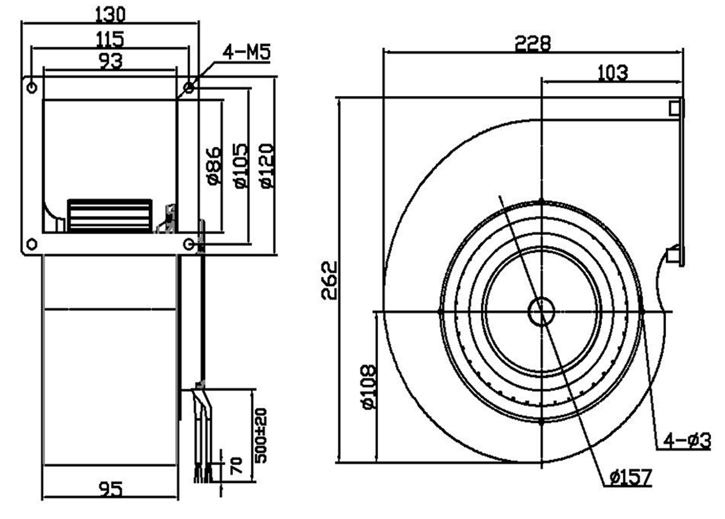

Dimensional drawing:

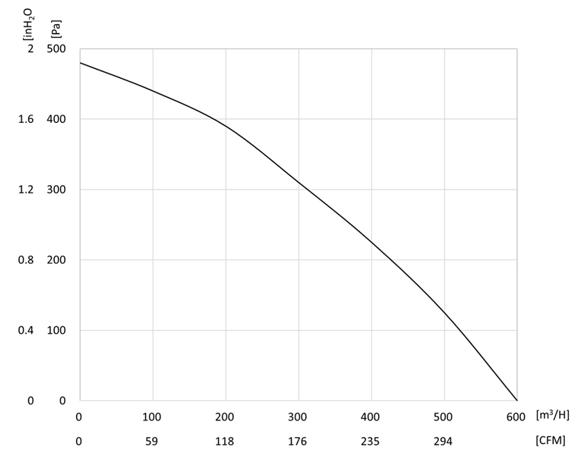

Performance Curve:
Connection Diagram:
Description:
An EC forward-curved centrifugal fan is a type of fan that features an electronically commutated motor paired with a forward-curved centrifugal impeller. The EC motor, which is brushless and operates on DC power, provides precise speed control and high efficiency, reducing energy consumption and operating costs. The forward-curved blade configuration is optimized for applications requiring high airflow at moderate pressures, such as in air handling units, ventilation systems, and industrial processes where reliability and performance are essential.
Specifications：
Brand Name | YUTEC |
Impeller Material | PA66+GF25/ Galvanized Metal Sheet |
Motor Type | BLDC External Rotor Motor |
Type of Protection | IP44 |
Insulation Class | Class B |
Speed Control | 0-10VDC/PWM |
Bearing | Ball Bearing |
Signal Output | FG |
Life Expectance | 50,000 Hours |
Electrical Protection | Locked Rotor Protection |
Reverse Polarity Protection | |
Over Voltage Protection | |
Soft Start |
Competitive Advantage:
1.Wide Operating Voltage Range: EC fans can operate over a wide range of voltages, making them suitable for use in various electrical systems. This flexibility allows for easy integration into existing infrastructure without the need for extensive modifications.
2.Soft Start Capability: The electronically commutated motor in EC fans provides soft start capability, reducing inrush currents and mechanical stress during startup. This extends the lifespan of the fan and protects connected equipment from potential damage.
3.High Reliability: EC fans are known for their high reliability and durability. The use of high-quality components and advanced manufacturing techniques ensures consistent performance over time, reducing the risk of unexpected failures and downtime.
