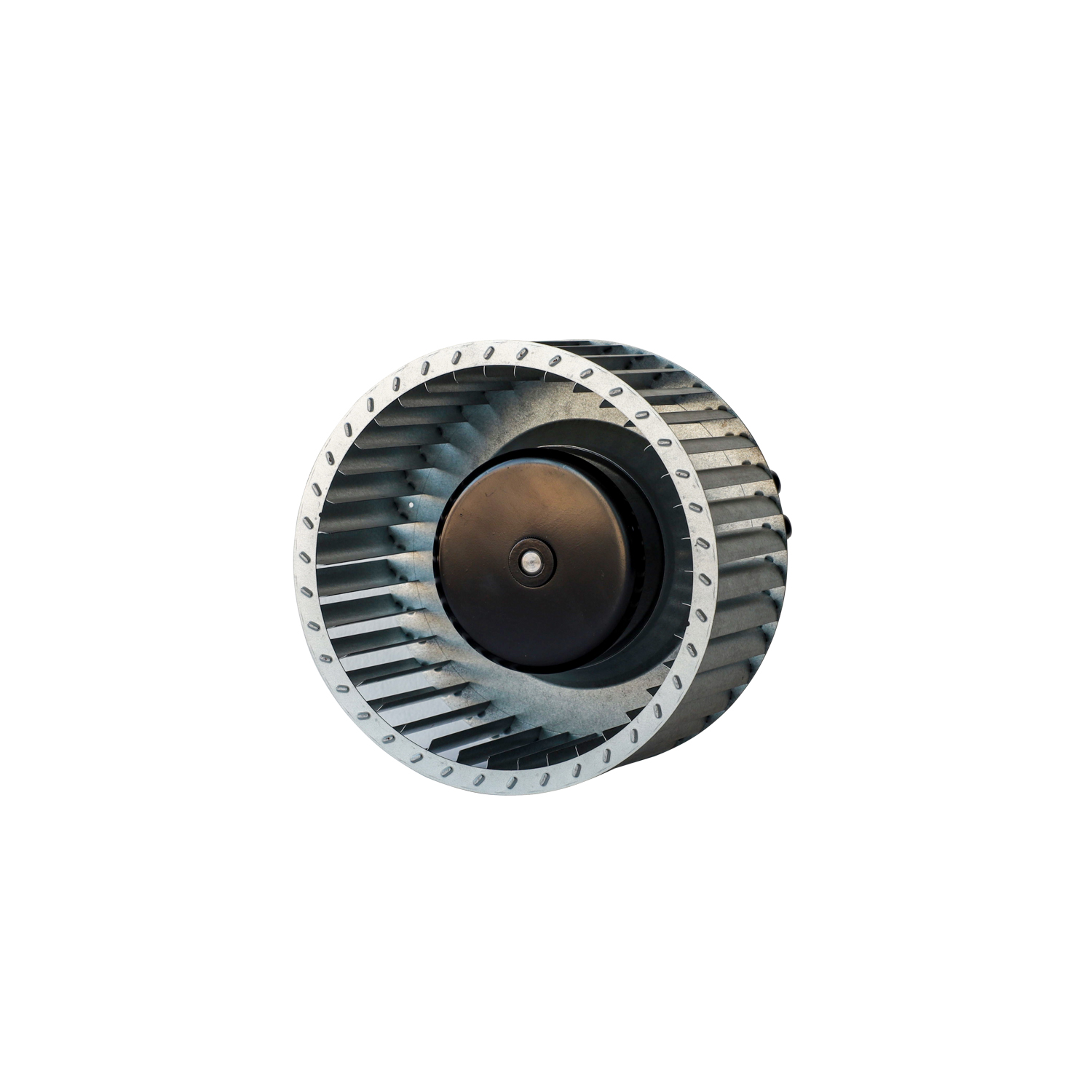

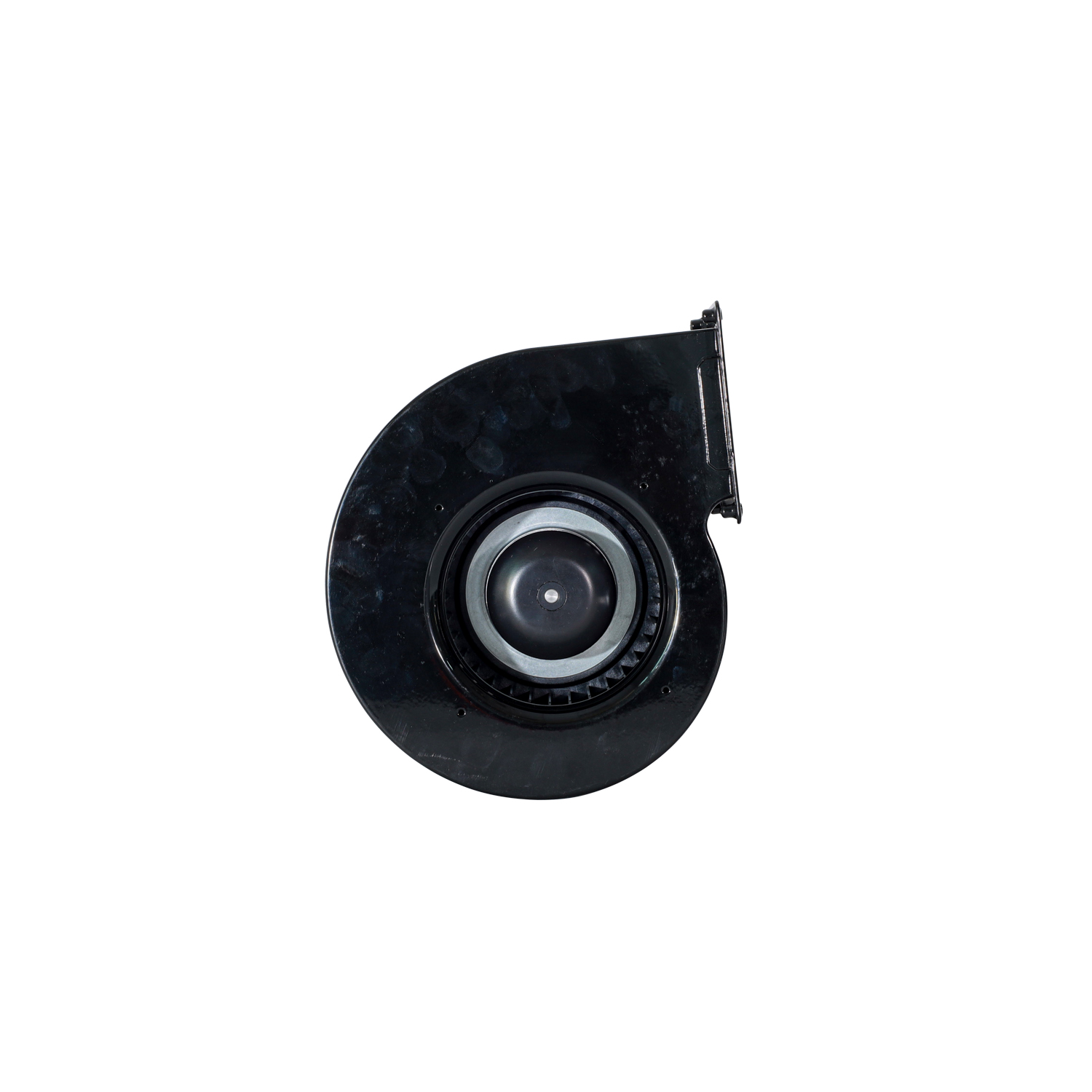

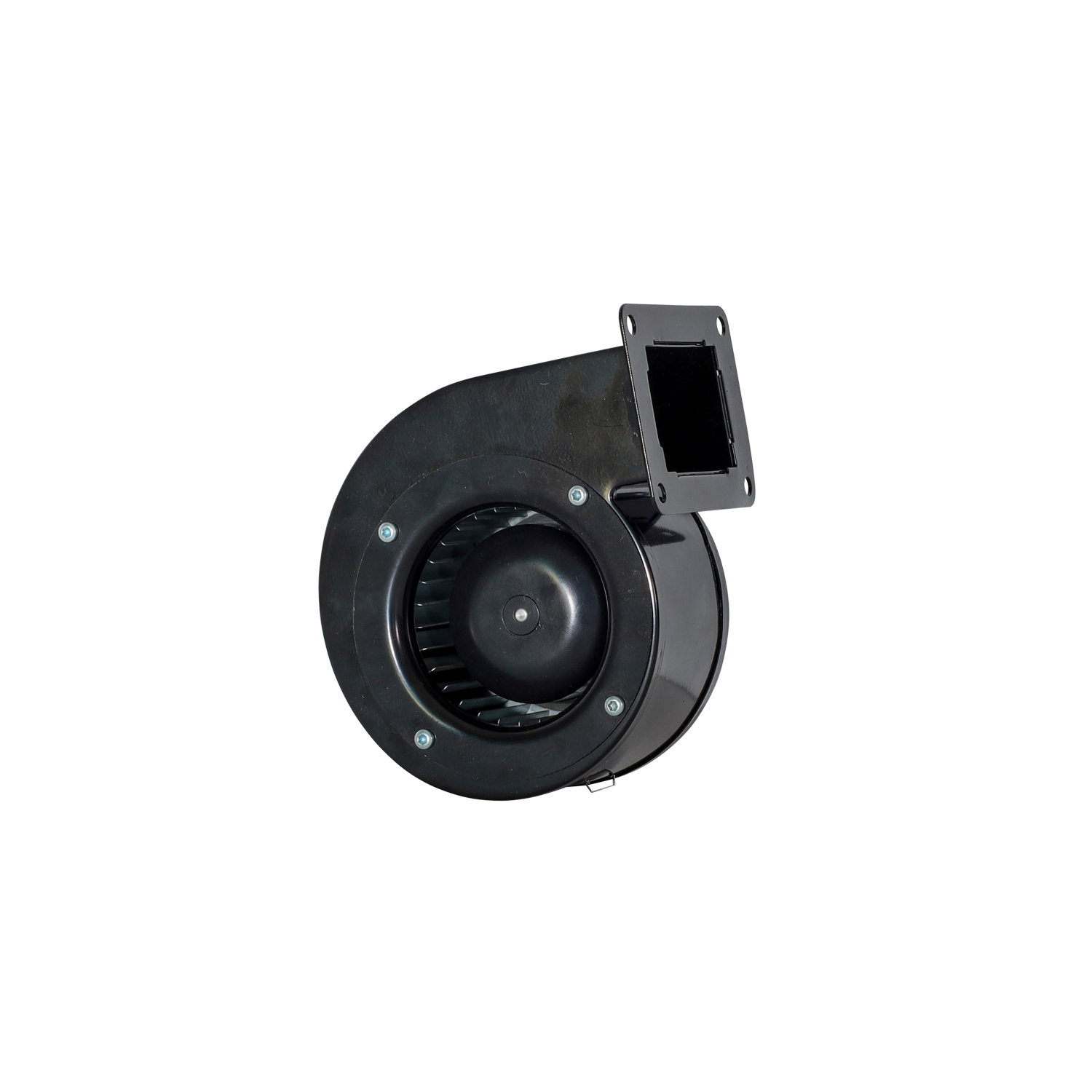

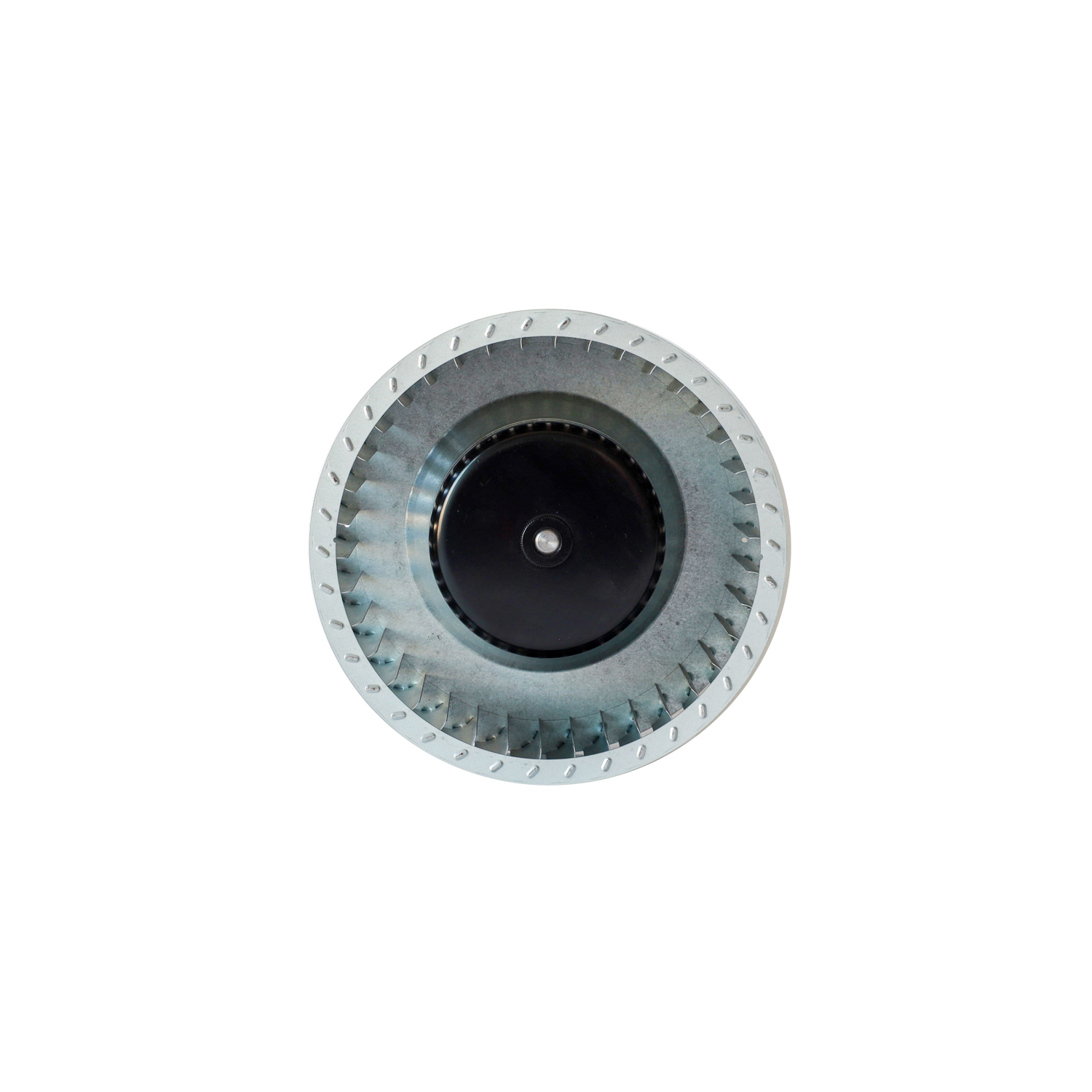

YUTEC 115VAC 230VAC 160mm 92motor single inlet blower fan
- Fan model: YUTEC-S160EC92-115M-G02; YUTEC-S160EC92-230M-G02 YUTEC-F160EC92-115H-G02; YUTEC-F160EC92-230H-G02
- Rated Voltage: 115VAC;230VAC
- Rated Current: 2.4A; 1.2A
- Rated Power: 160W
- Rated Speed: 2250RPM
- Air Flow: 700M3/H
- Air Pressure: 680Pa
- Noise Level:71dBA
- Frequency: 50/60 Hz
- Weight:3.2KG
- Brand: YUTEC
Description

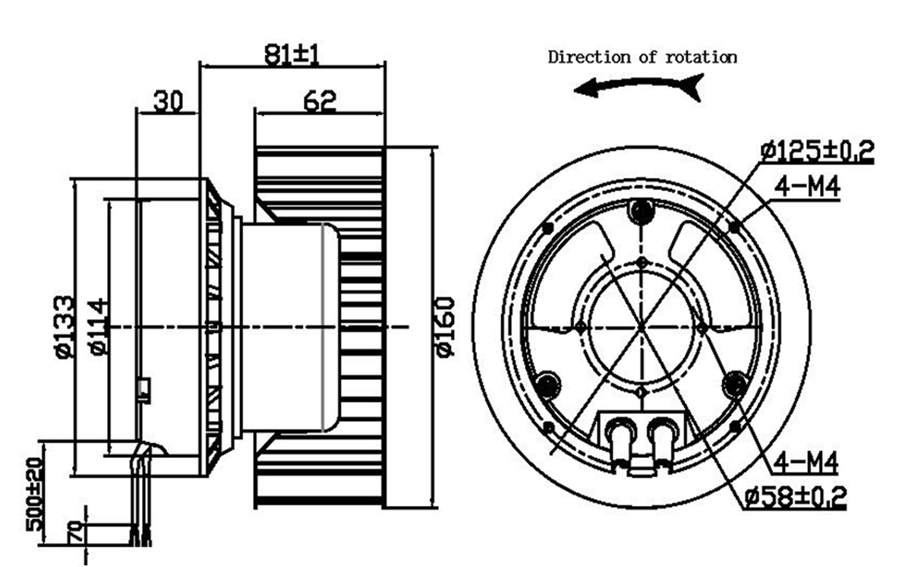

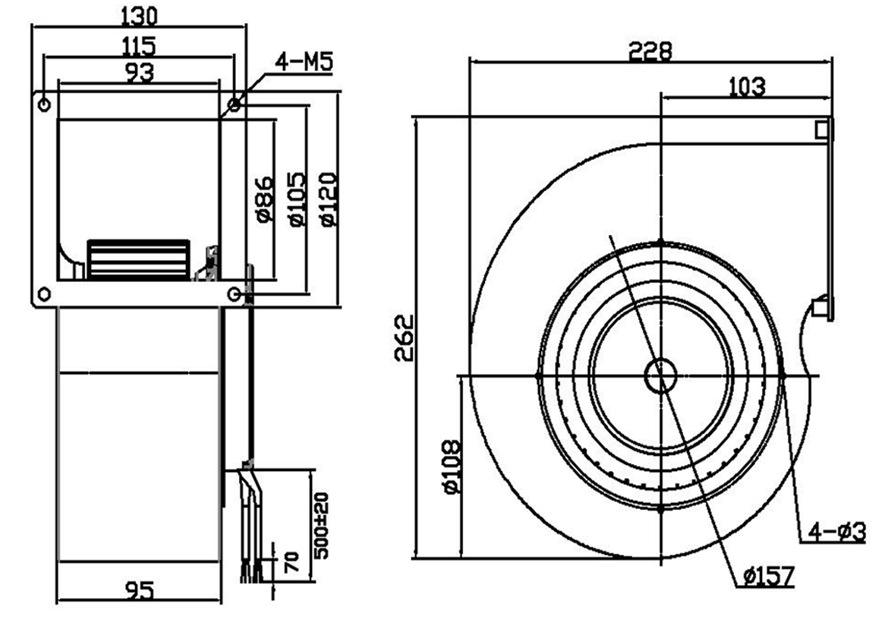

Dimensional drawing:

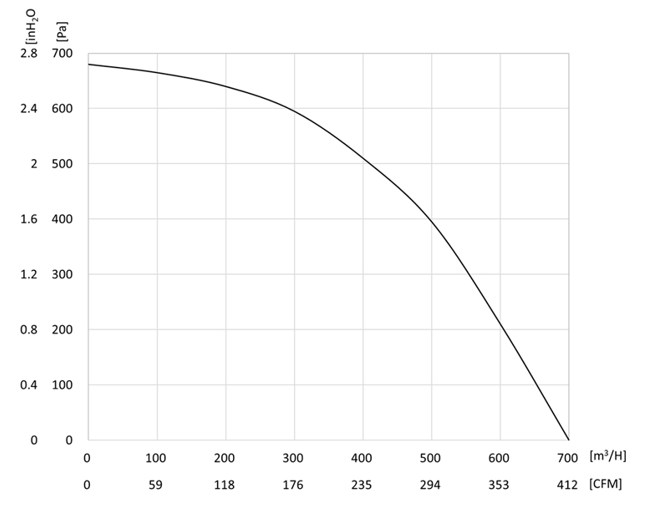

Performance Curve:
Connection Diagram:
Description:
The definition of an EC forward-curved centrifugal fan involves its integration of an electronically commutated motor with a forward-curved impeller. The EC motor, characterized by its advanced electronic control and DC operation, enables the fan to achieve high efficiency and precise speed regulation. This technology is particularly beneficial in applications where energy savings and quiet operation are critical, such as in office buildings, hospitals, and cleanrooms. The forward-curved blade design ensures efficient air movement at lower static pressures, enhancing overall system performance.
Specifications：
Brand Name | YUTEC |
Impeller Material | Galvanized Metal Sheet |
Motor Type | BLDC External Rotor Motor |
Type of Protection | IP44 |
Insulation Class | Class B |
Speed Control | 0-10VDC/PWM |
Bearing | Ball Bearing |
Signal Output | FG |
Life Expectance | 50,000 Hours |
Electrical Protection | Locked Rotor Protection |
Reverse Polarity Protection | |
Over Voltage Protection | |
Soft Start |
Competitive Advantage:
1.Remote Monitoring and Control: Many EC fans are equipped with remote monitoring and control capabilities, allowing for real-time monitoring of fan performance and adjustment of settings from a remote location. This feature enhances operational efficiency and facilitates proactive maintenance.
2.Environmentally Friendly: EC fans contribute to environmental sustainability by reducing energy consumption and emissions. Their high efficiency and long lifespan also reduce the need for frequent replacements, minimizing waste generation.
3.Customizable Options: EC fans are available in a variety of sizes, configurations, and performance levels to meet the specific needs of different applications. This customization ensures optimal performance and compatibility with various systems.
